11
RQT9167
Before connection, turn off the mains for all connected equipment and read the appropriate operating
instructions.
Be sure to read the Caution for AC Mains Lead on page 3.

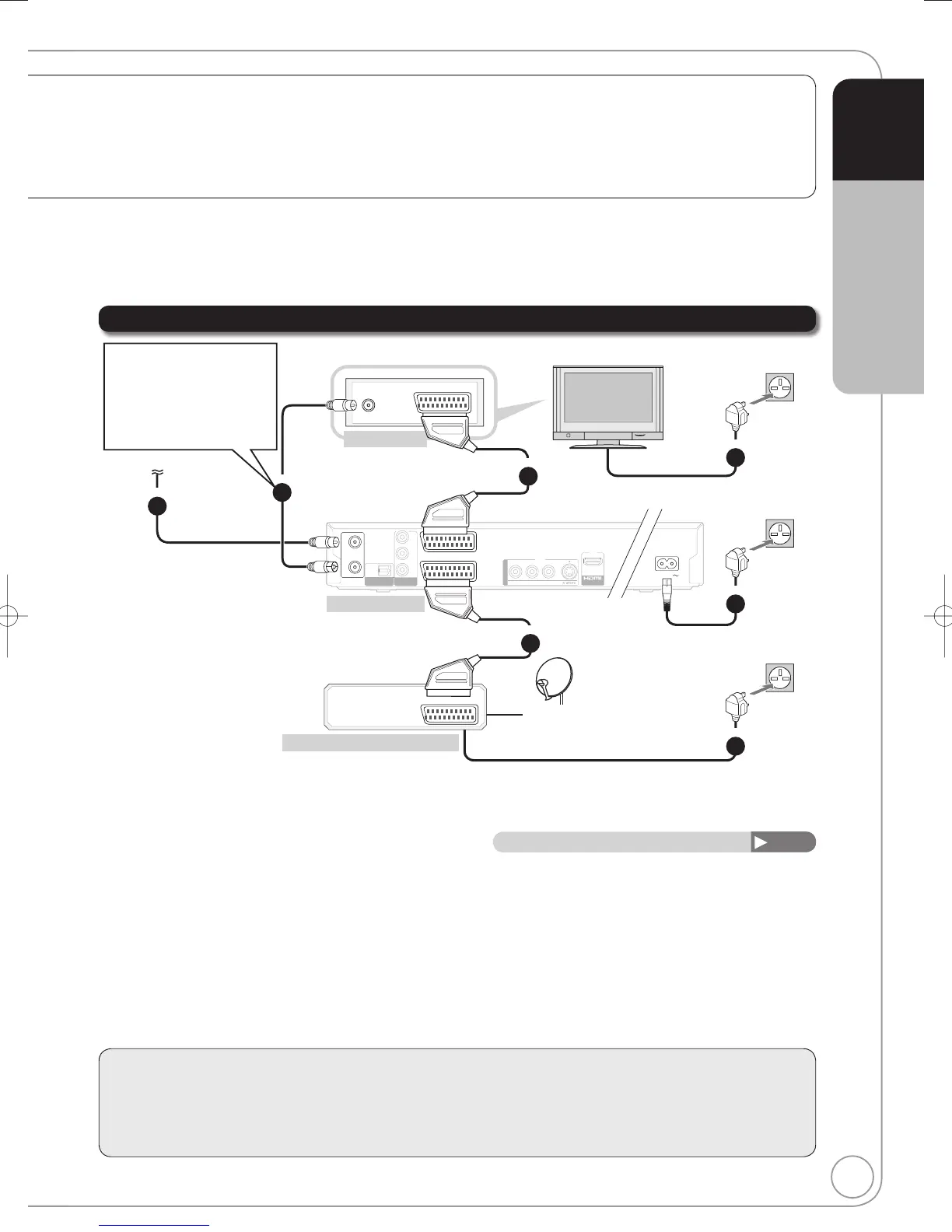

Adding a Satellite Receiver: Connecting to a Television and a Satellite Receiver
Connections other than the 21-pin Scart cable 12, 69
Aerial cable to the “RF IN” on the unit.
RF coaxial cable (included) from the “RF OUT” on the unit to the “RF IN” on the TV.
21-pin Scart cable from the “AV1 (TV)” on the unit to the “AV” on the TV.
21-pin Scart cable from the “AV” on the satellite receiver to the “AV2 (EXT)” on the unit.
AC mains lead (included) from the “AC IN~” on the unit, the TV and the satellite receiver to a
household mains socket.
After completing the above connections, proceed to the TV Tuning (¼ 13).
To view satellite programmes
Refer to “Watching Satellite Programmes” (¼ 18)
To record satellite programmes
Refer to “Recording from a Satellite Receiver” (¼ 27)
The RF coaxial cable cannot
be used for showing pictures
from the unit. The unit must
be connected using another
method, e.g. 21-pin Scart
cable to show pictures from the
unit on the television set.
To the aerial
To household
mains socket
To household
mains socket
To household
mains socket
satellite antenna
Quick Start Guide STEP 2
Using a fully wired 21-pin Scart cable
– You can use a variety of Q Link functions by connecting the unit to a Q Link compatible television (¼ 40).
– You can enjoy high-quality viewing by connecting the unit to an RGB compatible television.
“AV1 Output” in the Setup menu is set to “RGB 1 (without component)” or “RGB 2 (without component)”
(¼ 65).
– “AV2 Input” settings in the Setup menu (¼ 65).
