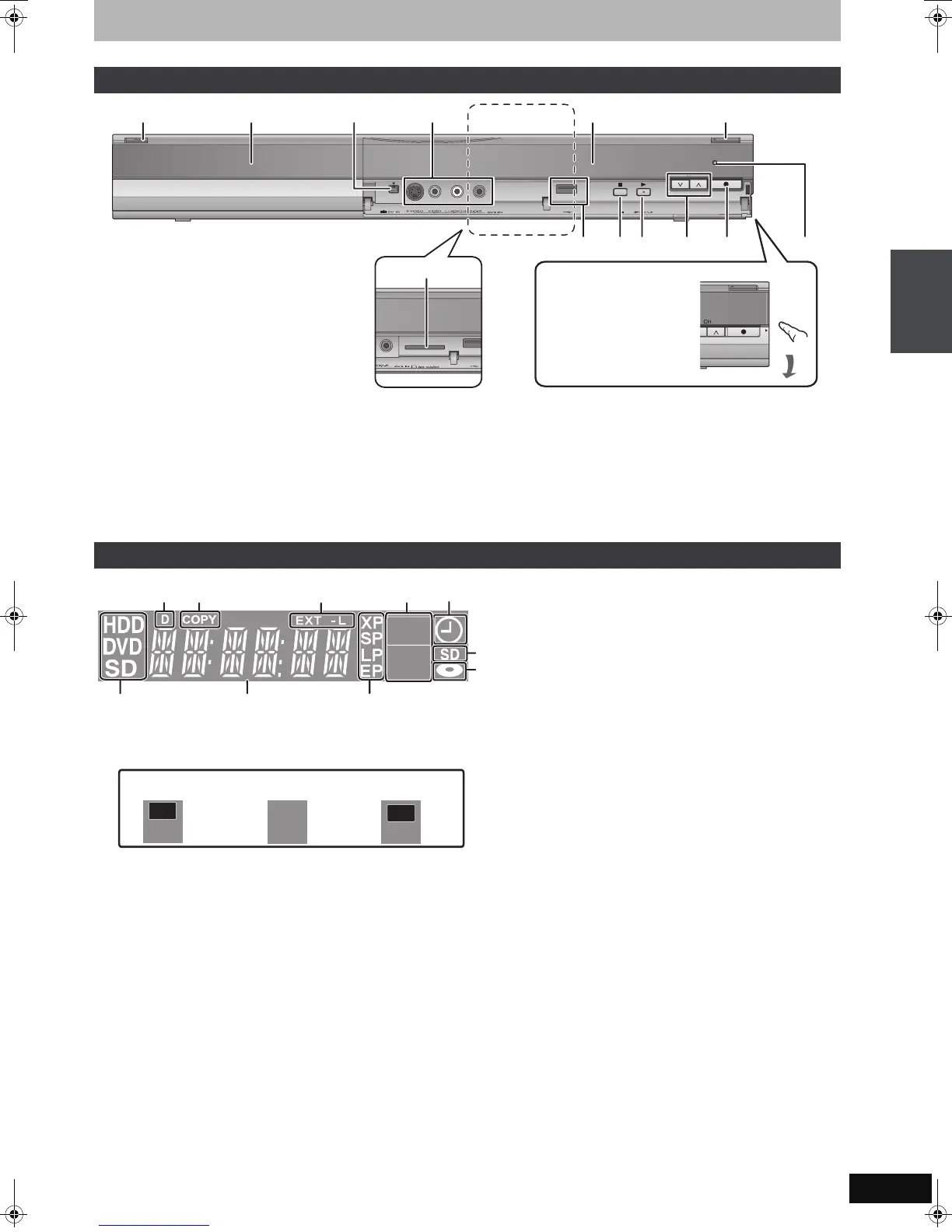

1Standby/on switch (Í/I) (➡ 10)
Press to switch the unit from on to standby mode or vice versa. In
standby mode, the unit is still consuming a small amount of power.
2Disc tray (➡ 15)
3Connection for digital video (DV) camcorder (➡ 25)
4Connection for VCR, camcorder etc. (➡ 25, 69)
5Display (➡ below)
6Open/close disc tray (➡ 15)
7USB port (➡ 15)
8Stop (➡ 18, 30)
9Start play (➡ 17)
:Channel select (➡ 18)
;Start recording (➡ 18)/Specify a time to stop recording (➡ 18)
<Remote control signal sensor
=[EX88] SD card slot (➡ 15)
Rear panel terminals (➡ 8, 9, 69, 70, 71)
5Timer recording indicator
6[EX88] SD card slot indicator
7Disc indicator
8Drive [HDD, DVD or SD ([EX88])] indicator
9Main display section indicator
:Recording mode indicator
≥Indicators for functions that this unit does not support will not light.
Main unit
OPEN
/
CLOSE
REC
OPEN
/
CLOSE
REC
[EX88]
Pull to flip down the front
panel.
The unit’s display
PLAY
PLAY
REC
REC
PLAY
REC
1 Digital broadcast indicator
Lights when the unit is receiving digital broadcast or TV Guide data.
2 Copying indicator
3 Linked timer recordings with external equipment indicator
Recording
indicator
Playback
indicator
Recording/Playback
indicator
4
[EX88]
Control reference guide
