70
RQT9079
Additional connections
≥To enjoy multi-channel surround sound DVD-Video, connect an
amplifier with Dolby Digital, DTS and MPEG decoders.
[Required]setting]
“Digital Audio Output” in the Setup menu (➡ 64)
≥When this unit is connected to an amplifier with an optical digital
audio cable and connected to a television with an HDMI cable, you
can enjoy the highest quality of audio from the disc by setting
“Digital Audio Output” to “Optical Only” in the Setup menu (➡ 65).
In this case audio is only output from the amplifier not the
television.
≥Before purchasing an optical digital audio cable (not included),
check the terminal shape of the connected equipment.
≥You cannot use DTS Digital Surround decoders not suited to DVD.
When connected to an HDMI compatible unit, an uncompressed digital audio and video signal is transmitted. You can enjoy high quality, digital
video and audio with just one cord. When connecting to an HDMI-compatible HDTV (High Definition Television), the output can be switched to
1080p, 1080i or 720p HD video.
≥Video sources converted to 1920k1080 resolution, while of high quality, will exhibit somewhat lower subjective image resolution than true,
native 1080p full-HD sources. See dealer for details.
≥Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover).
[Note]
≥If you are connecting to a TV that is only compatible with 2 channel audio output, audio with 3 channels or more will be down mixed (➡ 84) and
output as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.)
≥You cannot connect this unit to DVI devices that are incompatible with HDCP.
For units compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection that are equipped with a digital DVI input
terminal (PC monitors, etc.):
Depending on the unit, images may not display properly or at all when connecting with a DVI/HDMI switching cable. (Audio cannot be output.)
§
Information about the Decoder is for France, Italy, Spain and Switzerland only.

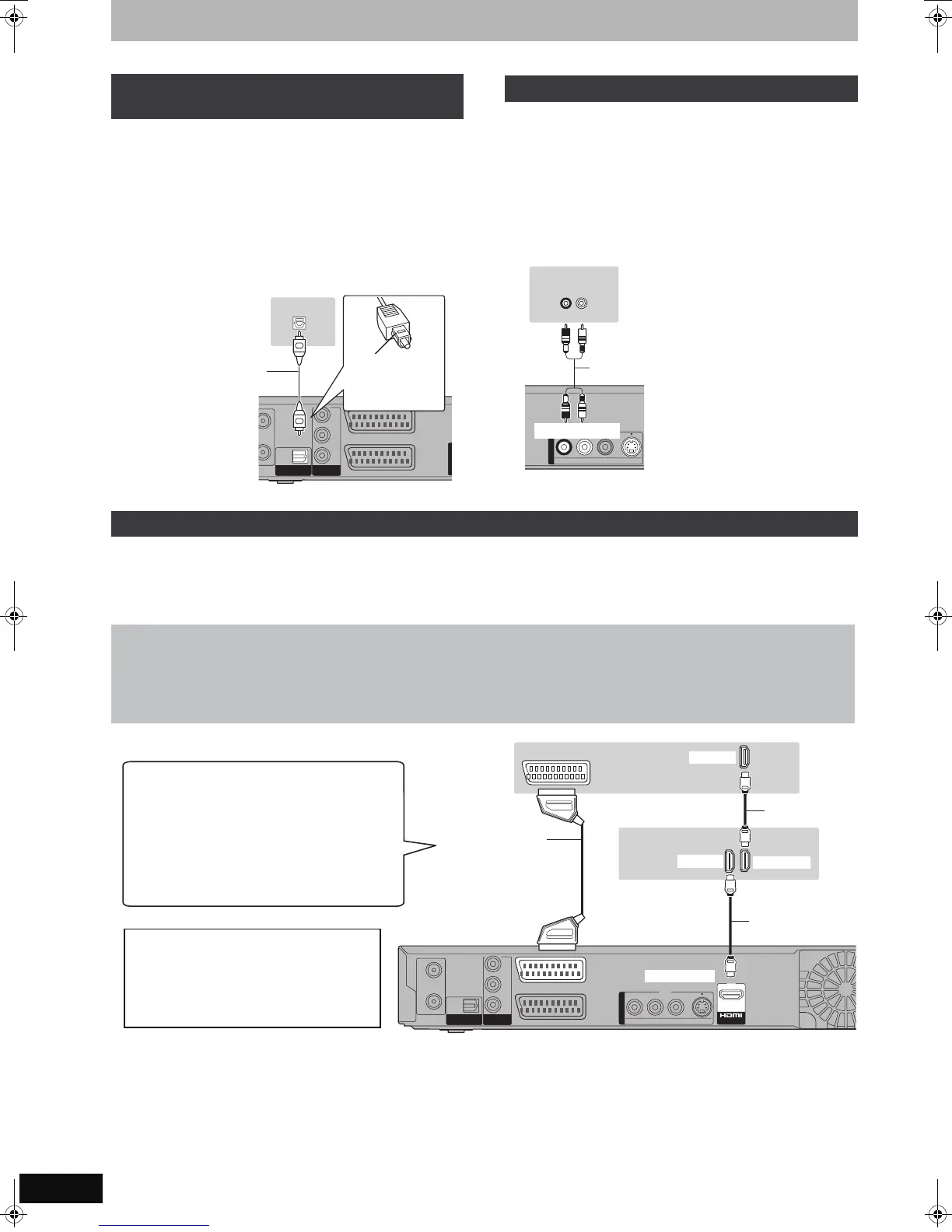

Connecting an amplifier with a digital
input terminal
AV2
(
EXT
)
AV1
(
TV
)
OPTICAL
DIGI
AL
UDIO OU
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
PR
PB
Y
OPTICAL IN
Optical digital audio cable
Do not bend sharply when
connecting.
This unit’s rear panel
Insert fully, with
this side facing
up.
Amplifier’s rear panel
Connecting a stereo amplifier
S VIDEOVIDEO
R-AUDIO-L
OUT
AUDIO IN
R L
Red White
Red White
Audio cable
This unit’s rear panel
Amplifier’s rear panel
Connecting with an HDMI compatible television and receiver
Regarding VIERA Link “HDAVI Control
TM
” function
When connecting with a Panasonic TV (VIERA) or a receiver equipped with the “HDAVI Control” function, linked operations would be
possible. [➡ 38, Linked operations with the TV (VIERA Link “HDAVI Control
TM
”/Q Link)]
≥Non-HDMI-compliant cables cannot be utilised.
≥It is recommended that you use Panasonic’s HDMI cable.
Recommended part number:
RP-CDHG10 (1.0 m), RP-CDHG15 (1.5 m), RP-CDHG20 (2.0 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc.
RF
IN
RF
OUT
AV2
(
EXT
)
AV1
(
TV
)
OPTICAL
DIGI
AL
UDIO OU
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
S VIDEOVIDEO
R-AUDIO-L
PR
PB
Y
OUT
A
V OU
T
HDMI AV OUT
HDMI IN
HDMI IN
HDMI OUT
AV
This unit’s rear panel
HDMI cable
HDMI cable
Fully wired
21-pin Scart cable
Television’s rear panel
Receiver’s rear
panel
Connecting with a Panasonic TV (VIERA)
If the 21-pin Scart cable is connected, the
following functions are available.
≥Download from the TV (➡ 38)
≥Direct TV Recording (➡ 38)
≥Watching pictures from digital satellite receiver
or analogue decoder
§
(In this case, make sure to switch the
television input to “AV”.)
[Required]setting]
≥Set “Digital Audio Output” to “HDMI and
Optical” (➡ 65).
(The default setting is “HDMI and Optical”.)
