Connection
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Select the connection pattern that matches your environment from pattern A–B. Confirm connections not listed below with your
dealer.
≥Refer to “Additional connections” (➡ 69) for connection using other terminals and connection with other equipment.
§
Information about the Decoder is for France, Italy, Spain and Switzerland only.
Using a 21-pin Scart cable
≥You can use a variety of Q Link functions by connecting the unit to a Q Link compatible television (➡ 38).
≥You can enjoy high-quality viewing by connecting the unit to an RGB compatible television (➡ 85).
[Required]setting] “AV1 Output” in the Setup menu (➡ 65)
When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when it is turned off
[approx. 2 W (Power Save mode)]
When “Power Save” is set to “On”, the “Quick Start” function does not work.

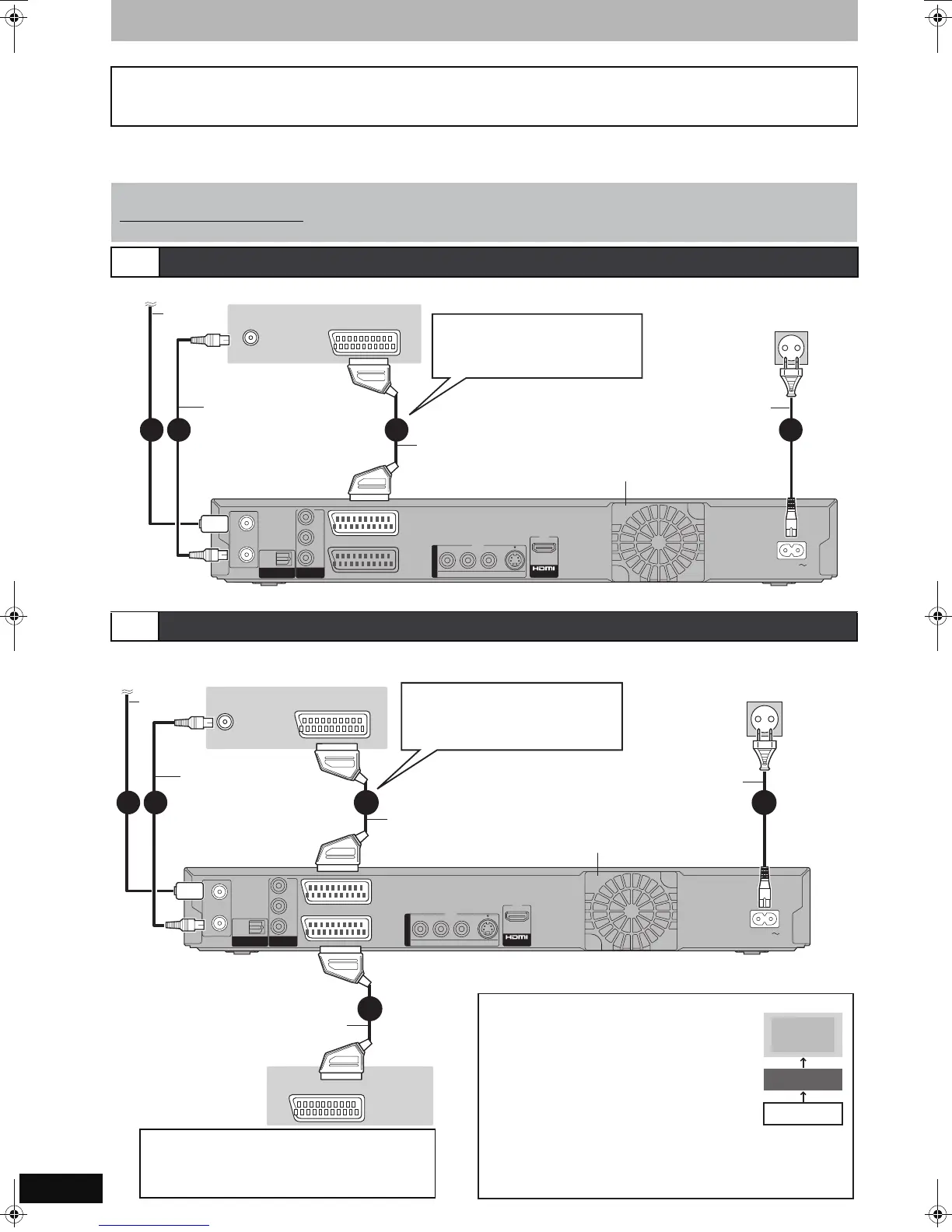

A
Connecting a television
B
Connecting a television and digital satellite receiver or analogue decoder
§
RF
IN
RF
OUT
AV2
(
EXT
)
AV1
(
TV
)
OPTICAL
DIGI
AL
UDIO OU
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
S VIDEOVIDEO
R-AUDIO-L
PR
PB
Y
AC IN
OUT
A
V OU
T
VHF/UHF
RF IN
AV
4
3
2
1 2
To the aerial Television’s rear panel
Aerial
cable
RF coaxial
cable
(included)
This unit’s rear panel
To household mains socket
(AC 220 to 240 V, 50 Hz)
Fully wired 21-pin
Scart cable
AC mains lead
(included)
Connect only after all other
connections are complete.
Cooling fan
Connecting a terminal other
than the 21-pin Scart terminal
(➡ 9, 69)
RF
IN
RF
OUT
AV2
(
EXT
)
AV1
(
TV
)
OPTICAL
DIGI
AL
UDIO OU
(PCM/BITSTREAM)
COMPONENT
VIDEO OUT
S VIDEOVIDEO
R-AUDIO-L
PR
PB
Y
AC IN
OUT
A
V OU
T
AV
5
4
3
AV
VHF/UHF
RF IN
2
1
2
To the aerial
Television’s rear panel
Aerial
cable
This unit’s rear panel
To household mains socket
(AC 220 to 240 V, 50 Hz)
Fully wired 21-pin
Scart cable
AC mains lead
(included)
Connect only after all other
connections are complete.
Digital satellite receiver or
analogue decoder’s
§
rear
panel
21-pin Scart cable
[Required]setting]
“AV2 Input” and “AV2 Connection
([For]France,[Italy,[Spain[and[Switzerland])” settings in
the Setup menu (➡ 66)
Cooling fan
Connecting a terminal other
than the 21-pin Scart terminal
(➡ 9, 69)
RF coaxial cable
(included)
Connect the unit directly to the television
If you connect the unit through an AV selector
or video cassette recorder to the television,
video signal will be affected by copyright
protection systems and the picture may not
be shown correctly.
≥When connecting to a television with a built-in VCR
Connect to the input terminals on the television side if there are
both television and VCR input terminals.
Te lev i s io n
VCR
This unit
DO NOT
