Panasonic Diga DMR-EZ17 User Manual

38
RQT8850
Note: The terminals on the rear of your TV may not appear as shown below.
Please read terminal labels carefully to ensure correct connections.
If your TV does not have AV IN terminals (➔ 41).

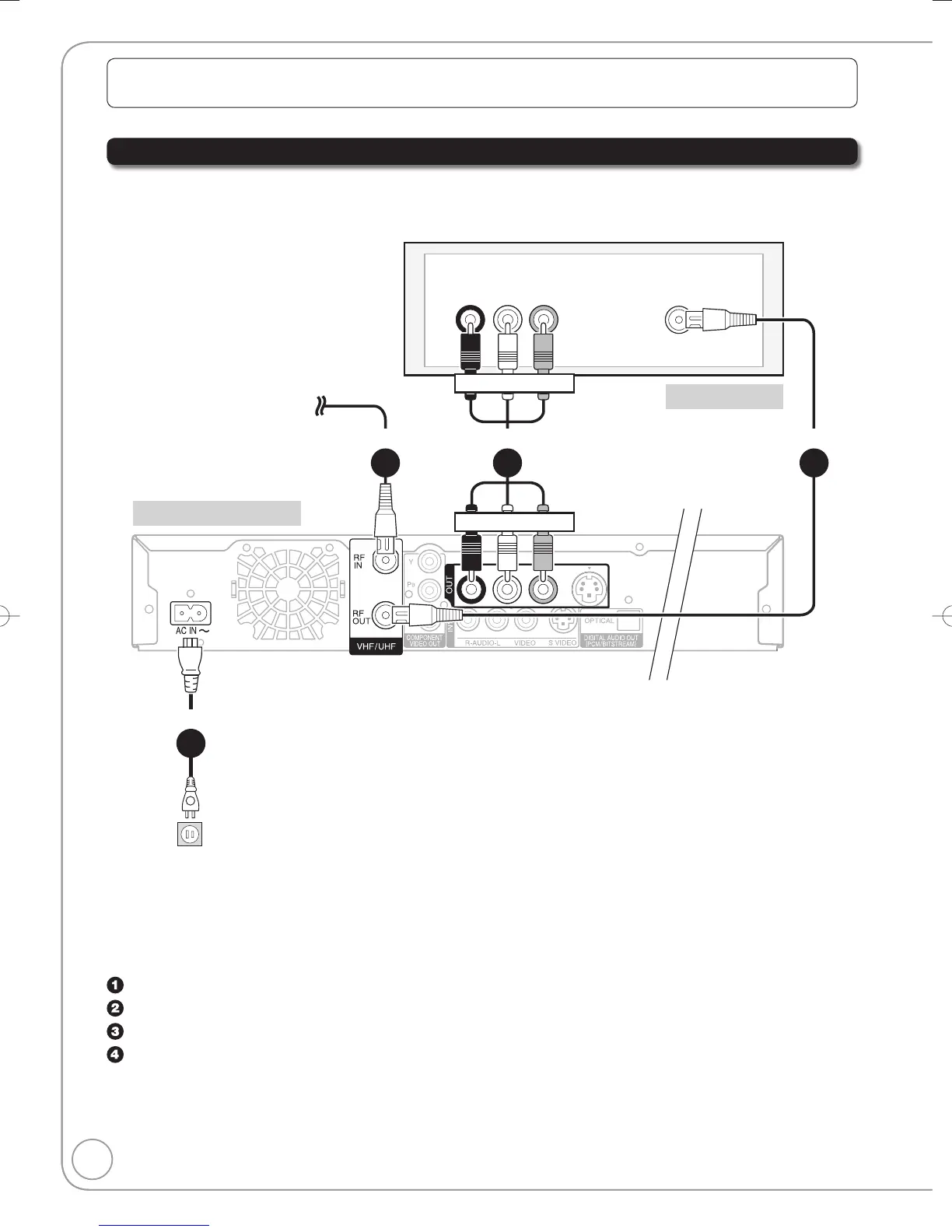

Connecting to a Television with Direct Cable or Antenna (No Cable Box or Satellite Receiver)
VHF/UHF
RF IN
Rear of TV
Rear of this unit
AUDIO IN
R L
VIDEO
IN
step
3
step
1
step
2
step
4
Red White Yellow
Red White Yellow
Cable from the wall or
antenna signal
To a household AC outlet
(AC 120V, 60 Hz)
Coaxial cable from the wall or antenna signal to the “RF IN” on the unit.
Coaxial cable (included) from the “RF OUT” on the unit to the “VHF/UHF RF IN” on the TV.
Audio/video cable (included) from the “OUT” on the unit to the “AV IN” on the TV.
AC power supply cord (included) from the “AC IN~” on the unit to a household AC outlet.
•
Basic Connection
RQT8850-P.indb38RQT8850-P.indb38 2007/01/2613:21:472007/01/2613:21:47
