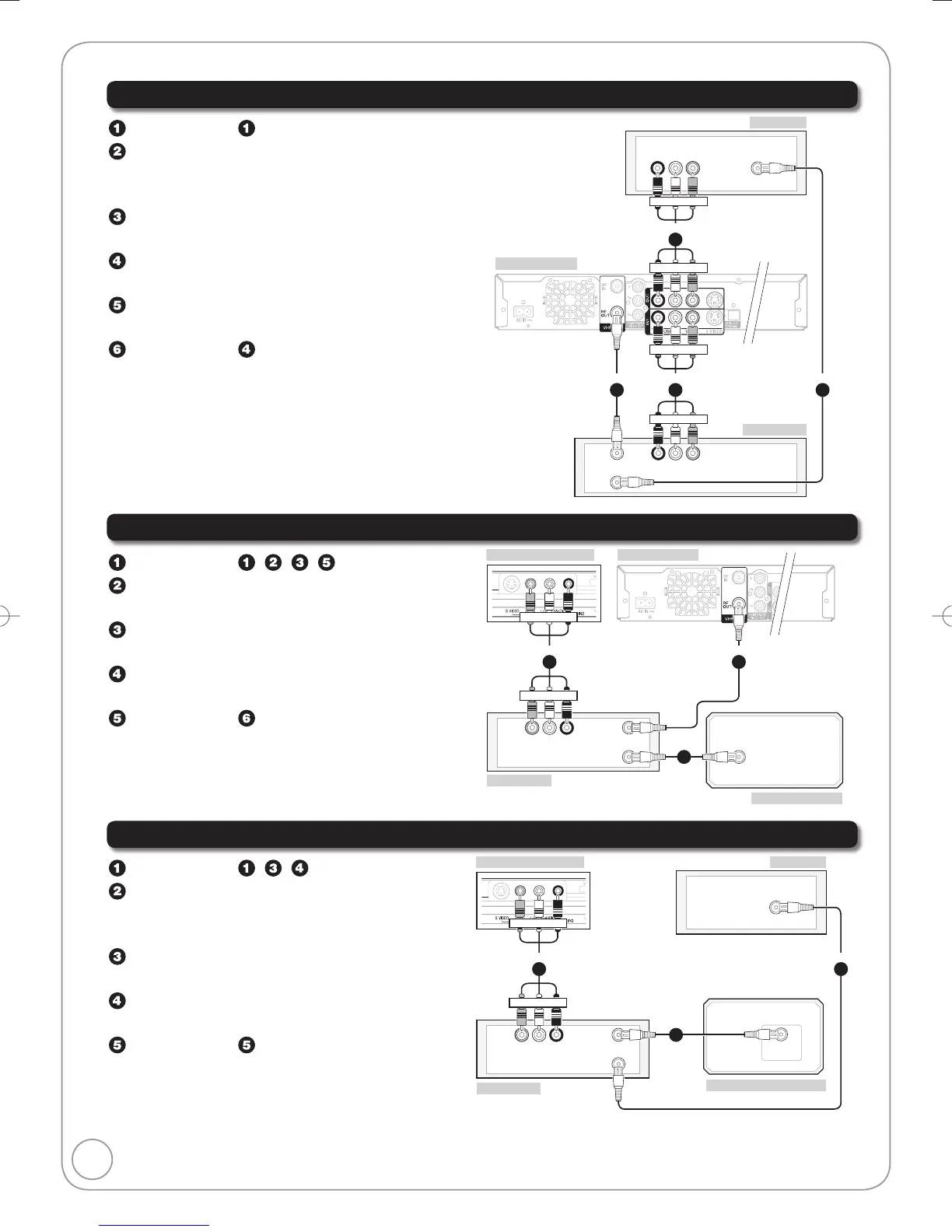

Adding a Video Cassette Recorder (VCR)
Additional coaxial cable and audio/video (AV) cable are required.
Connecting to a Television and a VCR (No Cable Box or Satellite Receiver)
Perform step on page 38.
Coaxial cable
(included)
from the “RF OUT”
on the VCR to the “VHF/UHF RF IN” on the
TV.
Audio/video cable
(included)
from the
“OUT” on the unit to the
“AV IN” on the TV.
Coaxial cable from the “RF OUT” on the unit
to the “RF IN” on the VCR.
Audio/video cable from the “IN1” on the
unit to the “AV OUT” on the VCR.
Perform step on page 38.
AUDIO OUT
R L
VIDEO
OUT
RF IN
RF OUT
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
step
2
step
4
step
5
Red White Yellow
Red White Yellow
Rear of TV
Rear of this unit
Rear of VCR
AUDIO IN
R L
VIDEO
IN
step
3
Red White Yellow
Red White Yellow
Connecting to a Television, a Cable Box and a VCR
Perform step , , , on page 39.
Coaxial cable from the “RF OUT” on the unit
to the “RF IN” on the VCR.
Coaxial cable from the “RF OUT” on the
VCR to the “RF IN” on the cable box.
Audio/video cable from the “AV OUT” on
the VCR to the “
IN2
” on the unit.
Perform step on page 39.
AUDIO OUT
L R
VIDEO
OUT
RF IN
RF OUT
RF IN
step
4
Yellow White Red
Yellow White Red
step
2
step
3
Rear of VCR
Rear of Cable Box
Rear of this unit This unit’s front panel
Connecting to a Television, a Satellite Receiver and a VCR
Perform step , , on page 40.
Coaxial cable
(included)
from the “RF OUT”
on the satellite receiver to the “RF IN” on
the VCR.
Coaxial cable from the “RF OUT” on the
VCR to the “VHF/UHF RF IN” on the TV.
Audio/video cable from the “AV OUT” on
the VCR to the “
IN2
” on the unit.
Perform step on page 40.
RF OUT
VHF/UHF
RF IN
AUDIO IN
R L
VIDEO
IN
step
3
Rear of VCR
Rear of Satellite Receiver
Rear of TVThis unit’s front panel
AUDIO OUT
L R
VIDEO
OUT
Yellow White Red
Yellow White Red
step
4
RF IN
RF OUT
step
2
