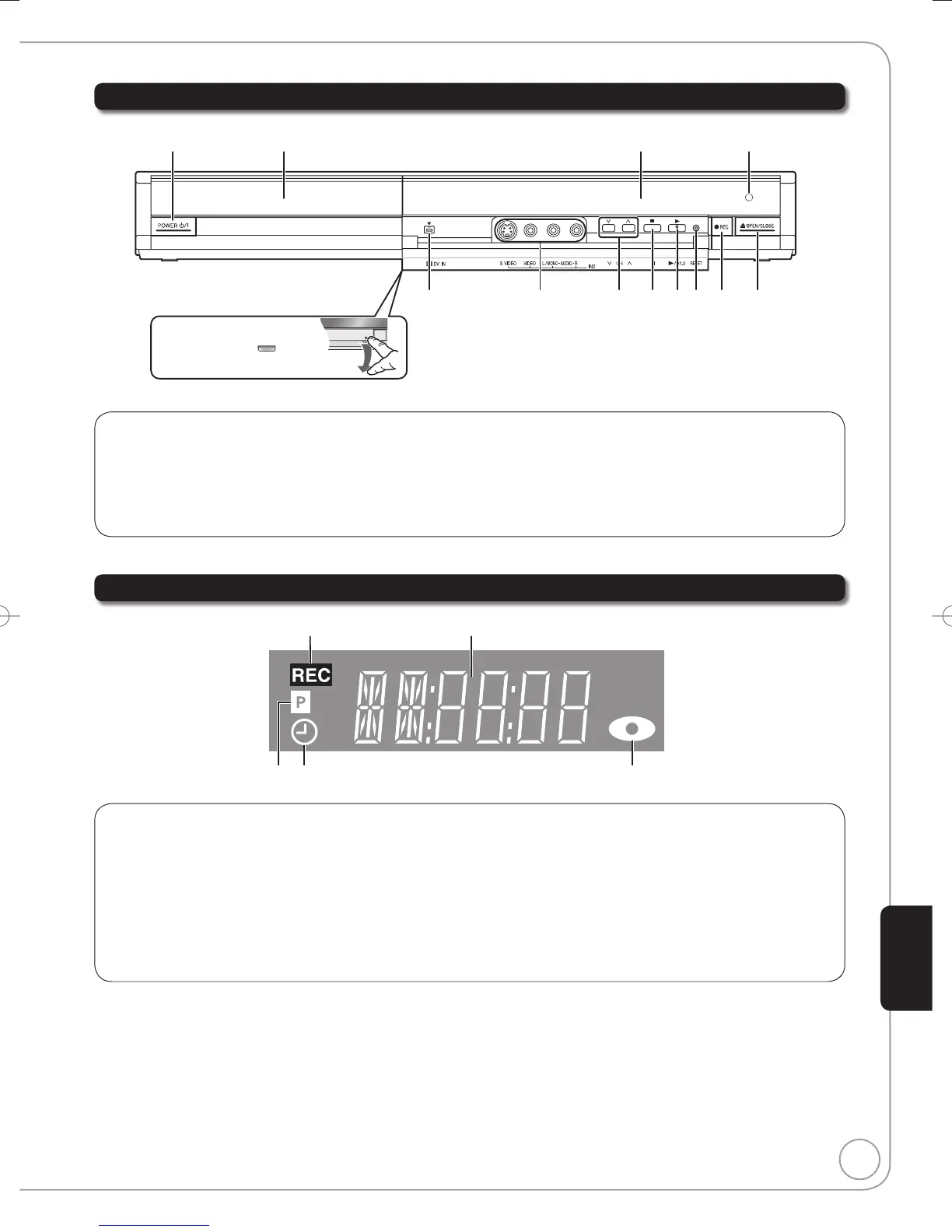

Main Unit
The unit’s display Disc tray
Remote control
signal sensor
1
2 3 45678 9
Opening the front panel
Press down on the part
with your finger.
1
POWER on/off button (POWER ^/I) ........... (➔ 6)
Press to switch the unit from on to standby mode or vice versa.
In the standby mode, the unit is still consuming a small amount
of power.
2
Connector for a digital video (DV)
camcorder ................................................. (➔ 23)
3
IN2 input terminals (IN2) .......................... (➔ 22)
•
4
Channel Select ........................................... (➔ 6)
5
Stop button ............................................. (➔ 6, 7)
6
Play/✕1.3 button ......................................... (➔ 6)
7
Reset button ............................................. (➔ 55)
8
Start recording ............................................ (➔ 7)
9
Disc tray open/close button ........................ (➔ 6)
The Unit’s Display
12
345
1
Recording indicator
2
Main display section
3
Disc indicator
This indicator lights up when a disc that is supported by this
unit is inserted.
4
Scheduled recording indicator (➔ 8
)
On:
When a scheduled recording program is registered and a
recordable disc is inserted.
Flashes:
The scheduled recording indicator flashes when the unit cannot
go to scheduled recording standby (e.g. there is no disc, etc).
It does not flash if Quick Start is off.
5
Progressive indicator
This indicator lights up when you select “On” in “Progressive”
(➔ 31).
