Panasonic DMC-FT1EB - How to Define the Model Suffix

11
3.7. How to Define the Model Suffix
There are eight kinds of DMC-FT1/TS1, regardless of the colours.
• a) DMC-FT1 (Japan domestic model.)/SG
• b) DMC-TS1P/PC
• c) DMC-FT1EB/EF/EG/EP
• d) DMC-FT1EE
• e) DMC-TS1GT
• f) DMC-FT1GN
• g) DMC-TS1GK
• h) DMC-FT1GC/GJ, DMC-TS1GH/PU
What is the difference is that the “INITIAL SETTINGS” data which is stored in Flash ROM mounted on Main PCB.

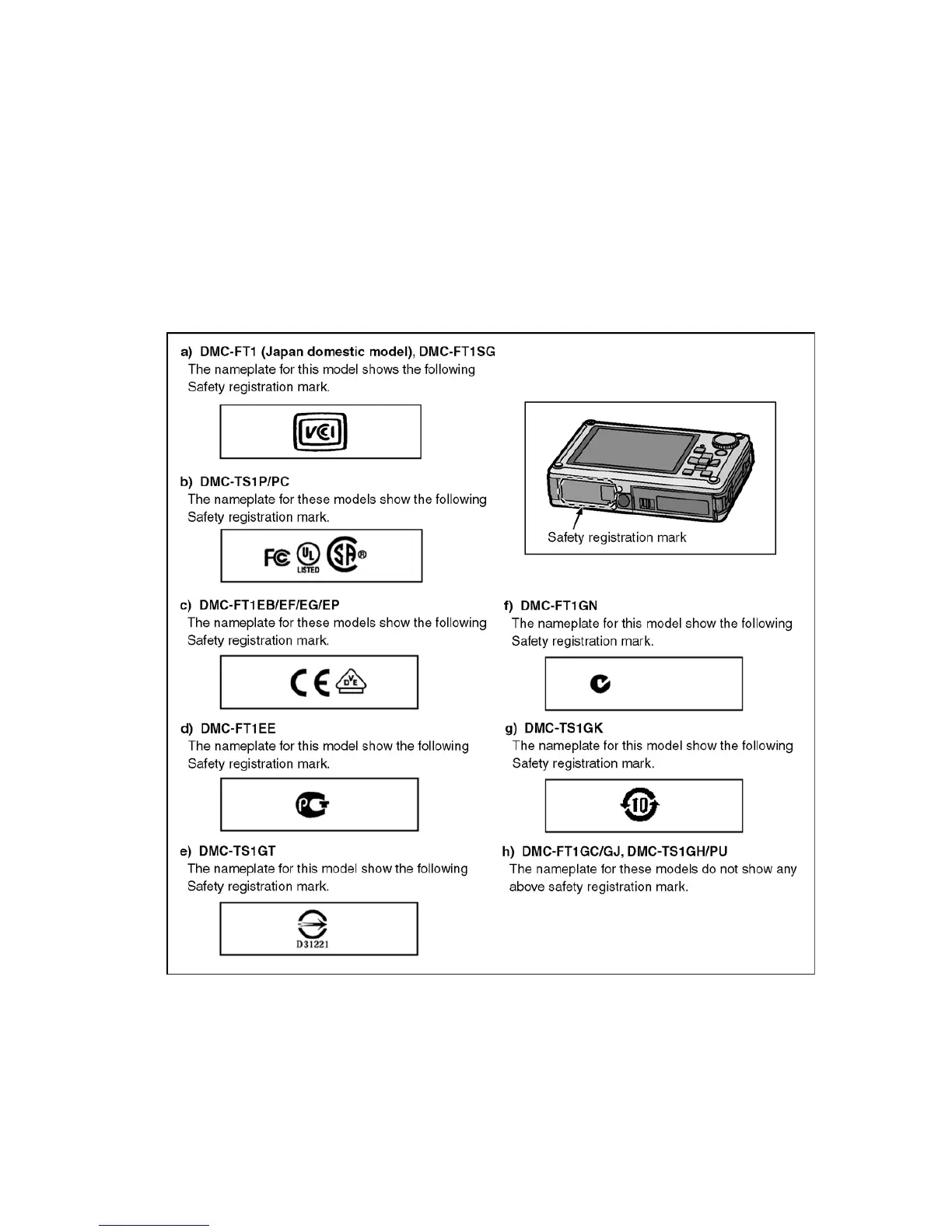

3.7.1. Defining methods
To define the model suffix to be serviced, refer to the nameplate which is putted on the bottom side of the Unit.
NOTE:
After replacing the MAIN PCB, be sure to achieve adjustment.
The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-AVC” web-site in
“TSN system”, together with Maintenance software.
