10 Measurements and Adjustments

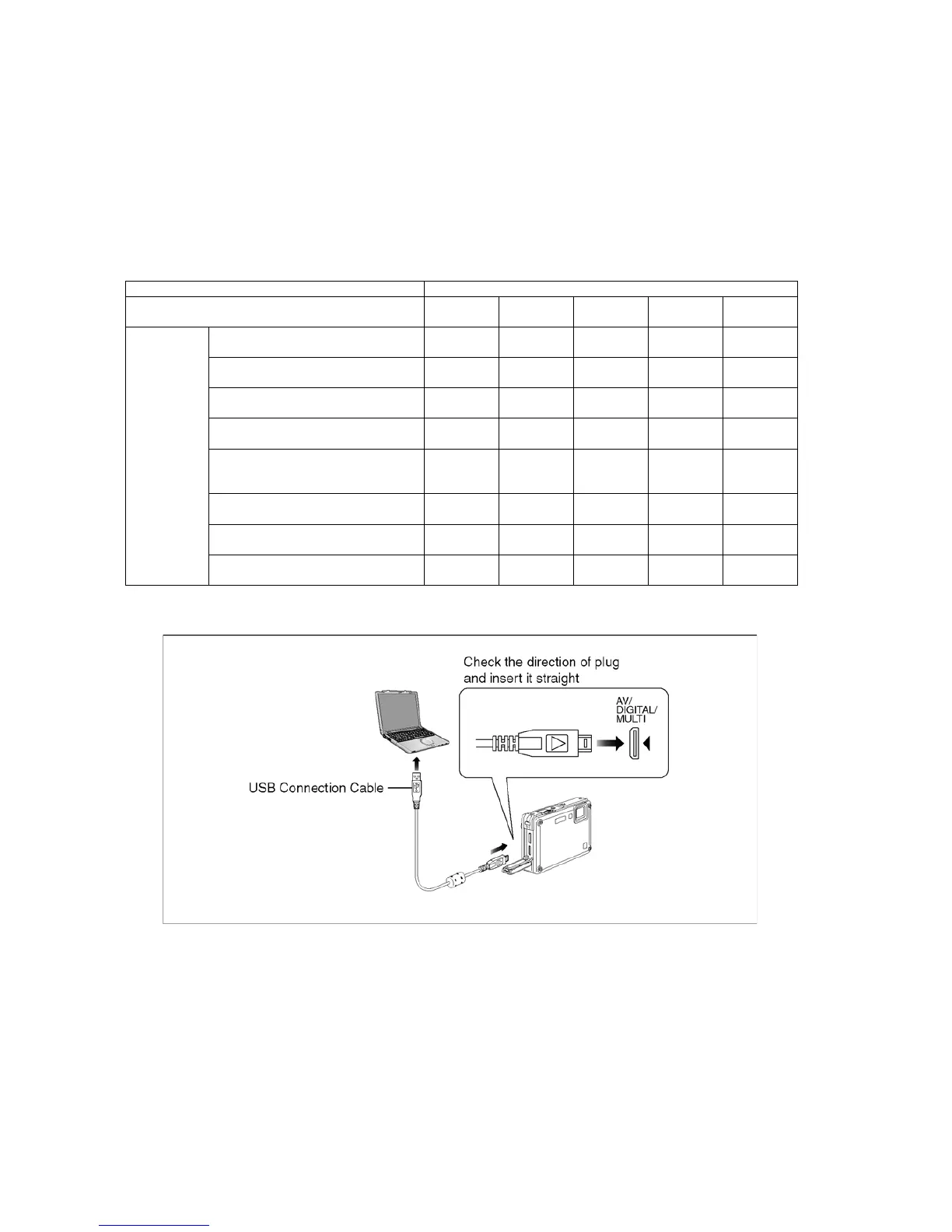

10.1. Matrix Chart for Replaced Part and Necessary Adjustment
The relation between Replaced part and Necessary Adjustment is shown in the following table.
When concerned part is replaced, be sure to achieve the necessary adjustment(s).
As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software.
The Adjustment software is available at “TSN Web-site”, therefore, access to “TSN Web-site” at “Support Information from NWBG/
VDBG-AVC”.
NOTE:
After adjustments have been terminated, make sure to achieve “INITIAL SETTINGS”.
NOTE:
*There is no LCD and EVF adjustment in this model.
Replaced Part
Adjustment Item Main P.C.B. VENUS
(IC6001)
Flash-ROM
(IC6002)
Lens Part
with CCD
LCD/EVF
Camera
Section
OIS hall element adjustment
(OIS)
OOOO -
Back focus adjustment
(BF)
OOOO -
Shutter adjustment
(SHT)
OOOO -
ISO sensitivity adjustment
(ISO)
OOOO -
AWB adjustment
High brightness coloration inspection
(WBL)
OOOO -
Linearity adjustment
(LIN)
OOOO -
CCD white scratch compensation
(WKI)
OOOO -
CCD black scratch compensation
(BKI)
OOOO -
