Replacing the waterproof packing

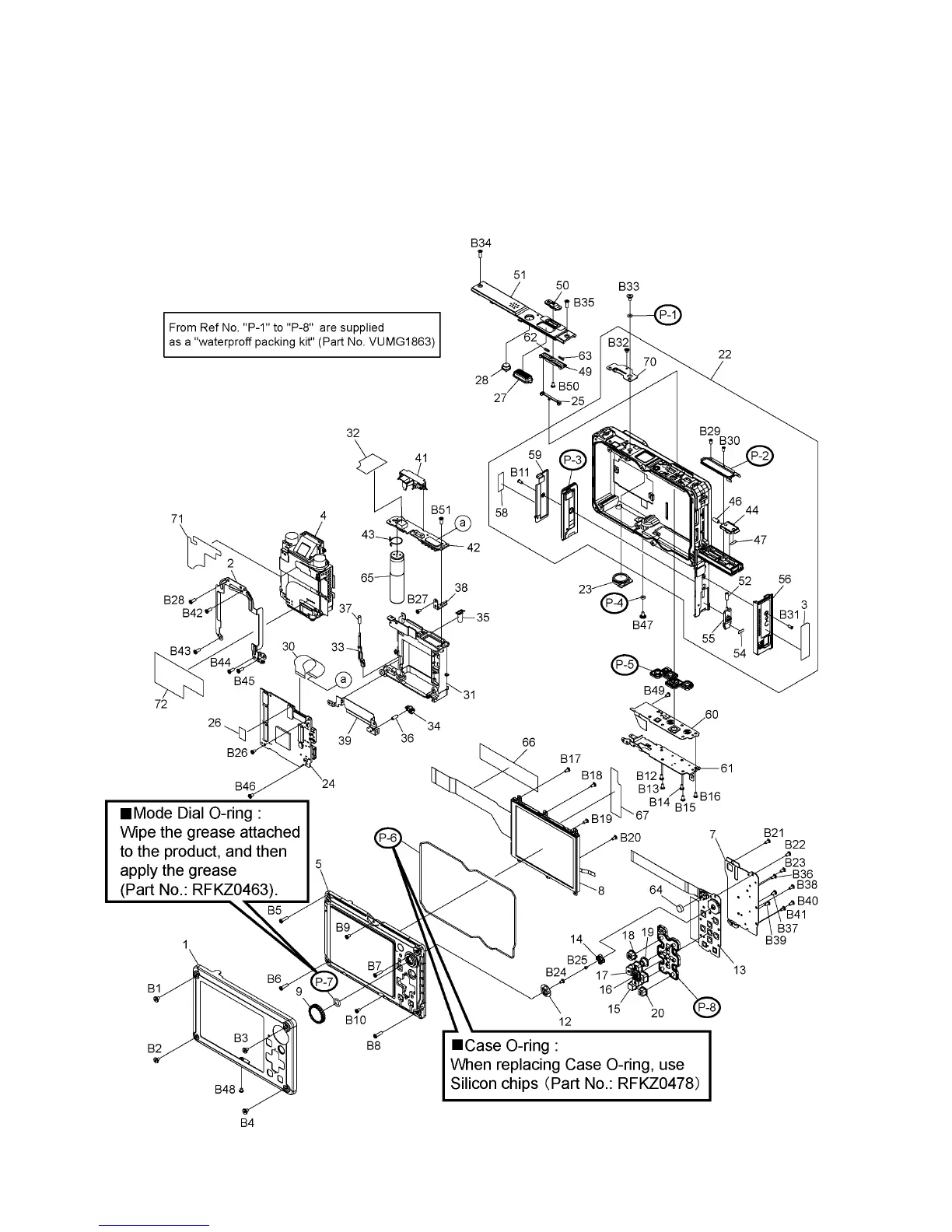

• The location of waterproof packing are shown at right. (7 types, 8 packings in total)
• Waterproof packings are supplied as Waterproof packing kit (Part No.: VUMG1863).
<Note for replacement>
• Do not touch the waterproof packings directly by the hand.
• Do not perform cleaning of waterproof packings by the solvent of alcohol etc. or by blowing air.
• Take care not to put any foreign objects (garbage and dust).
• Use the silicon chips (Prt No.: RFKZ0478) when replacing the Case O-ring.
• When replacing the mode dial O-ring, wipe the grease attached to the product first, then apply the grease (Part No.: RFKZ0463).
