41

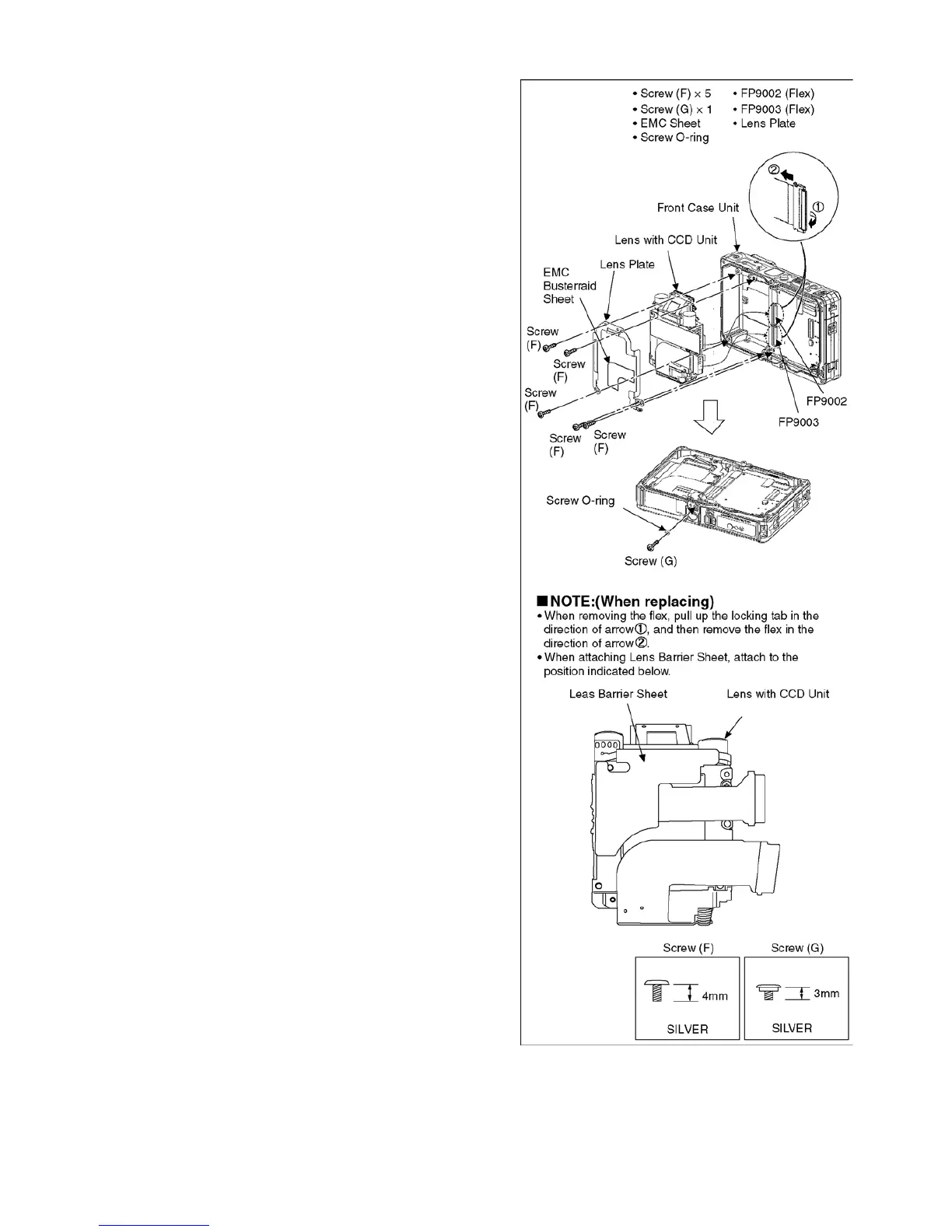

9.3.4. Removal of Lens with CCD Unit
NOTE: (When Disassembling/Assembling)
1. When dust stuck, use air-Blower to blow off the dust.
2. Do not touch the surface of lens by your hand.
3. Use Lens Cleaning KIT; VFK1900BK (Only supplied as
10 set/Box) is available as Service Aid.
Fig. D6
To Next Page
