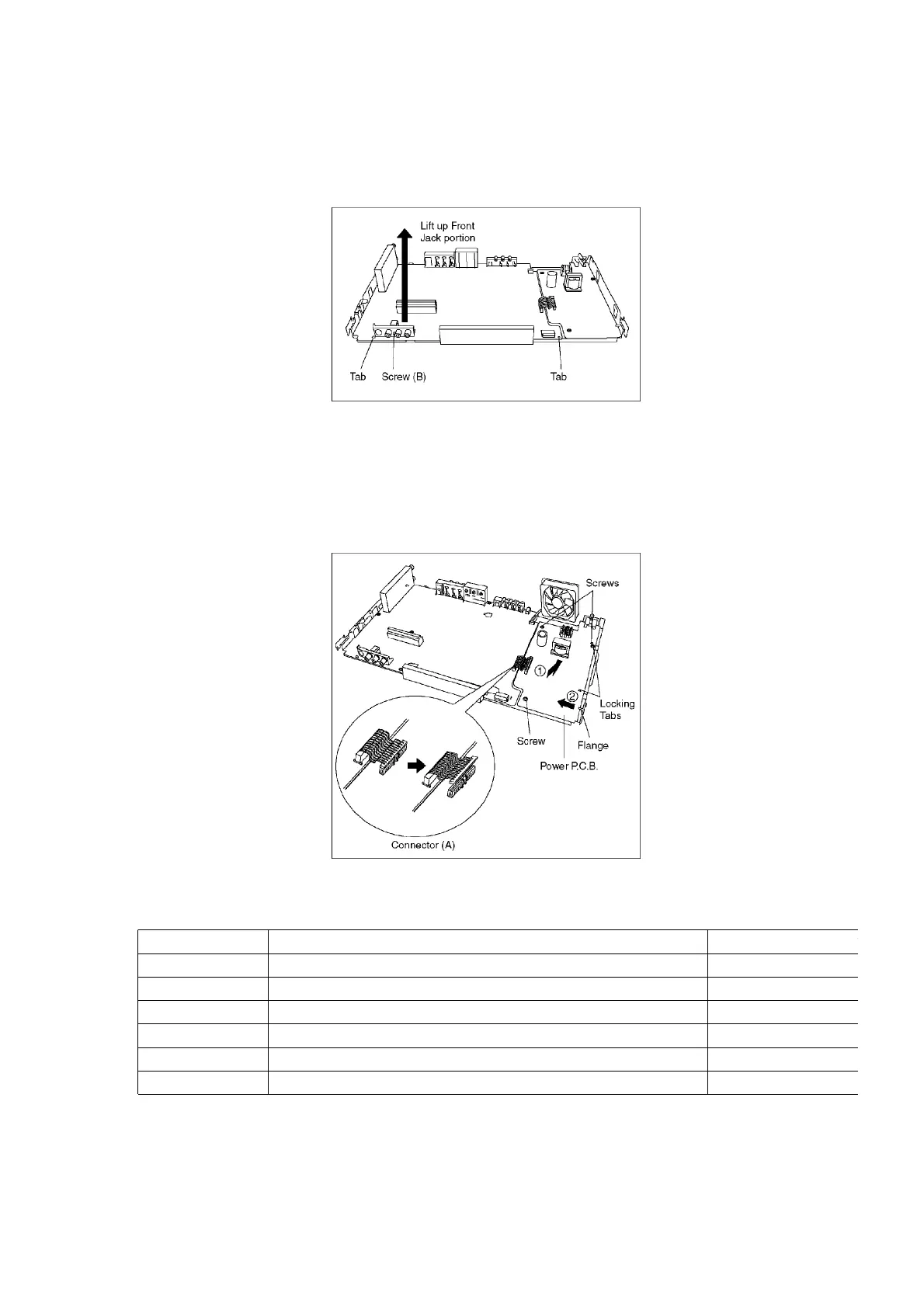

2. Remove a Screw (B) and lift up Front Jack portion of Main P.C.B.
slightly so to unlock Tab to remove Main P.C.B..
11.10. Power P.C.B.
1. Remove 3 Screws and Connector (A).
2. Lift up Power P.C.B. a little so to unlock 2 Tabs and slide Power
P.C.B. so to unlock Flange to remove Power P.C.B.
12. Service Fixture and Tools
Part Number Description
RFKZ0125 Extension FFC (Digital P.C.B. - DVD-RAM Drive / 40 Pin) Same as E50 series
RFKZ0168 Extension Cable (Main P.C.B. - Fan / 3 Pin) Same as E50 series
RFKZ0197 Extension Cable (Main P.C.B. - DVD-RAM Drive / 8 Pin) New
RFKZ0214 Extension Cable (MainP.C.B. - Digital P.C.B. / 88 Pin) New
RFKZ0215 Extension Cable (MainP.C.B. - Front (R) P.C.B. / 12 Pin) New
RFKZ0216 Extension Cable (MainP.C.B. - Power P.C.B. / 23 Pin) New
NOTE:
