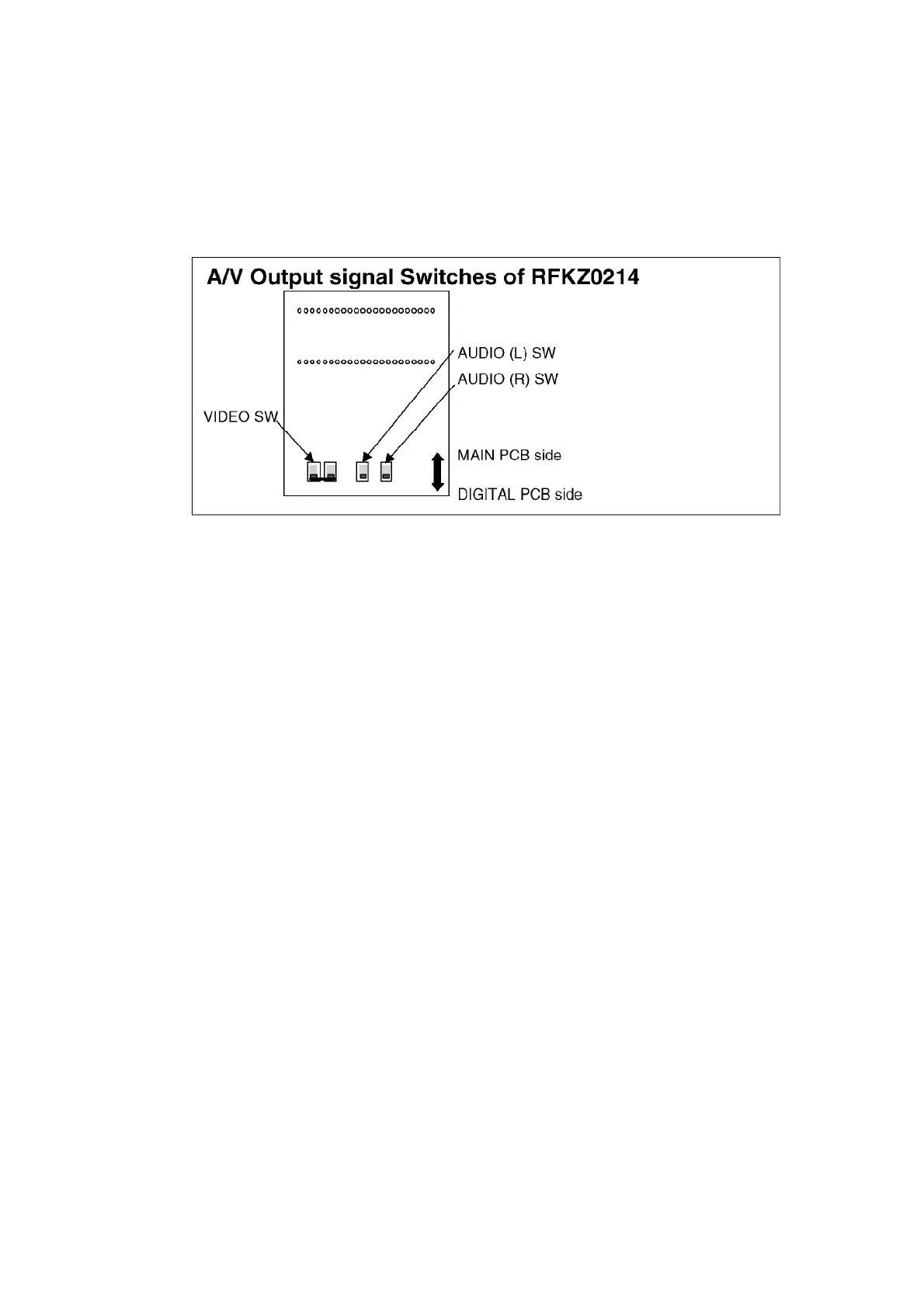

Extension Cable RFKZ0214 has A/V Output Signal switches.
Output signals can be switched from MAIN PCB side or DIGITAL PCB side.
When check MAIN PCB, turn switches to MAIN PCB side.
When check DIGITAL PCB, turn switches to DIGITAL P.C.B. side.
13. Service Positions
Note:
For description of the disassembling procedure, see the section 11.
13.1. Checking and Repairing of Power P.C.B.
31
To Next Page
