12.1. (VHS) Self-Diagnosis Functions
This model has a self-diagnosis and display function. If the VHS section detects trouble during
installation or during use, one of the following Error Codes will automatically appear in the
display on VHS side. Error Codes are displayed in the formof a single English letter followed by
two numbers, as for example "H01".
Note:
1. The indication "U" is displayed on the FIP while power remains on.

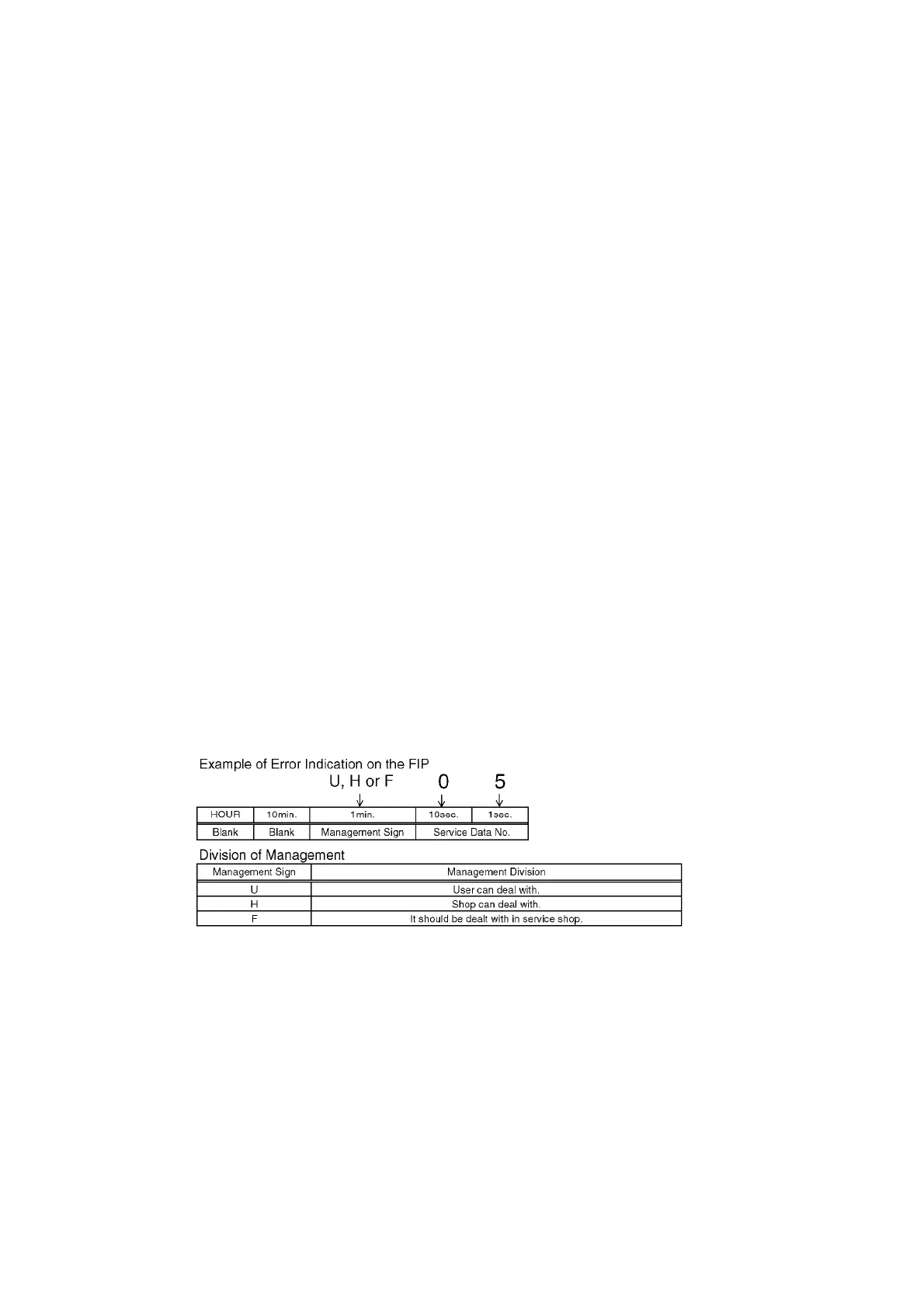

2. The indication "H" or "F" is displayed on the FIP, and the power is
automatically turned off. When the power is turned on again, the
Error indication code will disappear and the unit will return to
normal display mode (either clock or counteris displayed).
3. This Error indication code will be stored in the microprocessor
even after the AC plug being disconnected.
The two-digit number portion of the stored Error indication code
can be re-displayed in "second" display portion (the last 2 digits of
the FIP) by placing the unit is Service Mode Number 2 When
turning on Service Data Display as for example "01"or "02" etc. If a
second error occurs, the most recent error will be displayed and
stored until 5 self-diagnosis histories in maximum.
4. To erase the stored Error Code data, Press FF and EJECT buttons
on VCR simultaneously for over 5 seconds in Service Mode 2.
Error Number at a glance
31
