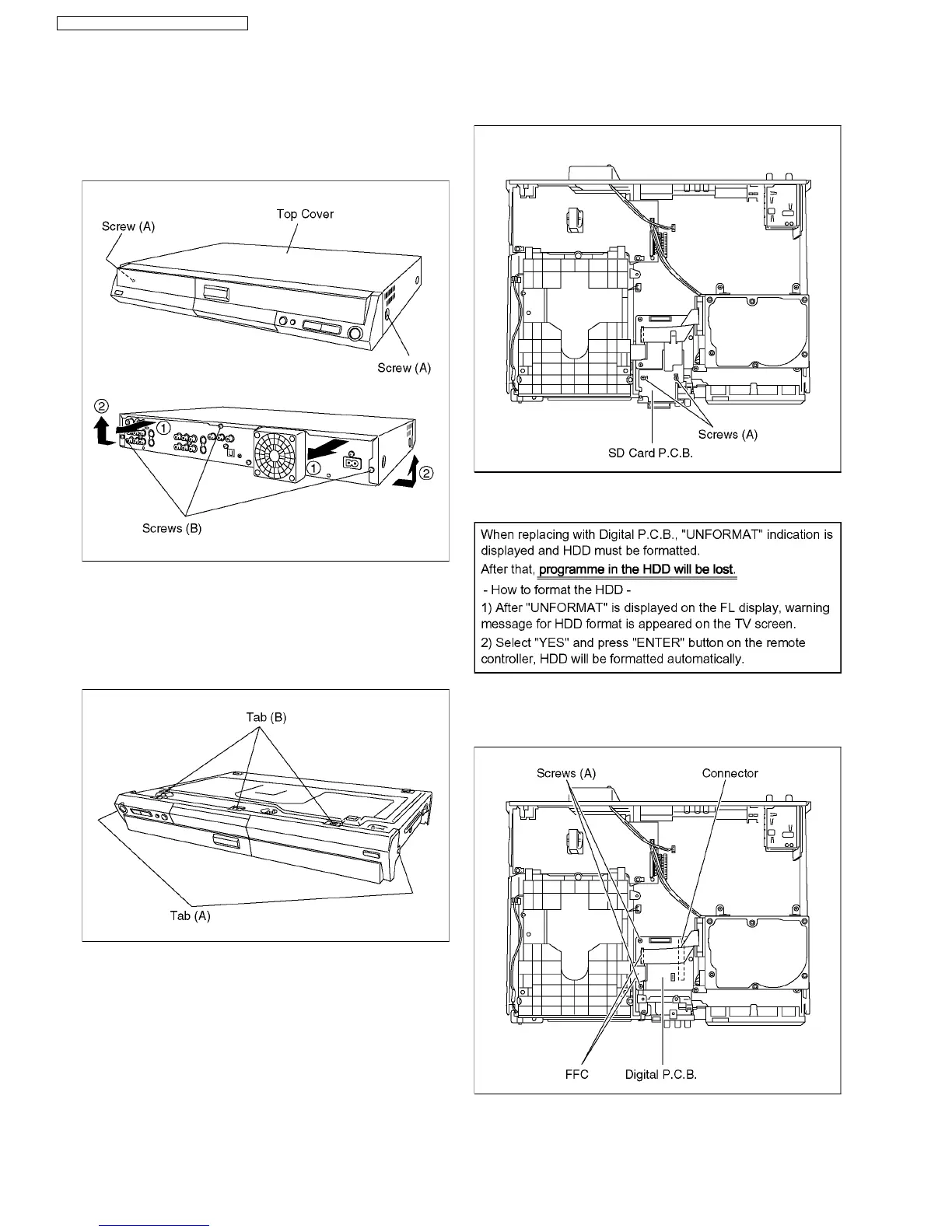

12.3. Top Cover
1. Remove the 2 screws (A) and 3 screws (B).
2. Slide Top Cover rearward and open the both ends at rear
side of the Top Cover a little and lift the Top Cover in the
direction of the arrows.
12.4. Front Panel
1. Unlock 2 tabs (A) and 3 tabs (B) in this order to remove
Front Panel.
(The tab (A) and (B) should be unlocked at the same time,
respectively.)
12.5. SD Card P.C.B.
1. Remove 2 Screws (A) to remove SD Card P.C.B.
12.6. Digital P.C.B.
1. Remove 2FFCs and 2 Screws (A).
2. Lift up Digital P.C.B. slightly so to disconnect Connector to
remove Digital P.C.B.
24
DMR-EH60PC / DMR-EH60PL / DMR-EH60GT
