9.4. Top Case

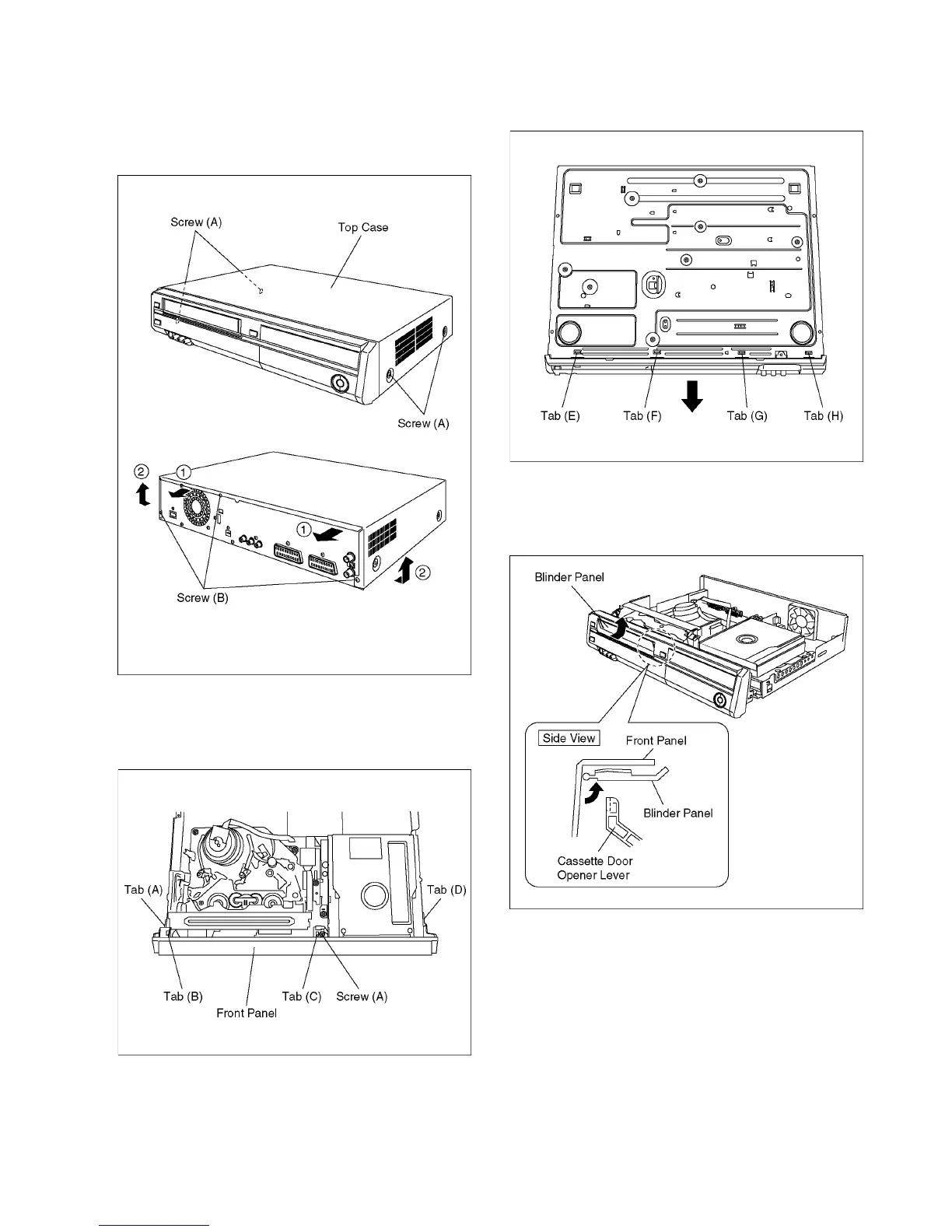

1. Remove 4 Screws (A) and 3 Screws (B).
2. Slide Top Case rearward and open the both ends at rear
side of the Top Case a little and lift the Top Case in the
direction of the arrows.
9.5. Front Panel
1. Remove one Screw (A).
2. Unlock 4 tabs in (A) - (D) turn.
3. Make the unit turn inside out, push the tabs (E) - (H) by
(-) screwdriver while pulling Front Panel in the direction of
arrow.
Note:
When attaching Front Panel, in order to hook Cassette Door
Opener Lever to Blinder Panel, push up Blinder Panel in the
direction of arrow and insert a Front Panel.
