Panasonic DMR-EZ49VEB

38

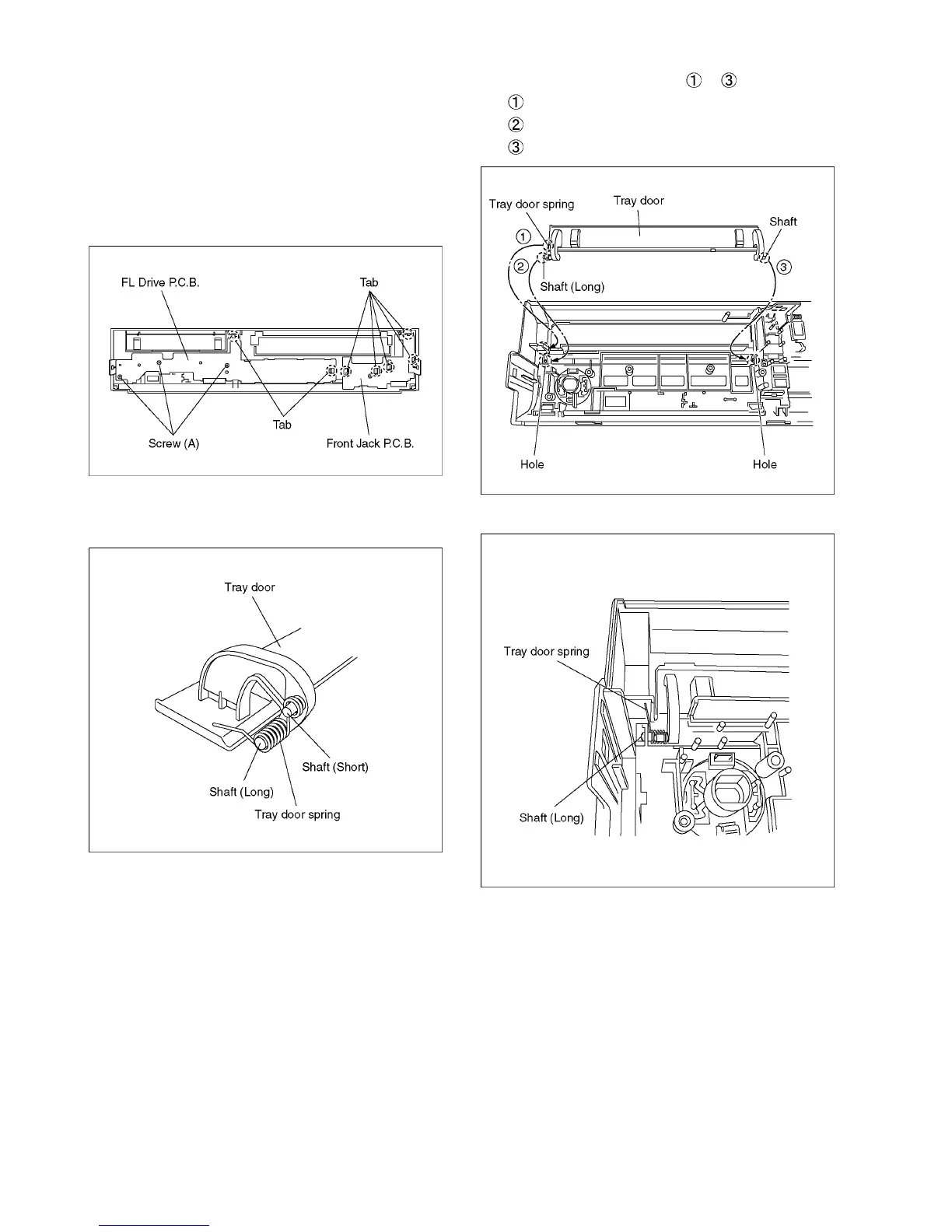

9.6. Front Jack P.C.B., FL Drive
P.C.B.
9.6.1. Front Jack P.C.B.
1. Remove 5 tabs to remove Front Jack P.C.B.
9.6.2. FL Drive P.C.B.
1. Remove 3 Screws (A) and 2 tabs to remove FL Drive
P. C. B.
9.6.3. How to assemble Tray door
1. Attach Tray door spring to Tray door.
2. Attach Tray door in order from to .
: Put the Tray door spring on the Front Panel.
: Insert the shaft in the hole.
: Insert the shaft in the hole.
3. Confirm the Tray door spring is attached as following.
