Panasonic DMR-EZ49VEB

S-3
REF No. PIN No. REC PB EE
IC4501 1 - - -
IC4501 2 - - -
IC4501 3 - - -
IC4501 4 - - -
IC4501 5 - - -
IC4501 6 2.5 2.5 2.5
IC4501 7 2.5 2.5 2.5
IC4501 8 - - -
IC4501 9 0 0 0
IC4501 10 0 0 0
IC4501 11 0 0 0
IC4501 12 2.1 2.1 2.1
IC4501 13 0.1 0.1 0.1
IC4501 14 0.1 0.1 0.1
IC4501 15 0.1 0.1 0.1
IC4501 16 2.5 2.5 2.5
IC4501 17 0.5 0.5 0.5
IC4501 18 2.5 2.5 2.5
IC4501 19 2.5 2.5 2.5
IC4501 20 2.1 2.1 2.1
IC4501 21 2.1 2.1 2.1
IC4501 22 2.1 2.1 2.1
IC4501 23 0 0 0
IC4501 24 2.1 2.1 2.1
IC4501 25 5 5 5
IC4501 26 2.1 2.1 2.1
IC4501 27 0 0 0
IC4501 28 4.3 4.3 4.3
IC4501 29 1.8 3.7 3.7
IC4501 30 1.8 3.7 3.7
IC4501 31 0 1.1 1.1
IC4501 32 2.5 2.5 2.5
IC4501 33 2.5 2.5 2.5
IC4501 34 0.8 0.8 0.8
IC4501 35 2.5 2.5 2.5
IC4501 36 0 0 0
IC4501 37 2.1 2.1 2.1
IC4501 38 0 0 0
IC4501 39 - - -
IC4501 40 5 5 5
IC4501 41 0 0 0
IC4501 42 4 4 4
IC4501 43 3.8 3.8 3.8
IC4501 44 3.2 3.2 3.2
IC4501 45 1.6 1.6 1.6
IC4501 46 4.9 4.9 4.9
IC4501 47 2.5 2.5 2.5
IC4501 48 2.5 2.5 2.5
IC4501 49 3.6 3.6 3.6
IC4501 50 - - -
IC4501 51 5 5 5
IC4501 52 0.1 0.1 0.1
IC4501 53 6 6 6
IC4501 54 - - -
IC4501 55 0 0 0
IC4501 56 0 0 0
IC4501 57 6 6 6
IC4501 58 12.1 12.1 12.1
IC4501 59 - - -
IC4501 60 0 0 0
IC4501 61 2.5 2.5 2.5
IC4501 62 2.5 2.5 2.5
IC4501 63 - - -
IC4501 64 - - -
IC6001 1 - - -
IC6001 2 0 0 0
REF No. PIN No. REC PB EE
IC6001 3 - - -
IC6001 4 0 0 0
IC6001 5 4.6 4.6 4.6
IC6001 6 4.6 4.6 4.6
IC6001 7 4.9 4.9 4.9
IC6001 8 4.9 4.9 4.9
IC6001 9 3.2 3.2 3.2
IC6001 10 4.9 4.9 4.9
IC6001 11 0 0 4.7
IC6001 12 1.3 1.3 1.3
IC6001 13 0 0 0
IC6001 14 4.9 4.9 4.9
IC6001 15 3.8 3.8 3.8
IC6001 16 - - -
IC6001 17 2.5 2.5 2.5
IC6001 18 2.4 2.4 0
IC6001 19 0 0 0
IC6001 20 0 4.8 4.8
IC6001 21 0 4.9 4.9
IC6001 22 0 0 0
IC6001 23 4.3 4.3 4.3
IC6001 24 - - -
IC6001 25 0 0 0
IC6001 26 0 0 0
IC6001 27 0 0 0
IC6001 28 0 0 0
IC6001 29 0 0 0
IC6001 30 0 0 0
IC6001 31 4.8 4.8 4.8
IC6001 32 4.8 4.8 4.8
IC6001 33 0 0 0
IC6001 34 4.9 4.9 4.9
IC6001 35 0 0 0
IC6001 36 0 0 0
IC6001 37 5 5 5
IC6001 38 - - -
IC6001 39 - - -
IC6001 40 0 0 0
IC6001 41 - - -
IC6001 42 - - -
IC6001 43 5 5 5
IC6001 44 - - -
IC6001 45 4.9 4.9 4.9
IC6001 46 0 0 0
IC6001 47 0 1.4 1.4
IC6001 48 2.1 2.1 2.1
IC6001 49 0 0 0
IC6001 50 1.7 1.7 1.7
IC6001 51 5 5 5
IC6001 52 1.7 1.7 1.7
IC6001 53 5 5 5
IC6001 54 2.1 2.1 2.1
IC6001 55 2.2 1.7 1.7
IC6001 56 2 2 2
IC6001 57 0 0 0
IC6001 58 4.9 4.9 4.9
IC6001 59 - - -
IC6001 60 - - -
IC6001 61 0 0 0
IC6001 62 0 0 0
IC6001 63 - - -
IC6001 64 - - -
IC6001 65 - - -
IC6001 66 - - -
IC6001 67 - - -
IC6001 68 4 4 4
REF No. PIN No. REC PB EE
IC6001 69 2.2 2.2 2.2
IC6001 70 4.2 4.2 4.2
IC6001 71 4.2 4.2 4.2
IC6001 72 4.1 4.1 4.1
IC6001 73 - - -
IC6001 74 0 0 0
IC6001 75 4.6 4.6 4.6
IC6001 76 2.5 2.5 0
IC6001 77 2.4 2.4 2.4
IC6001 78 - - -
IC6001 79 5 4.8 4.8
IC6001 80 4.5 0.2 0.2
IC6001 81 - - -
IC6001 82 0 0 0
IC6001 83 - - -
IC6001 84 - - -
IC6001 85 0 0 0
IC6001 86 2.6 2.6 2.6
IC6001 87 2.6 2.6 2.6
IC6001 88 0 0 0
IC6001 89 0 0 0
IC6001 90 1.3 1.3 1.3
IC6001 91 2.5 2.5 2.5
IC6001 92 2.5 2.5 2.5
IC6001 93 0 0 0
IC6001 94 2.5 2.3 2.3
IC6001 95 2.5 2.8 2.8
IC6001 96 2.5 2.5 2.5
IC6001 97 2.5 2.5 2.5
IC6001 98 5 5 5
IC6001 99 5 5 5
IC6001 100 3.3 3.3 3.3
IC6302 1 5 5 5
IC6302 2 0 0 0
IC6302 3 4.6 4.6 4.6
IC6302 4 6.1 6.1 6.1
IC6501 1 1.2 1.2 1.2
IC6501 2 2.4 2.4 2.4
IC6501 3 0.2 0.1 0.2
IC6501 4 0 0 0
IC6502 1 0 0 0
IC6502 2 1.2 1.2 1.2
IC6502 3 4.9 4.9 4.9
IC6502 4 0 0 0
IC7301 1 3.3 3.3 3.3
IC7301 2 1.7 1.7 1.7
IC7301 3 0 0 0
IC7301 4 1.7 1.7 1.7
IC7301 5 3.3 3.3 3.3
IC7301 6 3.3 3.3 3.3
IC7301 7 1.7 1.7 1.7
IC7301 8 0 0 0
IC7301 9 1.7 1.7 1.7
IC7301 10 3.3 3.3 3.3
IC7301 11 1.7 1.7 1.7
IC7301 12 1.7 1.7 1.7
IC7301 13 3.3 3.3 3.3
IC7301 14 1.3 1.3 1.3
IC7301 15 1.5 1.5 1.5
IC7301 16 1.3 1.3 1.3
IC7301 17 1 1 1
IC7301 18 1.3 1.3 1.3
IC7301 19 0 0 0
IC7301 20 3.3 3.3 3.3
IC7301 21 3.3 3.3 3.3
IC7301 22 0 0 0
REF No. PIN No. REC PB EE
IC7301 23 1.5 1.5 1.5
IC7301 24 0 0 0
IC7301 25 0 0 0
IC7301 26 1.5 1.5 1.5
IC7301 27 1.5 1.5 1.5
IC7301 28 3.3 3.3 3.3
IC7301 29 0 0 0
IC7301 30 1.5 1.5 1.5
IC7301 31 3.3 3.3 3.3
IC7301 32 4.2 4.2 4.2
IC7301 33 3.7 3.7 3.7
IC7301 34 3.3 3.3 3.3
IC7301 35 3.3 3.3 3.3
IC7301 36 0 0 0
IC7301 37 0 0 0
IC7301 38 0 0 0
IC7301 39 0 0 0
IC7301 40 0 0 0
IC7301 41 0 0 0
IC7301 42 0 0 0
IC7301 43 0 0 0
IC7301 44 0 0 0
IC7302 1 0 0 0
IC7302 2 0 0 0
IC7302 3 - - -
IC7302 4 3.3 3.3 3.3
IC7302 5 3.3 3.3 3.3
IC7304 1 3.3 3.3 3.3
IC7304 2 0 0 0
IC7304 3 4.8 4.8 4.8
IC7304 4 - - -
IC7304 5 1.5 1.5 1.5
IC7401 1 6.1 6.1 6.1
IC7401 2 0 0 0
IC7401 3 4.6 4.6 4.6
IC7401 4 - - -
IC7401 5 5 5 5
IC7402 1 6.1 6.1 6.1
IC7402 2 0 0 0
IC7402 3 4.9 4.9 4.9
IC7402 4 - - -
IC7402 5 5 5 5
IC7403 1 1.2 1.2 1.2
IC7403 2 0 0 0
IC7403 3 4.6 4.6 4.6
IC7403 4 6.1 6.1 6.1
IC7403 5 5 5 5
IC7801 1 6.1 6.1 6.1
IC7801 2 0 0 0
IC7801 3 4.6 4.6 4.6
IC7801 4 - - -
IC7801 5 5 5 5
P7401 1 5.6 5.6 5.6
P7401 2 0 0 0
P7401 3 5.6 5.6 5.6
P7401 4 0 0 0
P7401 5 0.2 0.2 0.2
P7401 6 0 0 0
P7401 7 0.4 0.4 0.4
P7401 8 2.4 2.4 2.4
P7401 9 0 0 0
P7401 10 0 0 0
P7401 11 0 0 0
P7402 1 3 3 3
P7402 2 3.8 3.8 3.8
P7402 3 1.7 1.7 1.7
REF No. PIN No. REC PB EE
P7402 4 3.1 3.1 3.1
P7402 5 3 3 3
P7402 6 3.2 3.2 3.2
P7402 7 3.2 3.2 3.2
P7402 8 0 0 0
P7402 9 11.6 11.6 11.6
P7402 10 0 0 0
P7402 11 - - -
Q3002 E 1.6 1.6 1.6
Q3002 C 5 5 5
Q3002 B 2.2 2.2 2.2
Q3901 E 5 5 5
Q3901 C 5 5 5
Q3901 B 4.3 4.3 4.3
Q4001 E -19.4 0 0
Q4001 C 10.4 0 0
Q4001 B -28.1 0.7 0.7
Q4002 E -19.4 0 0
Q4002 C 0 0 0
Q4002 B -28.1 0.7 0.7
Q4003 E 0 0 0
Q4003 C 5.1 0.3 0.3
Q4003 B -0.6 0.3 0.3
Q4004 E 6.1 6.1 6.1
Q4004 C 6 0.4 0.4
Q4004 B 5.4 6 6
Q4501 E 5 5 5
Q4501 C 6.1 6.1 6.1
Q4501 B 5.6 5.6 5.6
Q4502 E 12.2 12.2 12.2
Q4502 C 12.1 12.1 12.1
Q4502 B 11.7 11.7 11.7
Q4901 E 11.7 11.7 11.7
Q4901 C 11.6 11.6 11.6
Q4901 B 11 11 11
Q6102 E 1.6 1.6 1.6
Q6102 C 5 5 5
Q6102 B 2.2 2.2 2.2
Q6103 E 2.9 2.9 2.9
Q6103 C 5 5 5
Q6103 B 3.6 3.6 3.6
Q6104 E 2.2 2.2 2.2
Q6104 C 0 0 0
Q6104 B 1.6 1.6 1.6
Q6305 E 5 5 5
Q6305 C 6.1 6.1 6.1
Q6305 B 5.6 5.6 5.6
Q6501 E 0 0 0
Q6501 C 4.7 4.7 4.7
Q6502 E 0 0 0
Q6502 C 4.9 4.9 4.9
Q7802 E 0 0 0
Q7802 C 4.8 4.8 4.8
Q7802 B 0 0 0
Q7803 E 0 0 0
Q7803 C 0 0 0
Q7803 B 0.7 0.7 0.7
QR4004 E 5 5 5
QR4004 C -28.1 5 5
QR4004 B 4.8 0 0
QR4005 E 0 0 0
QR4005 C 0.1 6.1 6.1
QR4005 B 4.8 0 0
QR4501 E 0 0 0
QR4501 C 0 0 0
QR4501 B 4.6 4.6 4.6
REF No. PIN No. REC PB EE
QR4901 E 0 0 0
QR4901 C 0 0 0
QR4901 B 4.8 4.8 4.8
QR4911 E 4.7 4.7 4.7
QR4911 C 4.6 4.6 4.6
QR4911 B 0 0 0
QR4912 E 0 0 0
QR4912 C 0 0 0
QR4912 B 4.6 4.6 4.6
QR4913 E 0 0 0
QR4913 C 0 0 0
QR4913 B 4.6 4.6 4.6

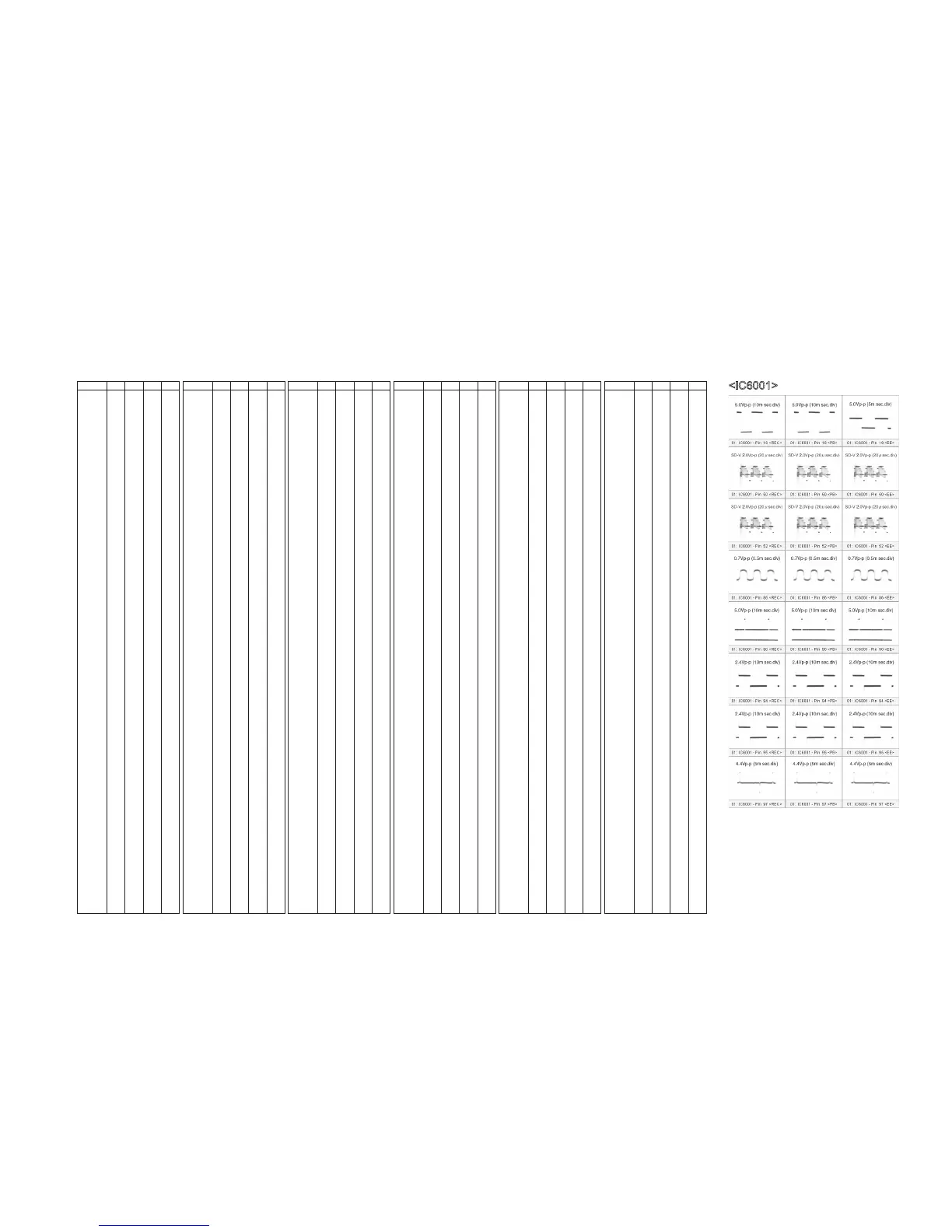

<IC6001>
