Panasonic DMR-EZ49VEG

34
9 Disassembly and Assembly Instructions

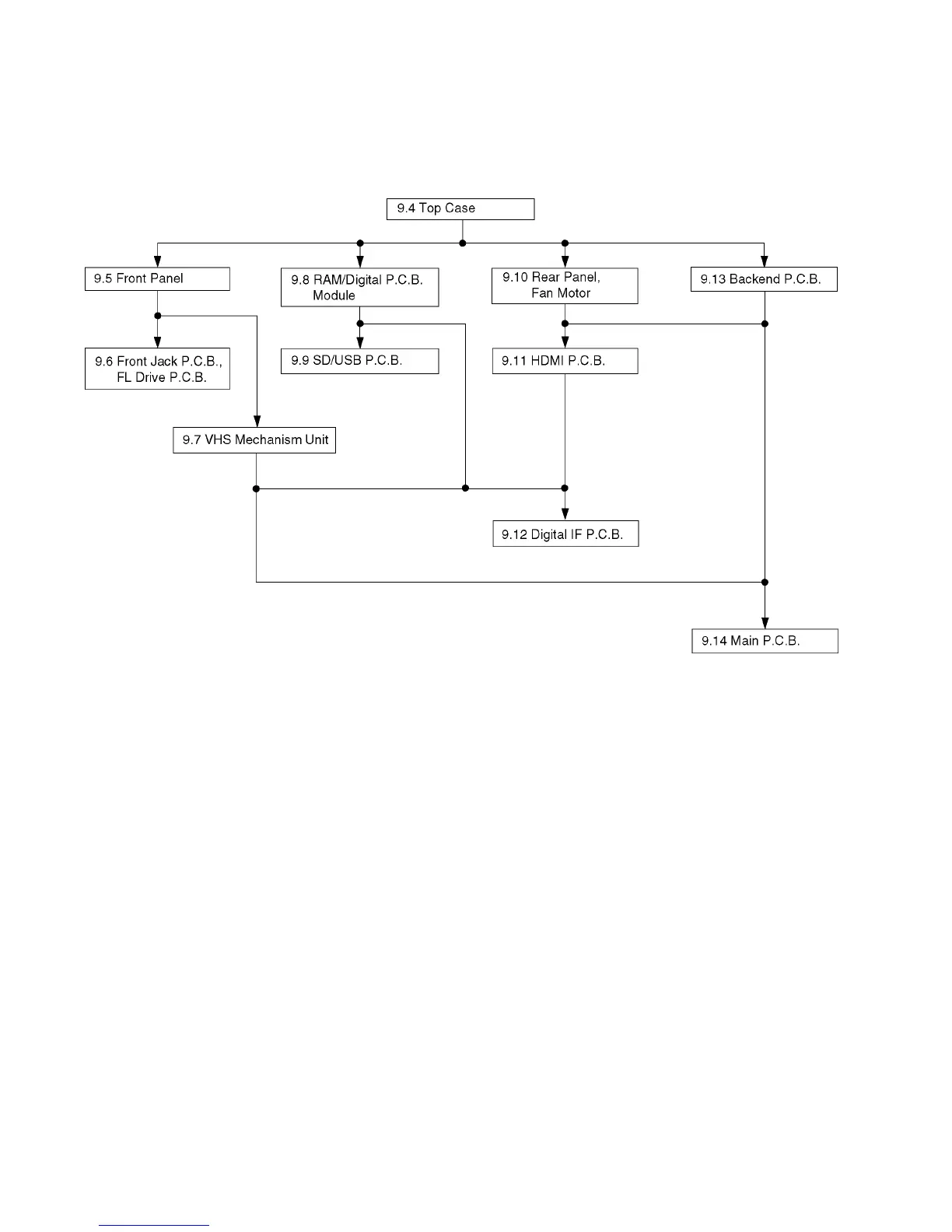

9.1. Disassembly Flow Chart
The following chart is the procedure for disassembling the casing and inside parts for internal inspection when carrying out the ser-
vicing.
To assemble the unit, reverse the steps shown in the chart below.
