Panasonic DMR-EZ49VEG

S-2

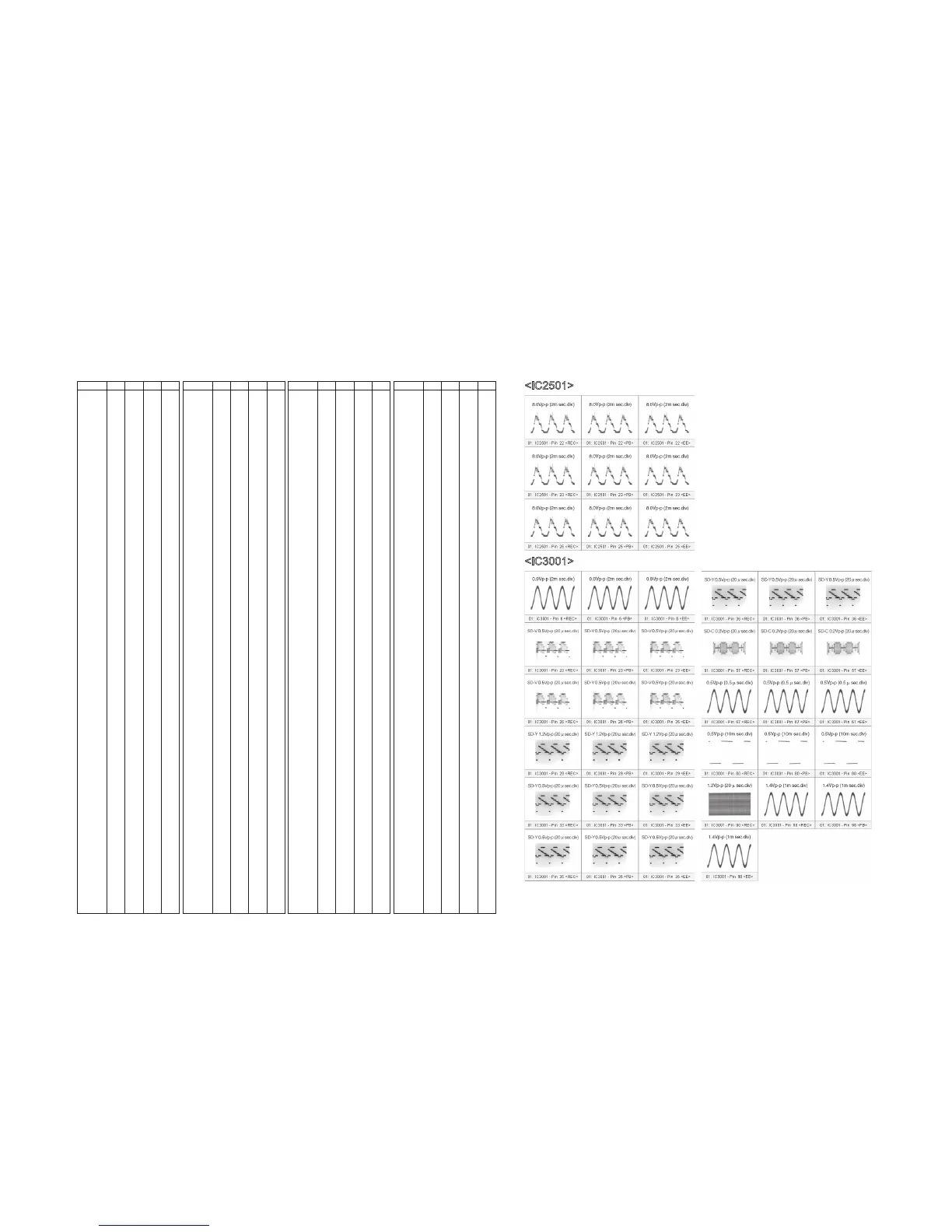

S2. Voltage and Waveform Chart
Note) Indicated voltage values are the standard values for the unit measured by the DC electronic circuit tester (high-impedance) with the chassis taken as standard.
Therefore, there may exist some errors in the voltage values, depending on the internal impedance of the DC circuit tester.
REF No. PIN No. REC PB EE
IC2501 1 12.6 12.6 12.6
IC2501 2 0.1 0.1 0.1
IC2501 3 0 0 0
IC2501 4 0.1 0.1 0.1
IC2501 5 0 0 0
IC2501 6 0 0 0
IC2501 7 16.2 16.2 16.2
IC2501 8 0 0 0
IC2501 9 2.8 2.8 2.8
IC2501 10 1.6 1.6 1.6
IC2501 11 1.6 1.6 1.6
IC2501 12 0.6 0.6 0.6
IC2501 13 1.5 1.5 1.5
IC2501 14 2.4 2.4 2.4
IC2501 15 2.5 2.5 2.5
IC2501 16 2.5 2.5 2.5
IC2501 17 2.5 2.5 2.5
IC2501 18 1.3 1.3 1.3
IC2501 19 5 5 5
IC2501 20 3.6 3.6 3.8
IC2501 21 12.6 12.6 12.6
IC2501 22 3.6 3.6 3.8
IC2501 23 3.6 3.6 3.8
IC2501 24 0 0 0
IC2501 25 3.6 3.6 3.8
IC3001 1 1.7 1.7 1.7
IC3001 2 0 0 0
IC3001 3 0 0 0
IC3001 4 5.1 5.1 5.1
IC3001 5 2.1 2.1 2.1
IC3001 6 2.6 2.6 2.6
IC3001 7 2.8 2.8 2.8
IC3001 8 1.9 1.5 1.9
IC3001 9 1.8 1.4 1.8
IC3001 10 2.3 2.3 2.3
IC3001 11 2.6 2.6 2.6
IC3001 12 1.5 1.5 1.5
IC3001 13 0 0 0
IC3001 14 2.8 2.8 2.8
IC3001 15 2.7 2.7 2.7
IC3001 16 0 0 0
IC3001 17 2.7 2.7 2.7
IC3001 18 2 2 2
IC3001 19 2.7 2.7 2.7
IC3001 20 0 0 0
IC3001 21 2.7 2.7 2.7
IC3001 22 5 5 5
IC3001 23 2.3 2.3 2.3
IC3001 24 0 0 0
IC3001 25 2.1 2.1 2.1
IC3001 26 2.9 2.9 2.9
IC3001 27 0.4 0.4 0.4
IC3001 28 0 0 0
IC3001 29 2.4 2.4 2.4
IC3001 30 2.8 2.8 2.8
IC3001 31 0.4 0.4 0.4
IC3001 32 2.2 2.2 2.2
IC3001 33 2.1 2.1 2.1
IC3001 34 1.7 1.7 1.7
IC3001 35 3.1 3.1 3.1
IC3001 36 2.3 2.3 2.3
IC3001 37 3 3 3
IC3001 38 2.1 2.1 2.1
IC3001 39 1.5 1.5 1.5
IC3001 40 2.1 2.1 2.1
IC3001 41 2.5 2.5 2.5
REF No. PIN No. REC PB EE
IC3001 42 2 2 2
IC3001 43 2.1 2.1 2.1
IC3001 44 0 0
IC3001 45 3.2 3.2 3.2
IC3001 46 3.2 3.2 3.2
IC3001 47 5 5 5
IC3001 48 0.1 0.1 0.1
IC3001 49 0 3.1 3.1
IC3001 50 5 5 5
IC3001 51 1.9 1.9 1.9
IC3001 52 5 5 5
IC3001 53 2.6 2.6 2.6
IC3001 54 0 0 0
IC3001 55 1.9 1.9 1.9
IC3001 56 0 0 0
IC3001 57 2.2 2.2 2.2
IC3001 58 2.2 2.2 2.2
IC3001 59 5 5 5
IC3001 60 5 5 5
IC3001 61 4 4 4
IC3001 62 2.3 2.3 2.3
IC3001 63 2.2 2.2 2.2
IC3001 64 2.4 2.4 2.4
IC3001 65 2.2 2.2 2.2
IC3001 66 2.4 2.4 2.4
IC3001 67 2.2 2.2 2.2
IC3001 68 1.2 1.2 1.2
IC3001 69 2 2 2
IC3001 70 2.7 2.7 2.7
IC3001 71 2.2 2.2 2.2
IC3001 72 0.1 0.1 0.1
IC3001 73 4.3 4.3 4.3
IC3001 74 4.3 4.3 4.3
IC3001 75 2.8 2.8 2.8
IC3001 76 2.2 2.2 2.2
IC3001 77 - - -
IC3001 78 - - -
IC3001 79 0 0 0
IC3001 80 2.4 2.6 2.6
IC3001 81 0 0 0
IC3001 82 0 0 0
IC3001 83 3.2 3.2 3.2
IC3001 84 5 5 5
IC3001 85 2.4 2.4 2.4
IC3001 86 2.3 2.3 2.3
IC3001 87 2.4 2.4 2.4
IC3001 88 0 0 0
IC3001 89 2.3 0 0
IC3001 90 2.3 0 0
IC3001 91 2.3 0 0
IC3001 92 5.1 5.1 5.1
IC3001 93 0.6 0.6 0.6
IC3001 94 2.5 2.5 2.5
IC3001 95 2.5 2.5 2.5
IC3001 96 2.5 2.5 2.5
IC3001 97 0 0 0
IC3001 98 2.3 2.3 2.3
IC3001 99 0 0 0
IC3001 100 2.6 2.6 2.6
IC3002 1 5 5 5
IC3002 2 - - -
IC3002 3 1.3 1.3 1.3
IC3002 4 0 0 0
IC3002 5 4.6 4.6 4.6
IC3002 6 - - -
IC3002 7 - - -
REF No. PIN No. REC PB EE
IC3002 8 6.1 6.1 6.1
IC3901 1 2 2 2
IC3901 2 2.5 2.5 2.5
IC3901 3 1.6 1.6 1.6
IC3901 4 0 0 0
IC3901 5 1.6 1.6 1.6
IC3901 6 5 5 5
IC3901 7 1.6 1.6 1.6
IC3901 8 5 5 5
IC3901 9 0.4 0.4 0.4
IC3901 10 0.3 0.3 1.6
IC3901 11 1.6 1.6 1.6
IC3901 12 0.4 0.4 0.4
IC3901 13 0 0 0
IC3901 14 1.7 1.7 1.7
IC3901 15 1.7 1.7 1.7
IC3901 16 1.6 1.6 1.6
IC3901 17 0.4 0.4 0.4
IC3901 18 0 0 0
IC3901 19 0 0 0
IC3901 20 1.7 1.7 1.7
IC3901 21 0 0 0
IC3901 22 1.7 1.7 1.7
IC3901 23 1.7 1.6 1.6
IC3901 24 1.7 1.7 1.7
IC3901 25 5 5 5
IC3901 26 1.4 1.4 1.4
IC3901 27 0.1 0.1 0.2
IC3901 28 1.4 1.4 1.4
IC3901 29 0 0 0
IC3901 30 1.6 1.6 1.6
IC3901 31 1.6 1.6 1.6
IC3901 32 0 0 0
IC3901 33 1.6 1.6 1.6
IC3901 34 0 0 0
IC3901 35 2.1 2.1 2.1
IC3901 36 0 0 0
IC3901 37 1.6 1.6 1.6
IC3901 38 4.9 4.9 4.9
IC3901 39 1.6 1.6 1.6
IC3901 40 5 5 5
IC3901 41 1.6 1.6 1.6
IC3901 42 5 5 5
IC3901 43 2 2 2
IC3901 44 0 0 0
IC3901 45 2 2 2
IC3901 46 11.6 11.6 11.6
IC3901 47 1.6 1.6 1.6
IC3901 48 2 2 2
IC3901 49 4.5 4.5 4.5
IC3901 50 4.4 4.4 4.4
IC3901 51 4.4 4.4 4
IC3901 52 4 4 4.5
IC3901 53 4.5 4.5 4.5
IC3901 54 1.6 1.6 1.6
IC3901 55 4.5 4.5 4.5
IC3901 56 4.5 4.5 3.9
IC3901 57 9.1 9.1 9.1
IC3901 58 4.4 4.4 4
IC3901 59 4.4 4.4 4.2
IC3901 60 4.5 4.5 3.7
IC3901 61 4.5 4.5 3.7
IC3901 62 4.4 4.4 4.2
IC3901 63 4.5 4.5 3.7
IC3901 64 4.5 4.5 3.8
IC3901 65 9 9 9
REF No. PIN No. REC PB EE
IC3901 66 0 0 0
IC3901 67 0 0 0
IC3901 68 0 0 0
IC3901 69 0 0 0
IC3901 70 0 0 0
IC3901 71 4.5 4.5 4.5
IC3901 72 4.5 4.5 4.5
IC3901 73 4.5 4.5 4.5
IC3901 74 4.5 4.5 4.5
IC3901 75 0 0 0
IC3901 76 - - -
IC3901 77 9.5 9.5 0.3
IC3901 78 4.5 4.5 4.5
IC3901 79 4.5 4.5 4.5
IC3901 80 0 0 0
IC3901 81 2.1 2.1 2.1
IC3901 82 - - -
IC3901 83 1.5 1.5 1.5
IC3901 84 5 5 5
IC3901 85 2.1 2.1 2.1
IC3901 86 4.5 4.5 4.5
IC3901 87 3.6 3.6 3.6
IC3901 88 4.8 4.8 4.8
IC3901 89 4.6 4.6 4.6
IC3901 90 5 5 5
IC3901 91 2 2 2
IC3901 92 2.8 2.8 2.8
IC3901 93 2.1 2.1 2.1
IC3901 94 5 5 5
IC3901 95 2 2 2
IC3901 96 0 0 0
IC3901 97 2.1 2.1 2.1
IC3901 98 0 0 0
IC3901 99 2 2 2
IC3901 100 2.5 2.5 2.5
IC3905 1 0 0 0
IC3905 2 2.1 2.1 2.1
IC3905 3 5 5 5
IC3905 4 2 2 2
IC3905 5 0 0 0
IC3905 6 2.1 2.1 2.1
<IC2501>
<IC3001>
S2.1. VHS_Main P.C.B.
