9.9. SD/ USB P.C.B.

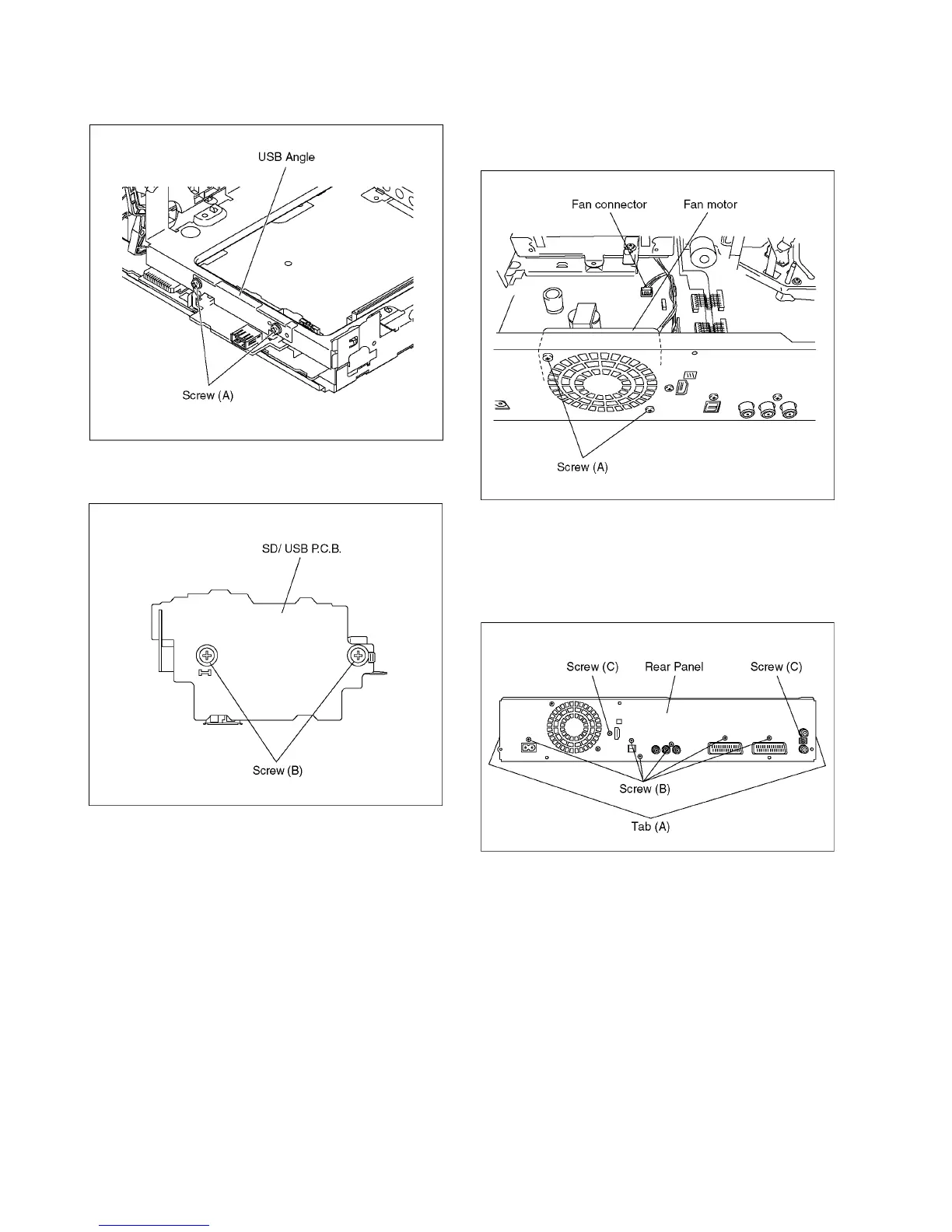

1. Remove 2 Screws (A) to remove USB Angle.
2. Make the USB Angle turn inside out.
Remove 2 Screws (B) to remove SD/ USB P.C.B.
9.10. Rear Panel, Fan Motor
9.10.1. Only Fan Motor
1. Disconnect Fan Connector.
2. Remove 2 Screws (A) to remove Fan Motor.
9.10.2. Rear Panel with Fan Motor
1. Disconnect Fan Connector.
2. Remove 6 Screws (B) and 2 Screws (C).
3. Unlock 2 Locking Tabs (A) to remove Rear Panel with
Fan Motor.
