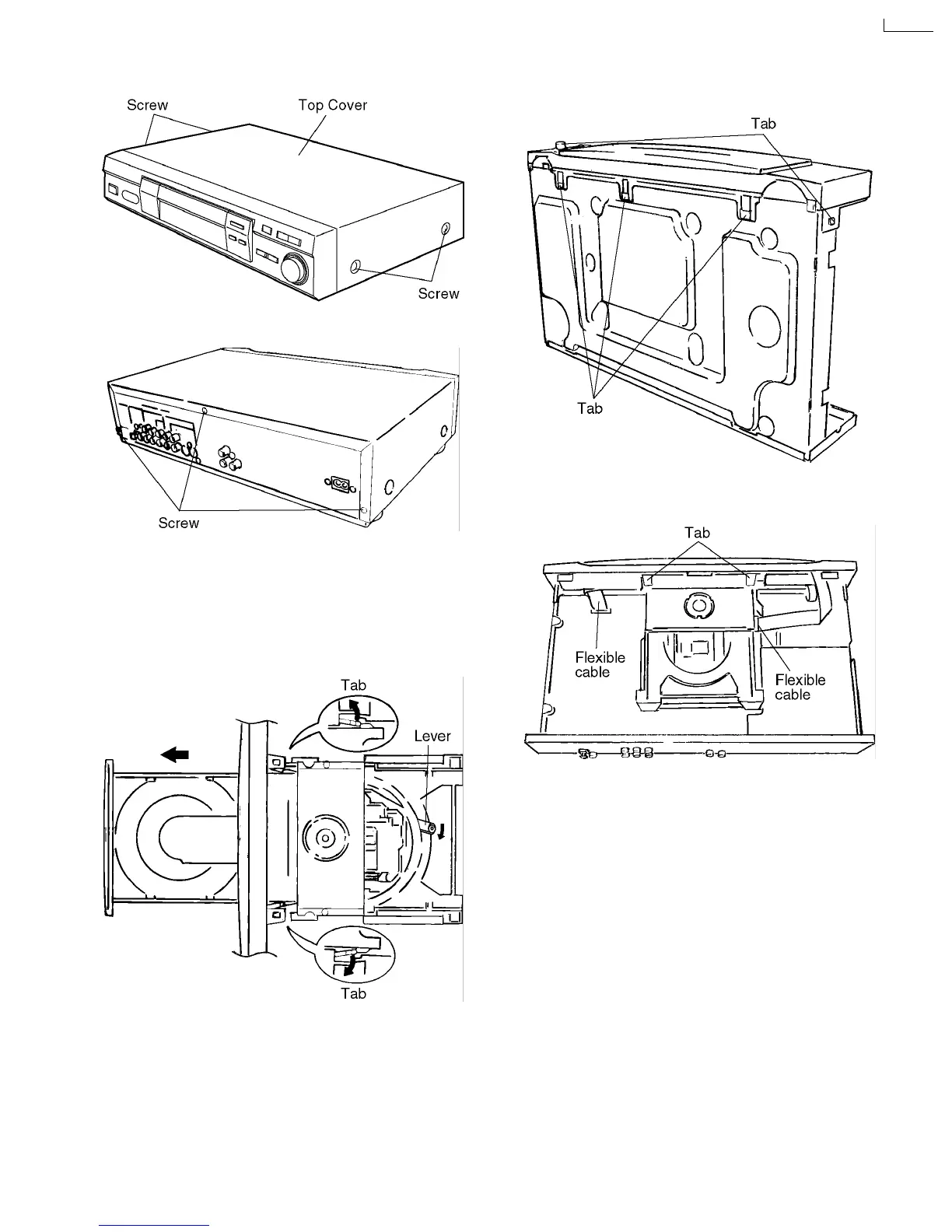

9.4. Disassembling the Top Cover
1. Remove the 4 screws.
2. Remove the 3 screws.
9.5. Disassembling the Tray
1. Turn the lever clockwise.
2. Move the tray in the direction of the arrow until it locks.
3. Release the tab locks on the left and right, then pull out the
tray.
9.6. Disassembling the Front Panel
1. Release the 3 tabs on the bottom.
2. Release the 2 tabs on the left and right.
3. Release the 2 tabs.
4. Disconnect the 2 flexible cables.
13
DVD-RV60
