Panasonic EP-MA70

EP-MA70
ORDER NO. HPD1102U24CE
- 35 -

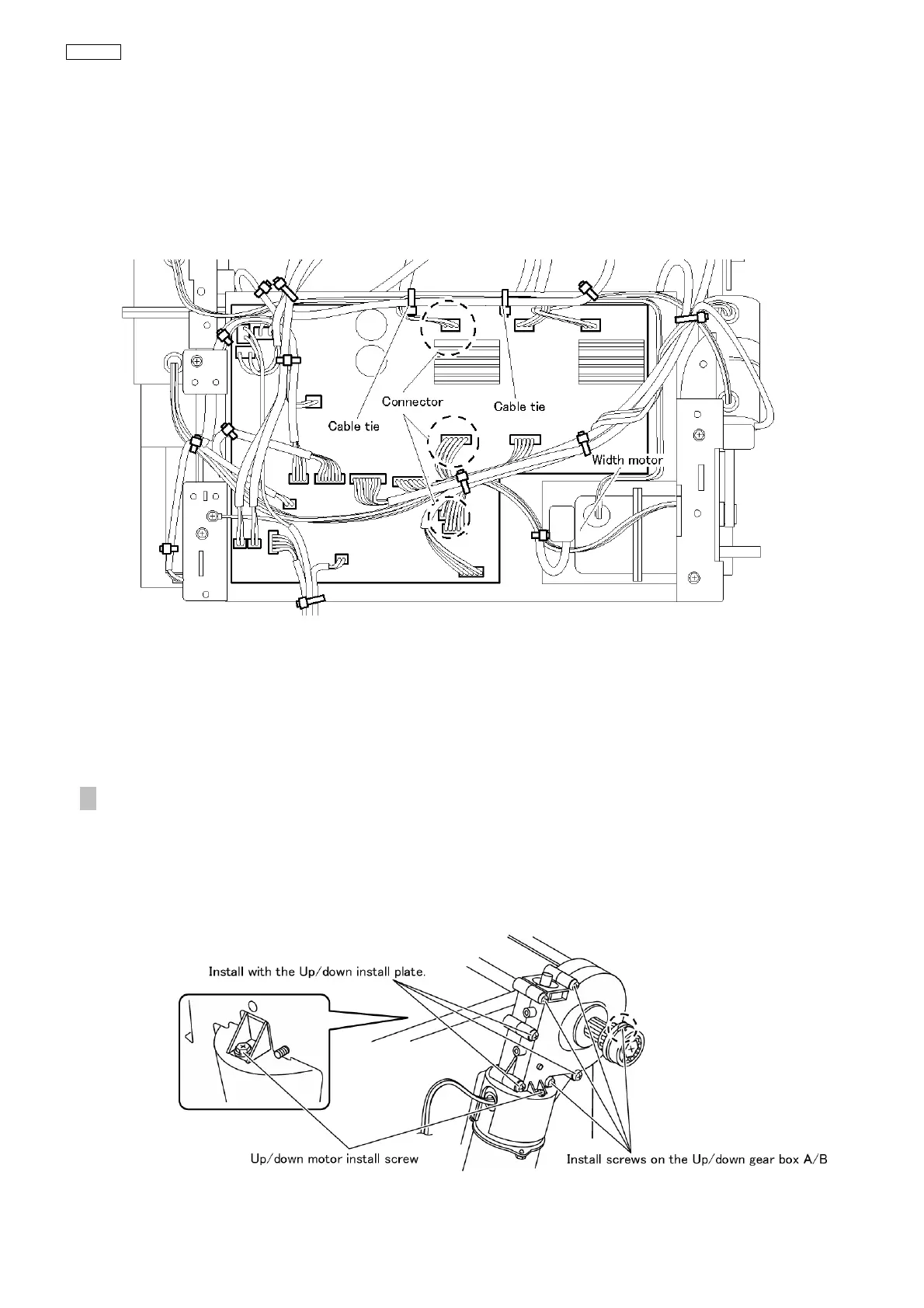

6.14.4. Removing the Width motor
1. Disconnect the Connectors (CN501, CN1, CN30) on the Main PCB.
2. Cut the Cable ties (T18S, T30R) binding the Lead wires.
3. Remove the Width belt.
4. Remove two Install screws on the Width motor.
6.14.5. Removing the Up/down gear block
＊ You cannot replace the Up/down shaft or Up/down motor without
disassembling the Up/down gear block.
＊ Proceed the procedure of 1-4 of 6.12.3. Removing the Width sensor.
1. Remove the Massage mechanism block from the Rear frame.
2. Remove 10 screws on the Up/down driving install plate and the Intensity driving install plate.
3. Remove two screws on the Up/down sensor install plate.
4. Remove three screws on the Up/down gear box and the Up/down driving install plate.
5. Remove four Install screws on the Up/down gear box A/B.
6. Remove two Install screws on the Up/down gear box and the Up/down motor.
(One is the Grounding screw.)
