Electrical Connection Electrical Connection
EVERVOLT Hybrid inverter is equipped with four 1 inch conduit fittings which are
used for electrical wiring access. Four waterproof plugs have been installed on
the inverter at the factory. Before wiring connection, these waterproof plugs
should be removed by the operator.

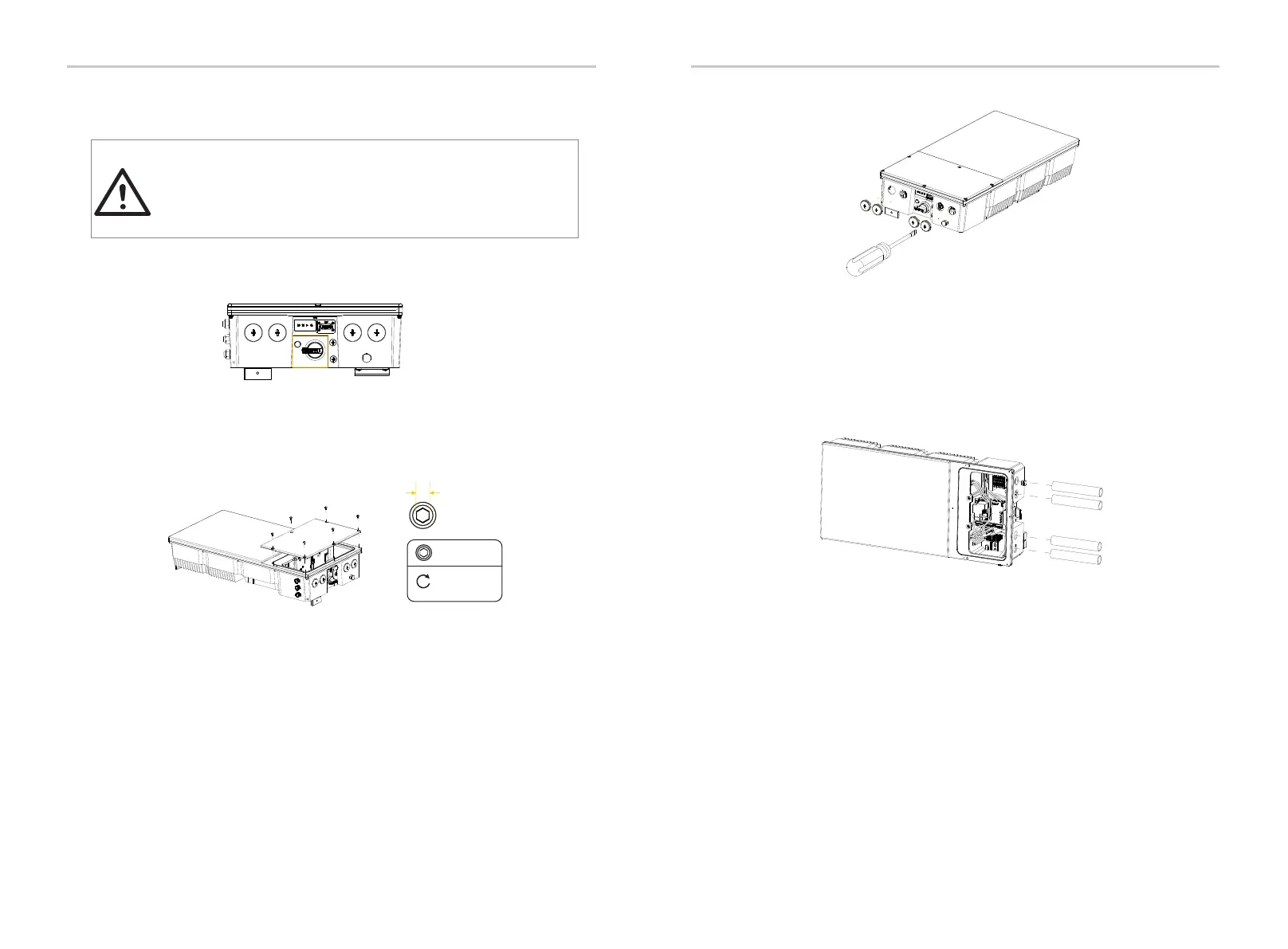

Step 1: Remove the waterproof plugs by placing a flat blade screwdriver in the slot
on the waterproof plug face and turning while gripping the nut on the inside of the
enclosure to ensure it does not slip.
Ÿ Removing wiring box waterproof plugs
Ÿ Opening the wiring box cover
Step 1: Turn DC switch to “OFF” position. Note that the cover cannot be
removed when the DC switch is in “ON” position.
WARNING!
Before inverter wiring connection, Make sure no live voltages
are present on PV input and AC output circuits, and make sure
that the DC switch is in “OFF” position, meanwhile, the breaker
of battery is in OFF position.
41
40
Ÿ Conduit installation
Operator should use the conduits and plugs with standard size which must fit with
the holes on the right side of the inverter. Conduit fittings need to be water tight,
and an insulated type is preferred.
Step 3: Remove the 6 cover screws using Allen key, then disassemble the cover.
Step 2: Make sure the breaker of battery is in OFF position.
Step 2: Unscrew the nut from the waterproof plug and slip the conduit plug out of
the waterproof opening.
Once conduit and fittings are installed, wires should go through the conduit and be
locked into the corresponding terminals.
M5
17.7 lbf.in /
2.0N·m
3
.0
m
m
