Panasonic FP (Sigma) - High Expansion Capability

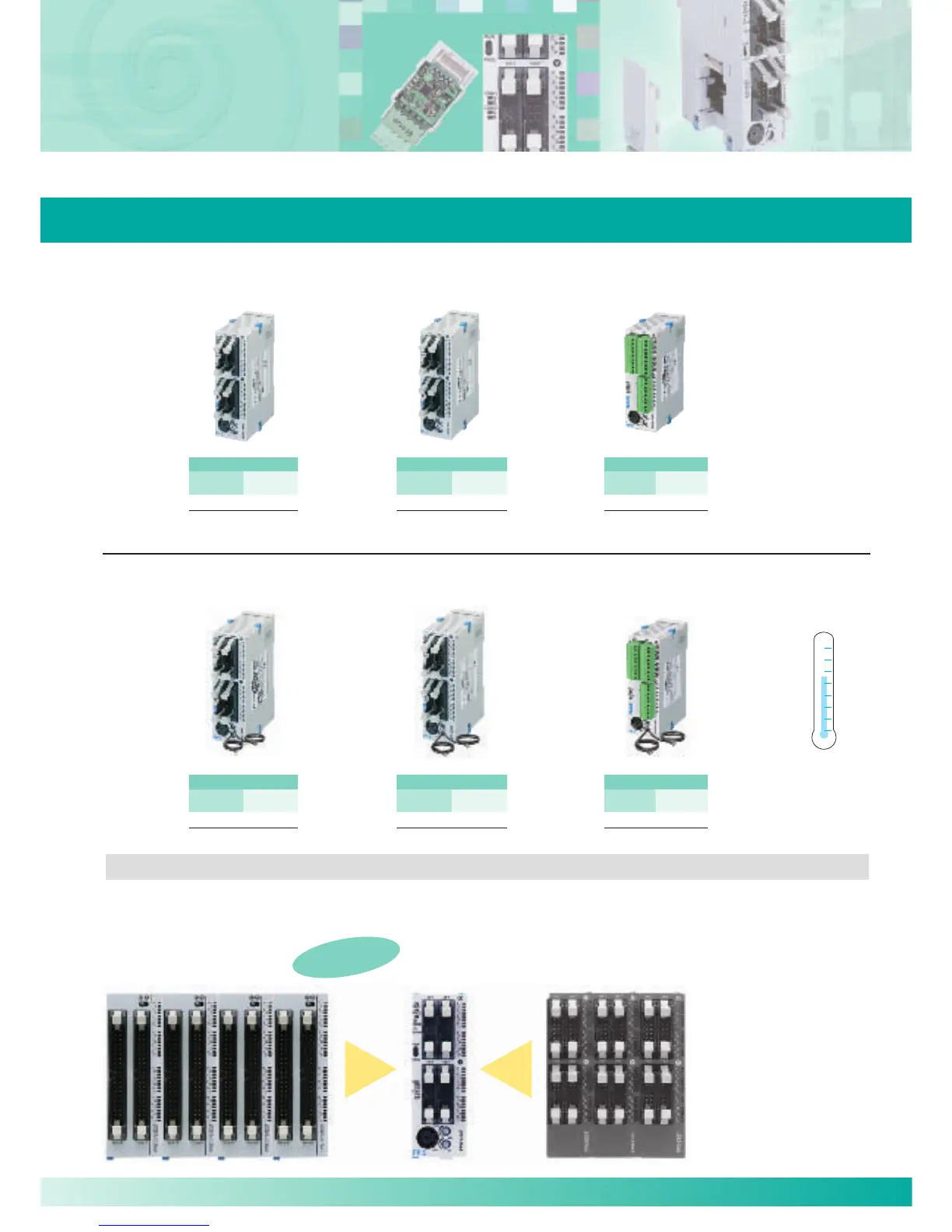

FPΣ (Sigma) CPUs
Outstanding performance in a compact design
3
FPΣ
(
Sigma
)
Relay output type
Terminal type
FPG-C24R2H
24 points
Input
16 points
Output
8 points
FPΣ
(
Sigma
)
– Transistor output type
FP
Σ
(
Sigma
)
– Transistor output type with thermistor input
FP
Σ
(
Sigma
)
– Relay
output type with ther-
mistor input
Connector type
FPG-C32T2H
32 points
Input
16 points
Output (NPN)
16 points
Connector type
FPG-C28P2H
28 points
Input
16 points
Output (PNP)
12 points
2 Thermistor inputs
FPG-C24R2HTM
24 points
Input
16 points
Output
8 points
2 Thermistor inputs
FPG-C32T2HTM
32 points
Input
16 points
Output
16 points
2 Thermistor inputs
FPG-C28P2HTM
28 points
Input
16 points
Output
12 points
Temperature
Control
0
10
30
40
50
60
70
80
High Expansion Capability
FPΣ (Sigma) can use the expansion units of the FP0 on the right-hand side. New FPΣ (Sigma) units can be added to the left-hand
side.
Max. 4 Expansion Units
each 64 I/Os = 256 I/Os
Parallel
Expansion
BUS
Serial
Expansion
BUS
CPU
max. 32 I/Os
Max. 3 Expansion Units
each 32 I/Os = 96 I/Os
…up to 384 I/O!
