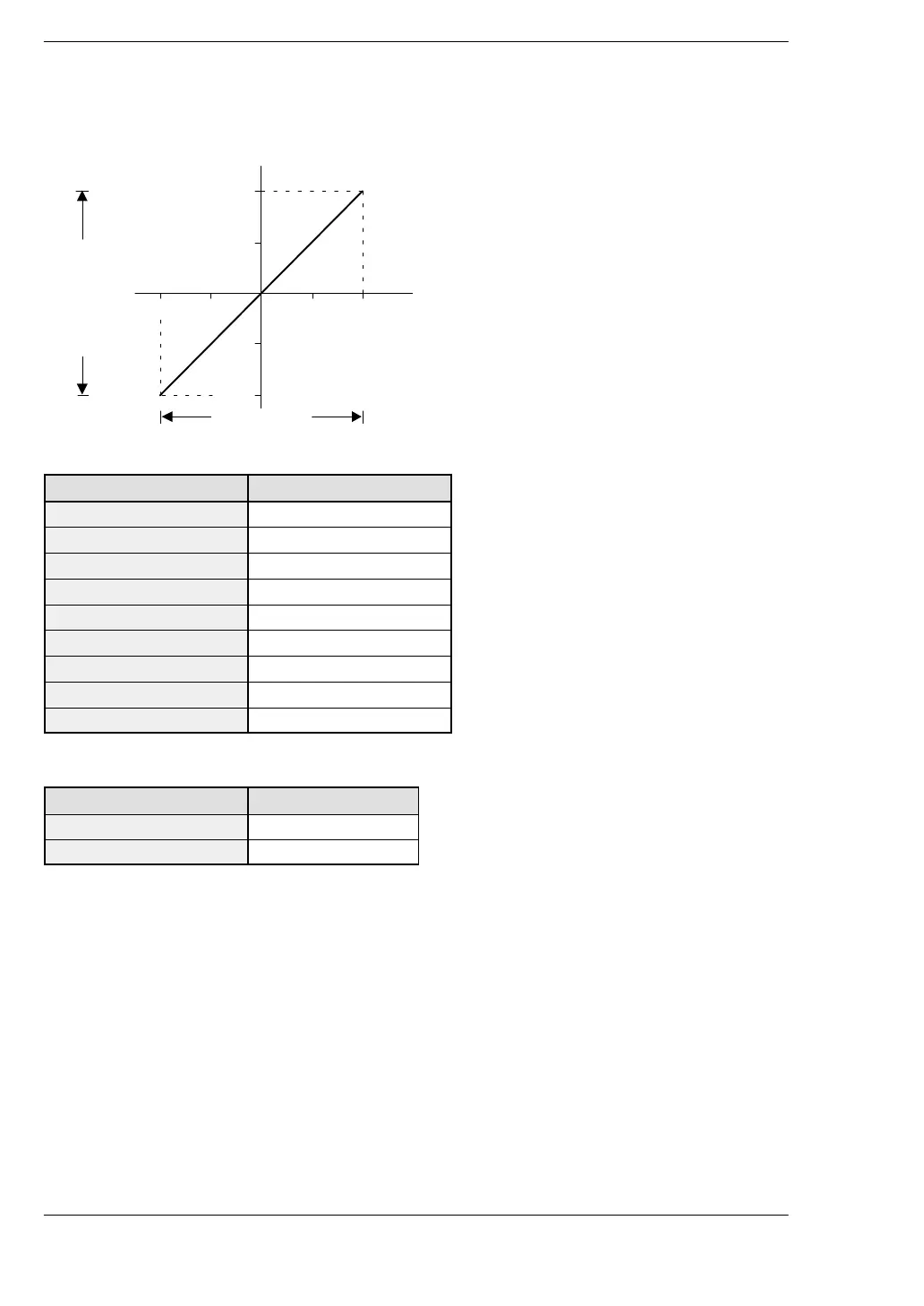

4.1 A/D Conversion Characteristics
Voltage range: −100 to +100mV DC input
2000
1000
0
–1000
–2000
–100
–50 50 100 (mV)
(K)
Analog input range
A/D conversion value
Correspondence table of A/D conversion values
Input voltage (mV) A/D conversion value
−100.0 −2000
−75.0 −1500
−50.0 −1000
−25.0 −500
0.0 0
+25.0 +500
+50.0 +1000
+75.0 +1500
+100.0 +2000
Processing if the range is exceeded
Input value Converted value
−100mV or less −2000
+100mV or more +2000
