A/D Conversion Characteristics
FP0 A/D Converter Unit
4 − 5

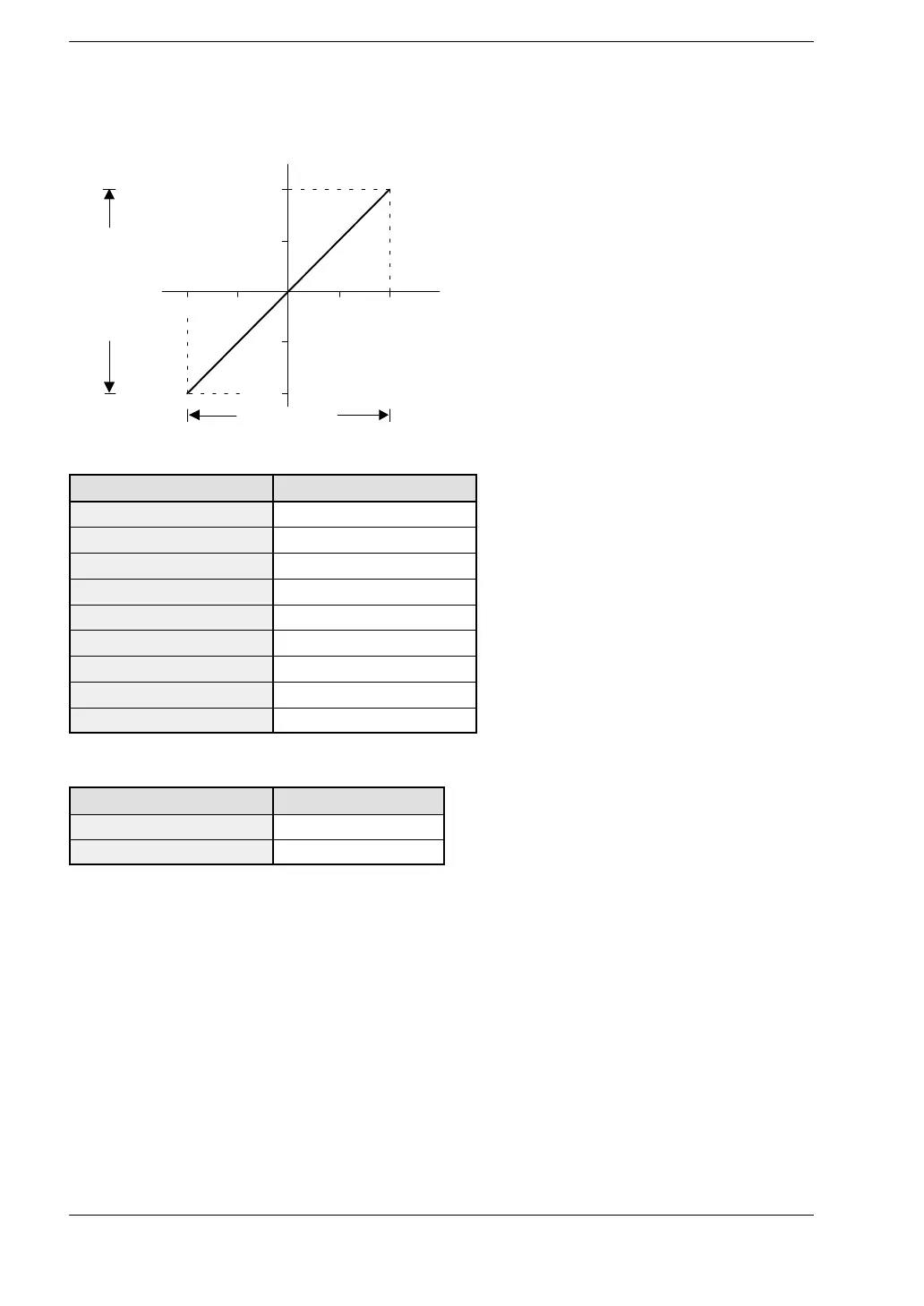

4.1 A/D Conversion Characteristics
Voltage range: −10 to +10V DC input
2000
1000
0
–1000
–2000
–10 –5 5 10 (V)
(K)
Analog input range
A/D conversion value
Correspondence table of A/D conversion values
Input voltage (V) A/D conversion value
−10.0 −2000
−7.5 −1500
−5.0 −1000
−2.5 −500
0.0 0
+2.5 +500
+5.0 +1000
+7.5 +1500
+10.0 +2000
Processing if the range is exceeded
Input value Converted value
−10V or less −2000
+10V or more +2000
