8

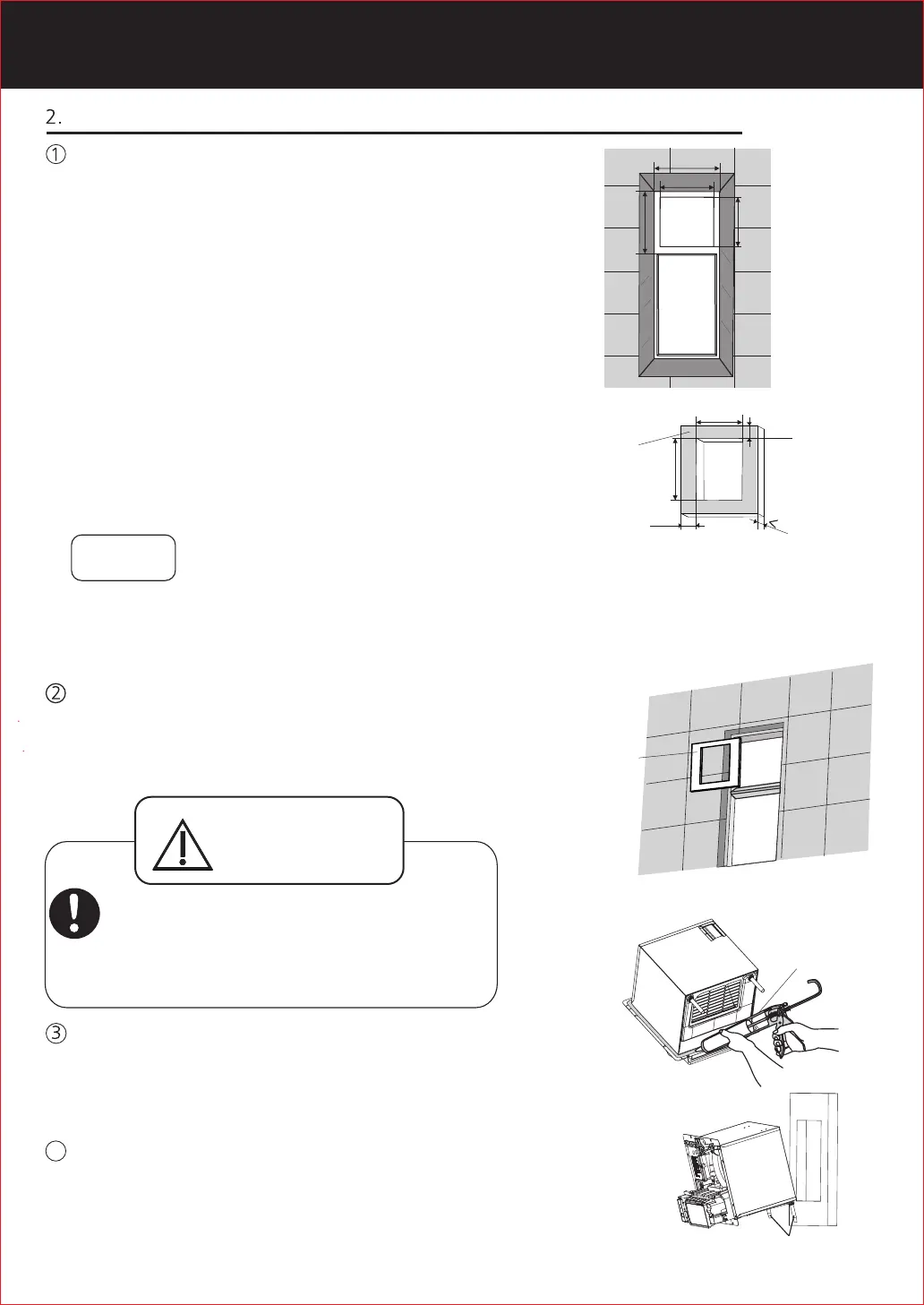

安裝方法
Add silicone to seal around the flange of
product, to make sure that the silicone cover
the entire surface of sponge.
在產品法蘭邊周圍加玻 璃 膠，並確保玻璃膠覆蓋 整
個海綿表面。
Please be sure to take sufficient
protection measure to prevent from
high falling when install window frame.
This product can be installed on a window which
size is shown as right figure. A window frame
needs to be made according to the window and
main body dimensions.
It may be difficult to remove the filter if little
clearance between product and ceiling.
Recommended main body installation method
3
0
≥25
≥25
Unit: mm
Unit: mm
單位：mm
單位：mm
Window frame material: recommend the
use of aluminum alloy.
Window frame thickness: less than 30 mm
Window frame
(Not included)
Window frame
(Not included)
Fix the window frame onto the original window.
(It must be can bear 5 times weight of the product.)
警告
WARNING
建議的機體安裝方法
窗膽材質：推薦使用鋁 合 金
將窗膽用可靠方法固定 於 原有窗框上。
(需能承受產品5倍的重量)
安裝窗膽時，請務必採 取 足夠的防護措施，
以防窗膽高空掉落。
窗膽厚度：小於30 mm
窗膽(另購)
窗膽(另購)
本產品適用於右圖所示 尺 寸大小的窗體安裝，
請根據窗體結構及機體尺 寸製作窗膽。
產品與天花板之間要確 保 有足夠的空間，否則
會導致產品過濾網拆卸 困 難。
240±2
244±2
提示事項
Notice
HOW TO INSTALL
≥296
≥242
≥290
≥238
4
Please put the lower part of the product into the
window sill first when it is installed, which to make
sure the drain does not fall off.
將機體安裝到窗膽時，先將機 體下部放入窗膽并
確保排水管沒有脫落。
Product installation dimensions
(minimum opening dimensions)
產品安裝尺寸(最小開口尺 寸)
(寬)238 mm×(高)242 mm
(width)238 mm×(height)242 mm
Silicone
玻璃膠
Drain
排水管
