1 Microphone
2 Access lamp (l 14)
3 Recording mode lamps
≥ [ ]: Motion picture recording lamp
≥ [ ]: Slow motion recording lamp
≥ [ ]: Still picture recording lamp
4 Power lamp (l 12, 15)
5 Recording start/stop button (l 29)
6 Recording mode/Wi-Fi button [MODE]
7 Wi-Fi lamp [ ]
8 Power button [ ] (l 15)
9 Lens (l 4)
10 Glasscover
≥ The glasscover (normal shooting) is attached
to this unit at the time of purchase. When
recording in dark locations, replace it with the
supplied glasscover (night mode).
11 Wi-Fi Transmitter
12 Speaker
13 Terminal cover
≥ The terminal cover (waterproof) is attached to
this unit at the time of purchase. When using
this unit with the USB cable, replace the
cover with the supplied terminal cover (USB
connection).
14 Reset button [RESET]
≥ If this unit fails to operate correctly, such as
when this unit cannot be turned on/off, press
the reset button by using a paper clip or a
similar object.
15 USB terminal [ ] (l 10)
16 Card slot (l 14)
Preparation

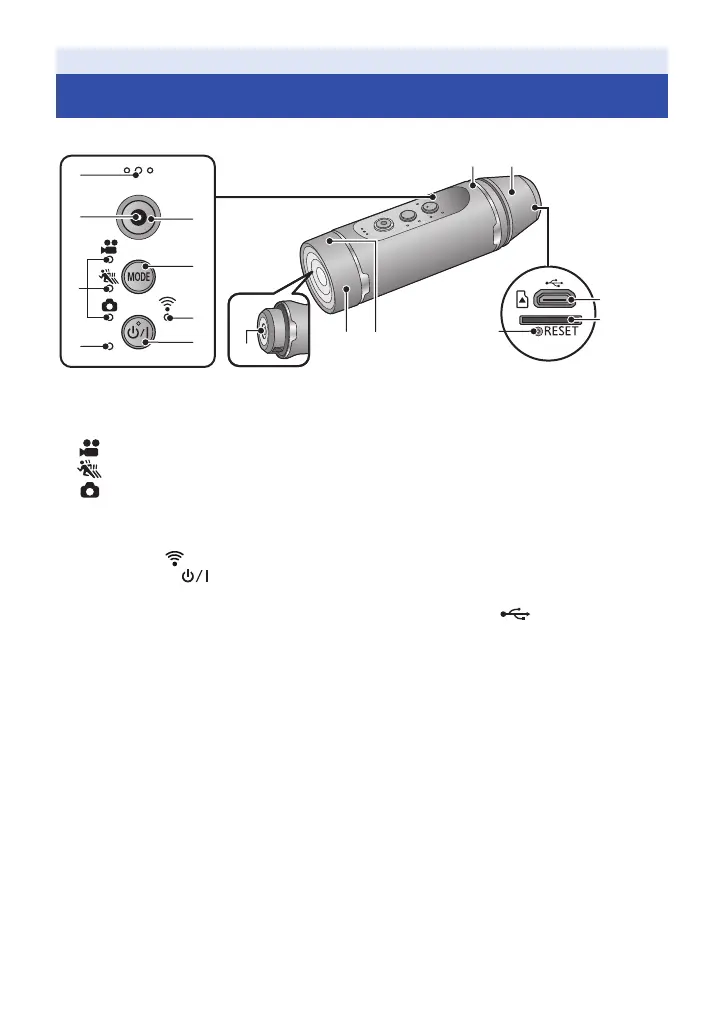

Names and Functions of Main Parts
1
2
3
4
5
6
8
9
10 11
13
7
15
16
14
12
