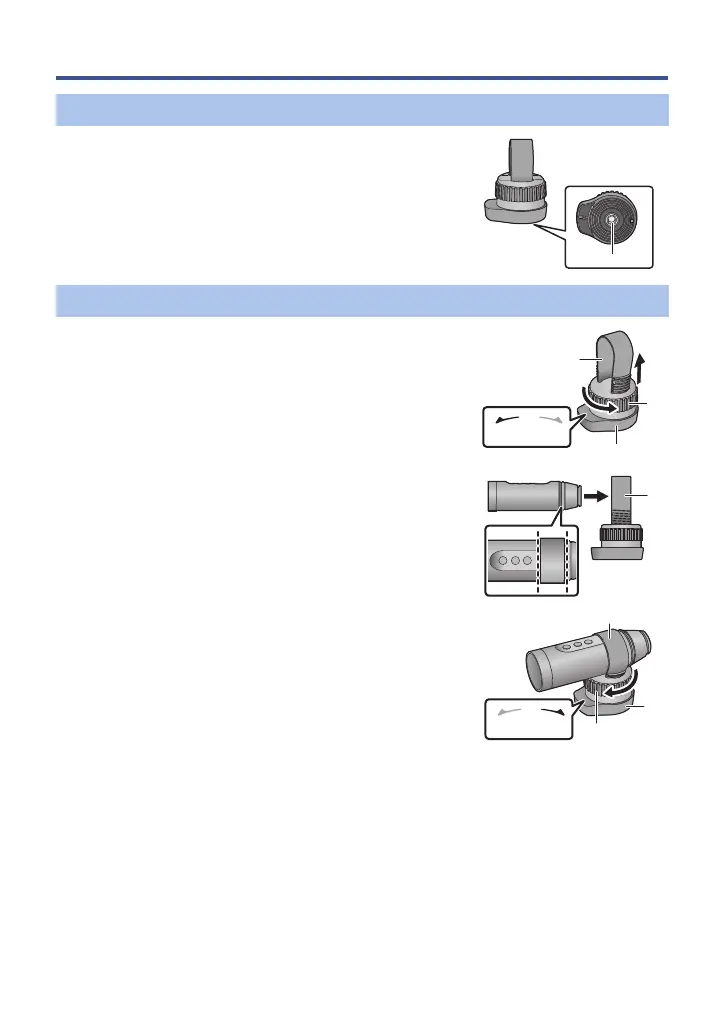

Using a Tripod Mount
The tripod mounting hole A of the tripod mount is compatible
with the screw (1/4-20 UNC) of a tripod, etc.
≥ If you attach a screw with a length of 6 mm or more to a Tripod
Mount, it may wobble.
1 While holding D, loosen the adjustment belt B
until this unit can be passed through it by rotating
the tightening nut C towards UNLOCK.
2 Pass this unit through the adjustment belt B so
that this unit is in the position shown in the figure.
3 While holding D, tighten the adjustment belt B by
rotating the tightening nut C towards LOCK until
this unit is fastened securely.
≥ Adjust the adjustment belt with hands. Do not apply too much
force.
≥ Do not rotate the tightening nut more than necessary after
fastening this unit.
≥ Check the direction of this unit after attaching it.
≥ To correct the left/right tilt of this unit, loosen the adjustment
belt.
Attaching the tripod mount to a tripod, etc.
Attaching this unit to the Tripod Mount
UNLOCK LOCK
