2 For multiple units (more than 2 units)
• If there are obstacles on both sides
3. SELECTING THE LOCATION FOR INSTALLATION SERVICE
Please secure necessary space to guarantee performance and service & maintenance.

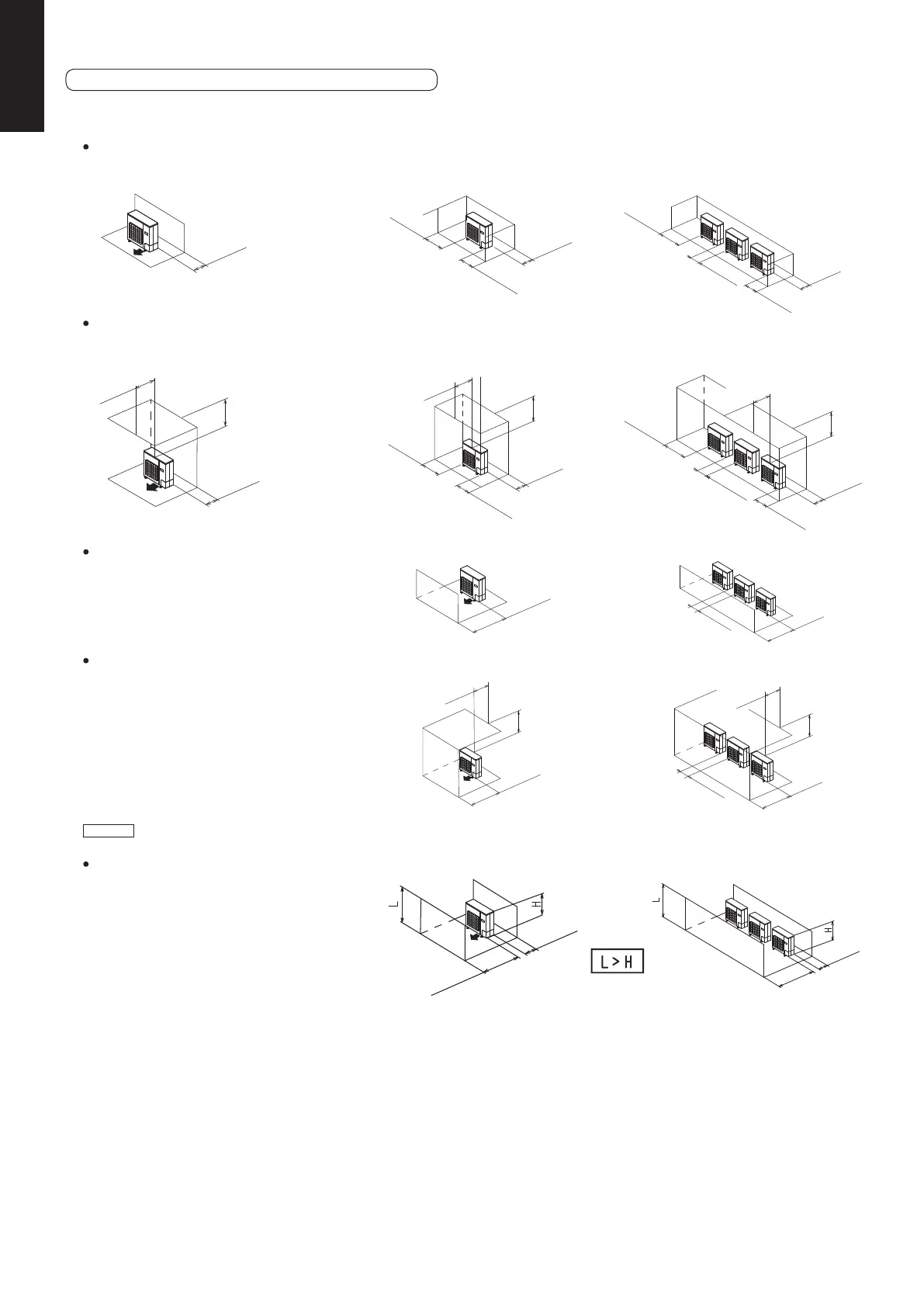

For multiple installations, please secure enough space to enable removal of side face screws between units. (unit:mm)
(A) If there are obstacles at the intake
If the upper part is open
1
For separate installation location
• Only if there are obstacles at the intake
• If there are obstacles on both sides
More
than 100
If there are obstacles above the unit
1
For separate installation location
• Only if there are obstacles at
the intake
2
For multiple units (more than 2 units)
• If there are obstacles on both sides
• If there are obstacles on the
intake and the other side
More than
100
More than
1000
Less than 500
Less than
500
More than
1000
More than
200
More
than 500
More
than 250
More
than 250
More
than 500
More
than 100
More than 250
More than
1000
More than
300
More
than 250
Less than
500
More than 1000
More than 250
More than
1000
More than
250
More than
400
(B) If there are obstacles at the discharge
If the upper part is open
1 For separate installation location
More than 500
If there are obstacles above the unit
More than 500
More than 1000
Less than 500
1 For separate installation location
2 For multiple units (more than 2 units)
More than 1000
More than 150
2 For multiple units (more than 2 units)
Less than 500
More than
1000
More than 1000
More than 150
(C) If there are obstacles on both the intake and discharge
If there is an obstacle that is higher than the unit on the intake side.
(There is no limit to the height of the obstacle above the discharge.)
Pattern 1
More than
500
More than
100
1 For separate installation location
If the upper part is open
2 For multiple units (more than 2 units)
More than
1000
More than
300
