Panasonic Inverter R32 Series User Manual

1
1-11-45

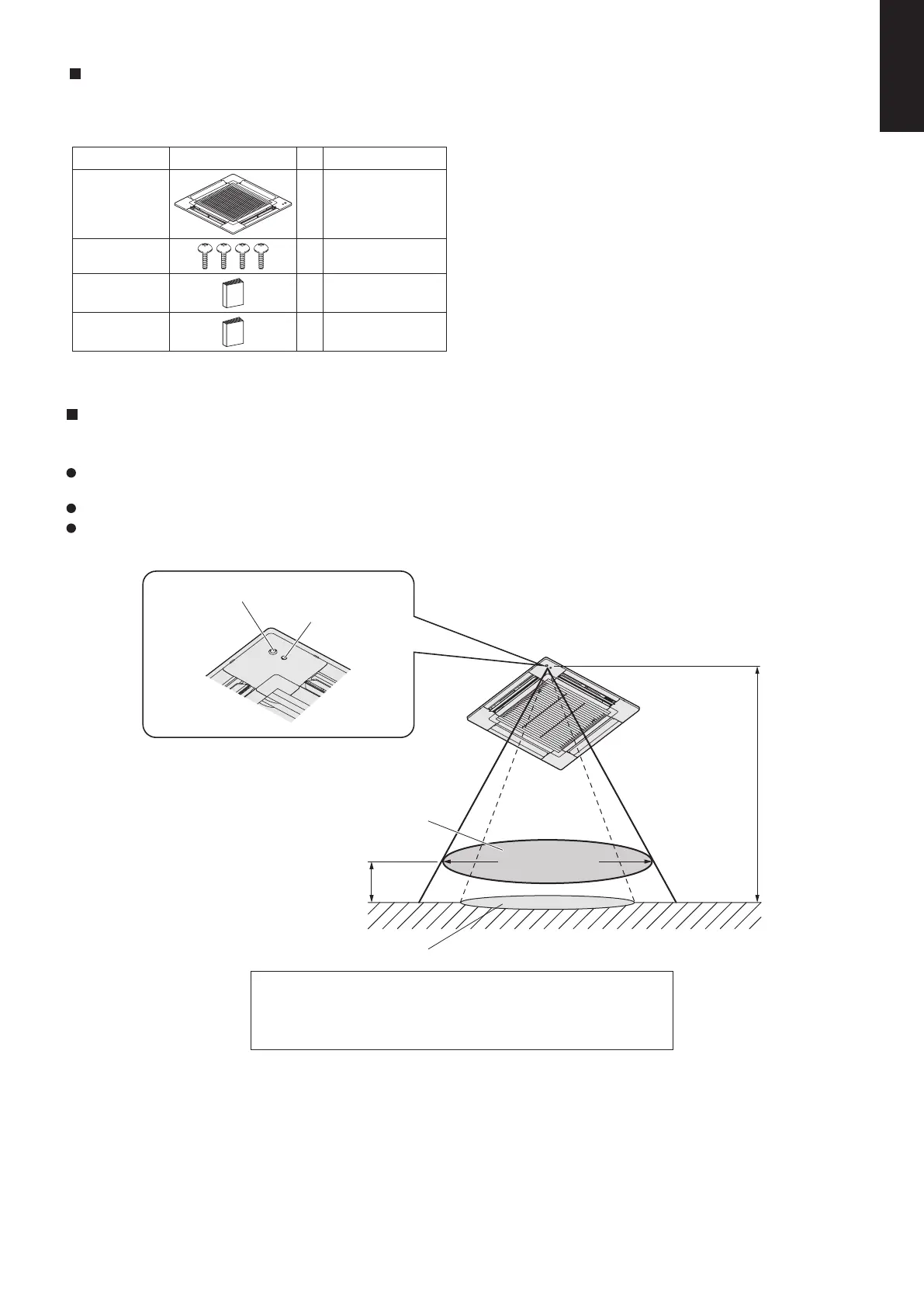

Panel for Cassette (ECONAVI type)
CZ-KPU3A
Applicable indoor unit : 4-Way Cassette
Accessories Supplied
Part Name
Figure
Q’ty
Remarks
ECONAVI
panel
1 ECONAVI type
Screw
44 × 12
Operating
Instructions
1
Installation
Instructions
1
Since the accessories need for installation work, do not dispose
of them until the unit of work is complete.
CAUTION ON INSTALLATION
Criteria for Human Detection Area
A place where the blind angle of the Human Detection Sensor cannot detect human.
Install the panel for cassette (ECONAVI type) so that human motion can be detected.
If there is a heat source or cooling unit in the detection area, the sensor cannot occasionally detect properly.
The Floor Temperature Sensor detects within the sensor area of Human Detection Sensor.
Human Detection Sensor
Floor Temperature Sensor
Detection area of Human Detection Sensor
1 m above floor visual range
Installation
height:
2.7 - 5 m
Detection area of Floor Temperature Sensor
Approx. ø7 - 9 m
Criteria of human detection sensor area
Installation height of indoor unit 2.7 m : Approx. ø7 m
Installation height of indoor unit 4 m : Approx. ø8 m
Installation height of indoor unit 5 m : Approx. ø9 m
Do not install at the following locations. (Cause of trouble and malfunction)
• Humid, oily, frequent vibration
• Direct sunlight and near by heat source
• Frost
SM830266-00_大洋州向けR32シングルTD&SM.indb 45 18/03/29 10:20:35

Panasonic Inverter R32 Series Specifications

General

Refrigerant	R32
Inverter Technology	Yes
Power Supply	220-240V, 50Hz
Cooling Capacity	Varies by model (e.g., 2.5kW, 3.5kW, 5.0kW)
Heating Capacity	Varies by model (e.g., 2.70 kW - 8.60 kW)
Energy Efficiency Ratio (EER)	Varies by model (e.g., Up to 4.40)
Air Purification	PM2.5 Filter
Noise Level (Indoor Unit)	19 dB(A)
Outdoor Unit Dimensions (W x H x D)	780 x 540 x 285 mm
Air Flow (Indoor Unit)	Varies by model
Air Flow (Outdoor Unit)	Varies by model
Noise Level (Outdoor Unit)	45-55 dB(A)
