1.4 Overview

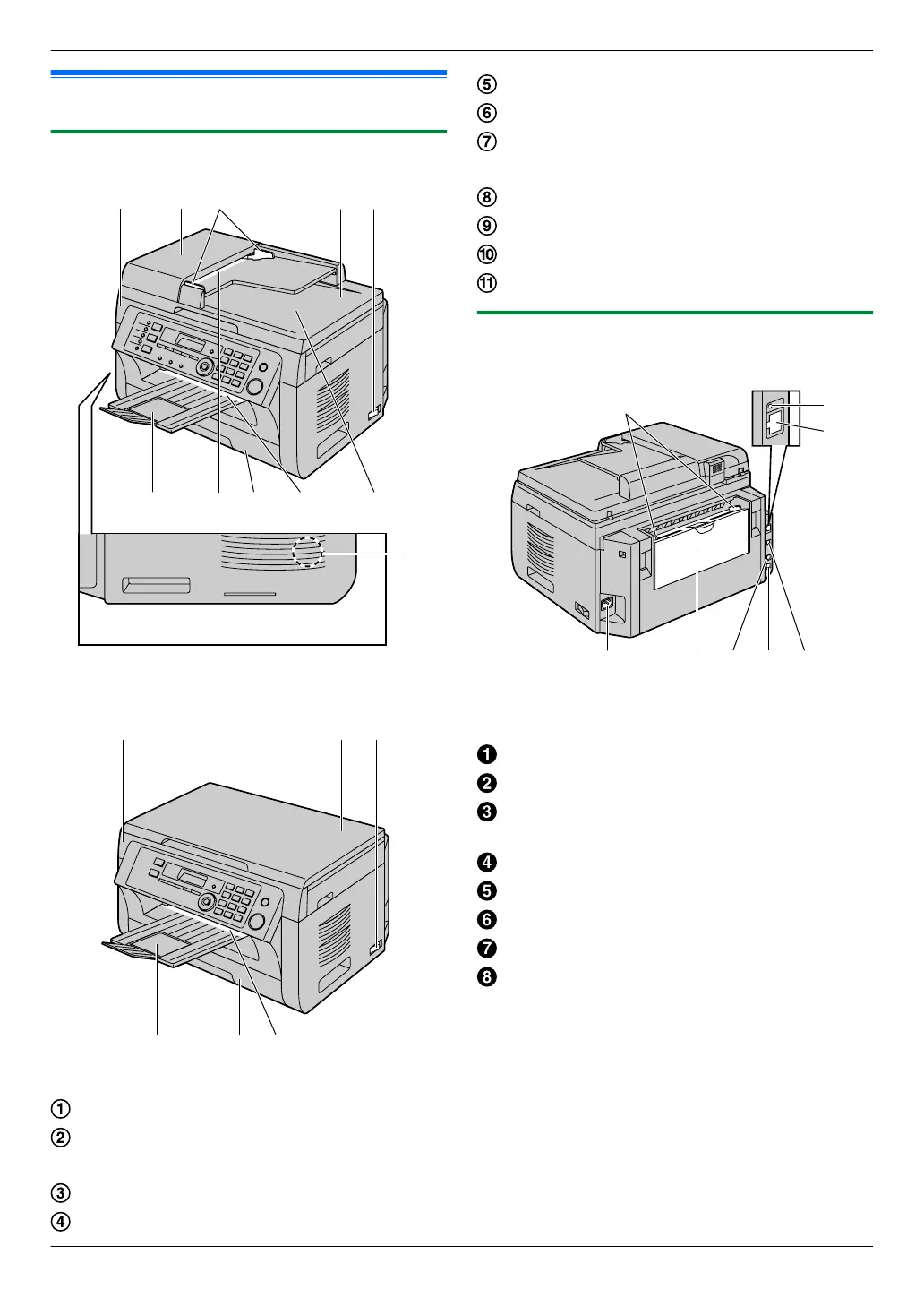

1.4.1 Front view
AB DC
HGIJ
K
F
E
* The pictured model is KX-MB2030.
A D E
H IF
* The pictured model is KX-MB2000.
Top cover
ADF (Automatic Document Feeder) cover
(KX-MB2010/KX-MB2030 only)
Document guides (KX-MB2010/KX-MB2030 only)
Document cover
Power switch
Output tray
Document entrance (KX-MB2010/KX-MB2030
only)
Paper input tray
Recording paper exit
Document exit (KX-MB2010/KX-MB2030 only)
Speaker (KX-MB2030 only)
1.4.2 Rear view
A
E GD F H
C
B
* The pictured model is KX-MB2030.
Recording paper guides
LED
LAN interface connector
R 10Base-T/100Base-TX
Power inlet
Manual input tray (Rear cover)
External telephone jack (KX-MB2030 only)
Telephone line jack (KX-MB2030 only)
USB interface connector
