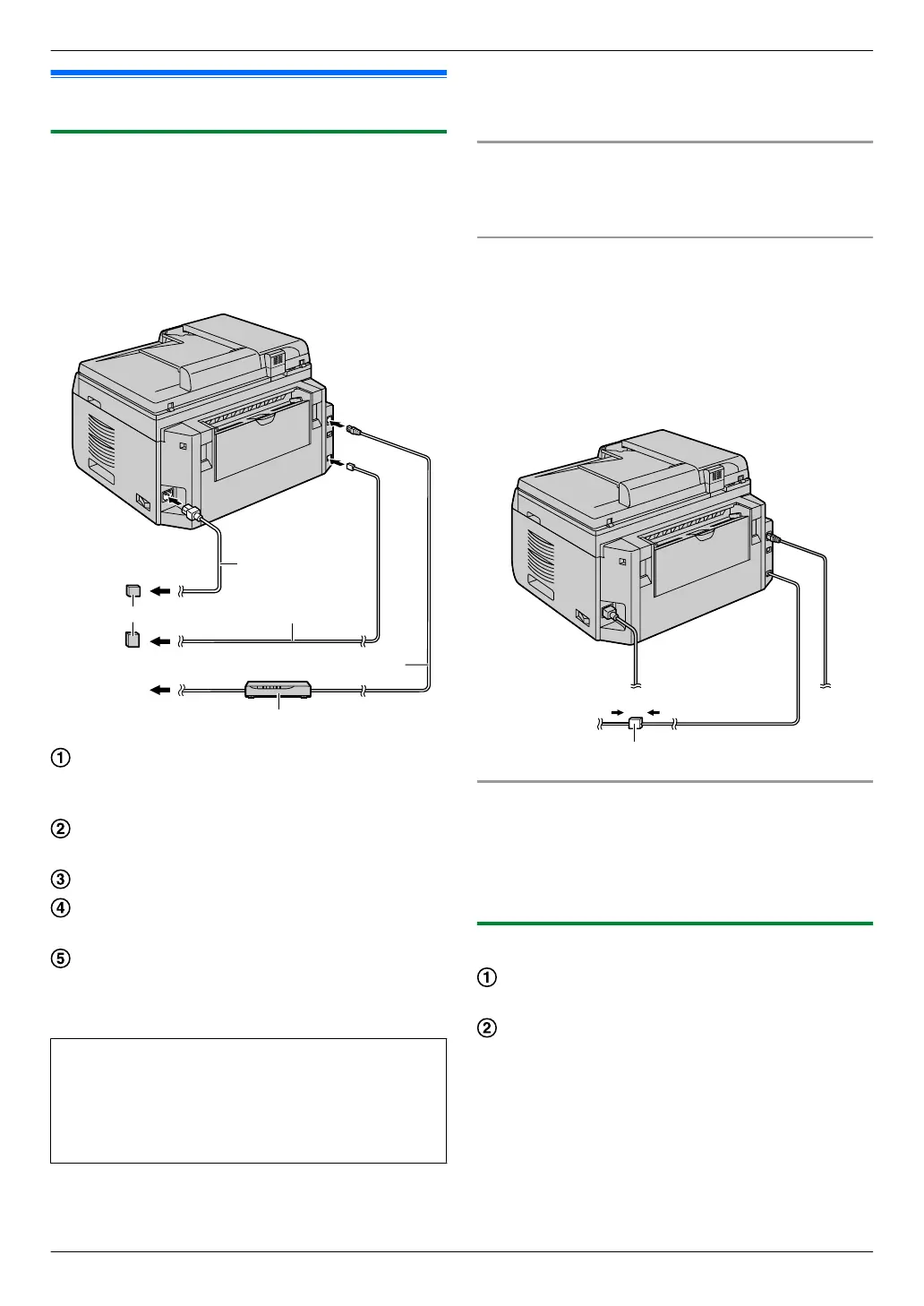

2.1 Connections
2.1.1 Base unit
Caution:
R When you operate this product, the power outlet
should be near the product and easily accessible.
Important:
R See page 18 to connect the handset unit.
Power cord
R Connect to a power outlet
(120 V, 60 Hz).
Telephone line cord
R Connect to a single telephone line jack (RJ11C).
To the Internet
Network router/Network hub (not supplied)
R Also connect networked computers.
LAN cable (not supplied)
R To assure continued emission limit compliance,
use only shielded LAN cable (Category 5 (Cat-5)
Ethernet cable).
IMPORTANT NOTICE FOR THE USB
CONNECTION
R DO NOT CONNECT THE UNIT TO A
COMPUTER WITH THE USB CABLE UNTIL
PROMPTED TO DO SO DURING THE SETUP
OF MULTI-FUNCTION STATION (page 31).
Note:
R Do not place any objects within 10 cm (4 inches) of
the right, left and back sides of the base unit.
R
If any other device is connected to the same
telephone line, this unit may disturb the network
condition of the device.
Using surge protectors
R The warranty does not cover damage due to power
line surges or lightning. For additional protection, we
recommend using a surge protector (F).
If the unit shares a single telephone line with a DSL
service
Fax transmission/reception may be disturbed, noise
interference may be heard during telephone
conversations, or Caller ID (page 54) may not function
properly. Please attach a DSL filter (G) to the telephone
line cord of the unit to prevent this. A DSL filter may be
provided by your DSL service provider.
Using network router/network hub
R We recommend using network routers/network hubs
(D) under secure network environments. Consult
your network administrator for firewall settings, etc.
R The warranty does not cover damage due to security
problems or any inconveniences relating to it.
2.1.2 Charger unit (KX-MB2060 optional)
AC adaptor
R Connect to a power outlet (120 V, 60 Hz).
Hooks
R Fasten the AC adaptor cord to prevent it from
being disconnected.
For assistance, please visit http://www.panasonic.com/help
21
