KX-T7730CA

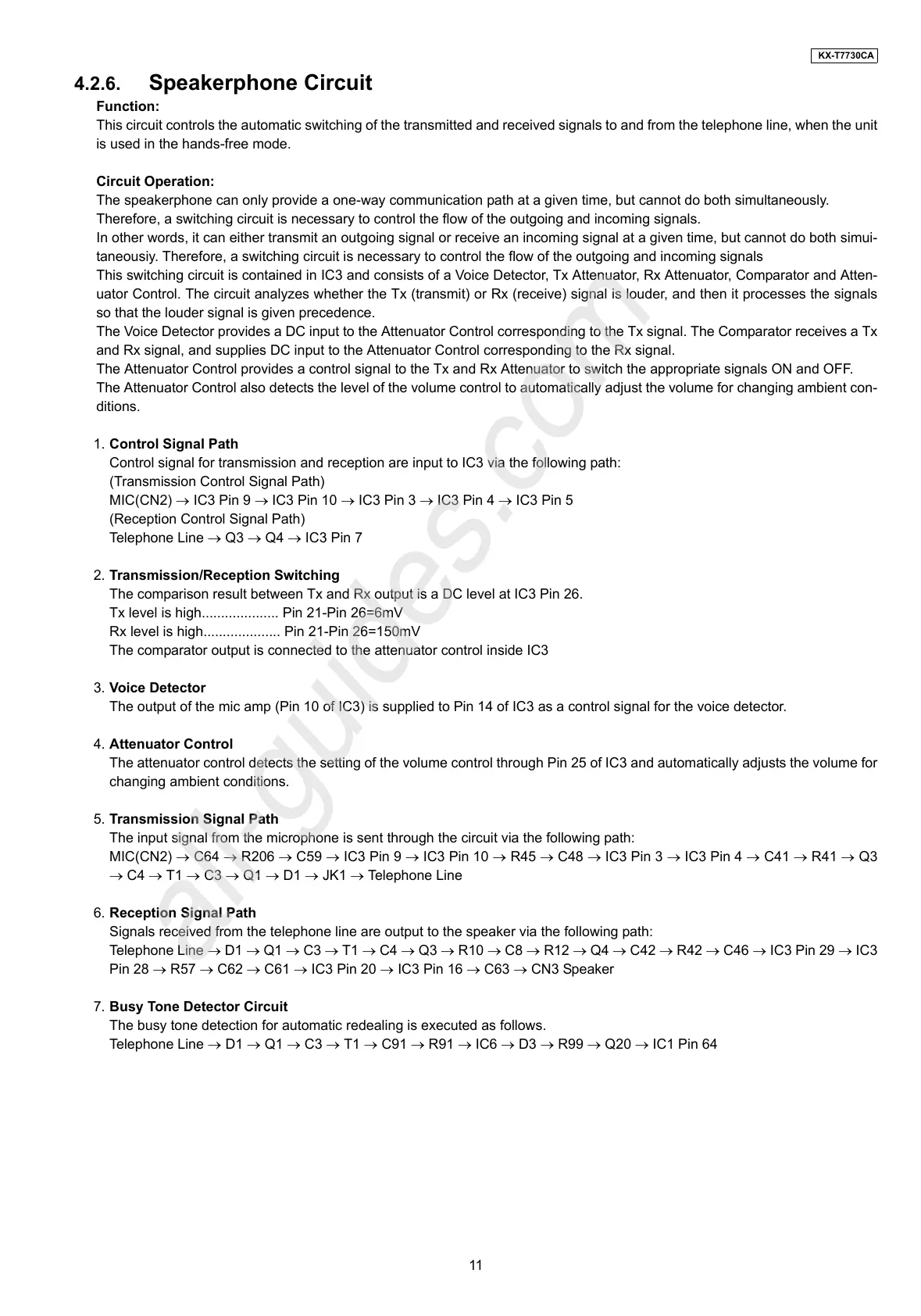

4.2.6. Speakerphone Circuit
Function:
This circuit controls the automatic switching of the transmitted and received signals to and from the telephone line, when the unit
is used in the hands-free mode.
Circuit Operation:
The speakerphone can only provide a one-way communication path at a given time, but cannot do both simultaneously.
Therefore, a switching circuit is necessary to control the flow of the outgoing and incoming signals.
In other words, it can either transmit an outgoing signal or receive an incoming signal at a given time, but cannot do both simui-
taneousiy. Therefore, a switching circuit is necessary to control the flow of the outgoing and incoming signals
This switching circuit is contained in IC3 and consists of a Voice Detector, Tx Attenuator, Rx Attenuator, Comparator and Atten-
uator Control. The circuit analyzes whether the Tx (transmit) or Rx (receive) signal is louder, and then it processes the signals
so that the louder signal is given precedence.
The Voice Detector provides a DC input to the Attenuator Control corresponding to the Tx signal. The Comparator receives a Tx
and Rx signal, and supplies DC input to the Attenuator Control corresponding to the Rx signal.
The Attenuator Control provides a control signal to the Tx and Rx Attenuator to switch the appropriate signals ON and OFF.
The Attenuator Control also detects the level of the volume control to automatically adjust the volume for changing ambient con-
ditions.
1. Control Signal Path
Control signal for transmission and reception are input to IC3 via the following path:
(Transmission Control Signal Path)
MIC(CN2) → IC3 Pin 9 → IC3 Pin 10 → IC3 Pin 3 → IC3 Pin 4 → IC3 Pin 5
(Reception Control Signal Path)
Telephone Line → Q3 → Q4 → IC3 Pin 7
2. Transmission/Reception Switching
The comparison result between Tx and Rx output is a DC level at IC3 Pin 26.
Tx level is high.................... Pin 21-Pin 26=6mV
Rx level is high.................... Pin 21-Pin 26=150mV
The comparator output is connected to the attenuator control inside IC3
3. Voice Detector
The output of the mic amp (Pin 10 of IC3) is supplied to Pin 14 of IC3 as a control signal for the voice detector.
4. Attenuator Control
The attenuator control detects the setting of the volume control through Pin 25 of IC3 and automatically adjusts the volume for
changing ambient conditions.
5. Transmission Signal Path
The input signal from the microphone is sent through the circuit via the following path:
MIC(CN2) → C64 → R206 → C59 → IC3 Pin 9 → IC3 Pin 10 → R45 → C48 → IC3 Pin 3 → IC3 Pin 4 → C41 → R41 → Q3
→ C4 → T1 → C3 → Q1 → D1 → JK1 → Telephone Line
6. Reception Signal Path
Signals received from the telephone line are output to the speaker via the following path:
Telephone Line → D1 → Q1 → C3 → T1 → C4 → Q3 → R10 → C8 → R12 → Q4 → C42 → R42 → C46 → IC3 Pin 29 → IC3
Pin 28 → R57 → C62 → C61 → IC3 Pin 20 → IC3 Pin 16 → C63 → CN3 Speaker
7. Busy Tone Detector Circuit
The busy tone detection for automatic redealing is executed as follows.
Telephone Line → D1 → Q1 → C3 → T1 → C91 → R91 → IC6 → D3 → R99 → Q20 → IC1 Pin 64
