Panasonic KX-TDA100D

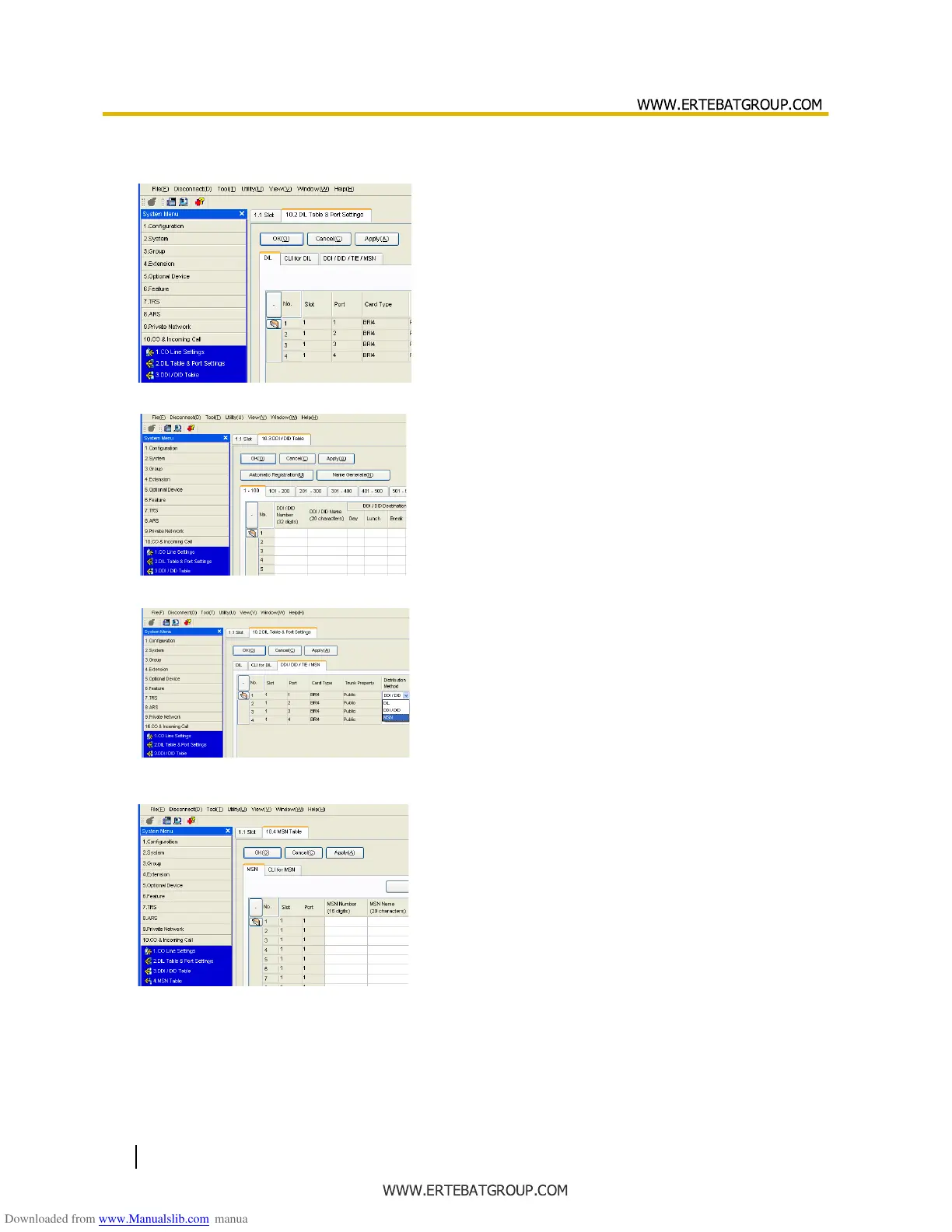

Assigning the Incoming Trunk Call Destination
For analogue trunk users (DIL Setting):
1. Under CO & Incoming Call, click DIL Table & Port
Settings.
2. Confirm that the DIL tab is selected.
3. Configure the settings as required.
4. Click OK.
For ISDN trunk users (DDI Setting):
1. Under CO & Incoming Call, click DDI / DID Table.
2. Configure the settings as required.
3. Click OK.
For ISDN trunk users (MSN Setting):
1. Under CO & Incoming Call, click DIL Table & Port
Settings.
2. Click the DDI / DID / TIE / MSN tab.
3. Set the Distribution Method of the desired ports to
MSN.
4. Click OK.
5. Click MSN Table.
6. Click the MSN tab.
7. Configure the settings as required.
8. Click OK.
26 Getting Started
4.3 Programming the PBX
