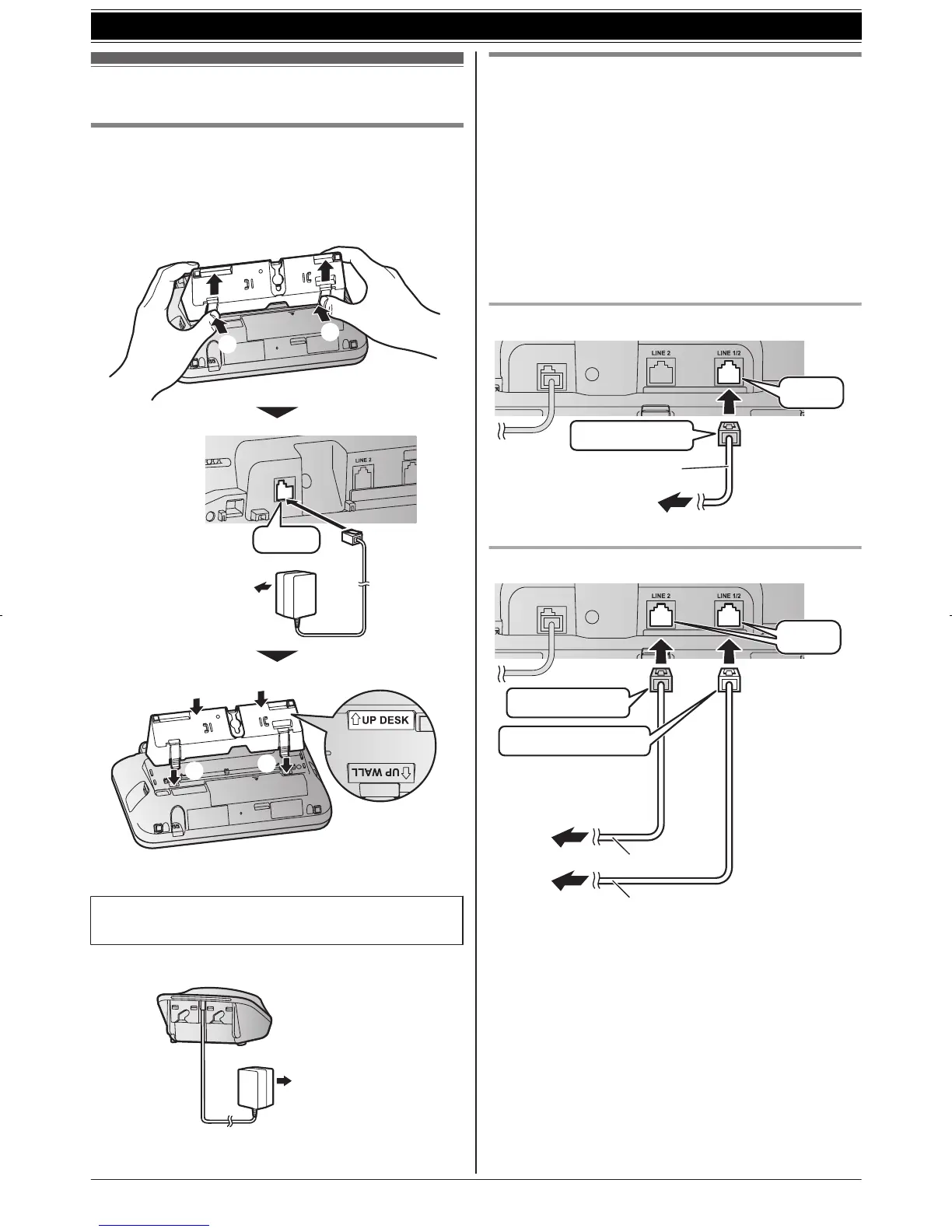

Setting up
Connecting the AC adaptor
n Base unit
R Use only the supplied Panasonic AC adaptor
PNLV234.
A
A
BB
BB
B
B
A
A
To power outlet
“Click”
R The words “UP DESK” should be facing up.
R Follow the directions on the display to set up
the unit.
n Charger
Connecting the telephone line cord
Refer to one of the following methods depending
on your situation:
– To connect to a 2-line telephone jack: page 9
– To connect to 2 single-line telephone jacks:
page 9
– If you use the unit as a single-line telephone
only: page 10
Connect the telephone line cord until it clicks into
the base unit and telephone line jack.
To connect to a 2-line telephone jack
4-wire cord
To 2-line telephone
jack (RJ14C)
“GREEN” plug
“Click”
To connect to 2 single-line telephone jacks
To single-line
telephone jacks
(RJ11C)
“GREEN” plug
“Click”
“Transparent” plug
4-wire cord
2-wire cord
Line 2
Line 1
For assistance, please visit http://www.panasonic.com/help
9
Getting Started
TG954x(en)_0528_ver011.pdf 9 2013/05/28 11:09:51
