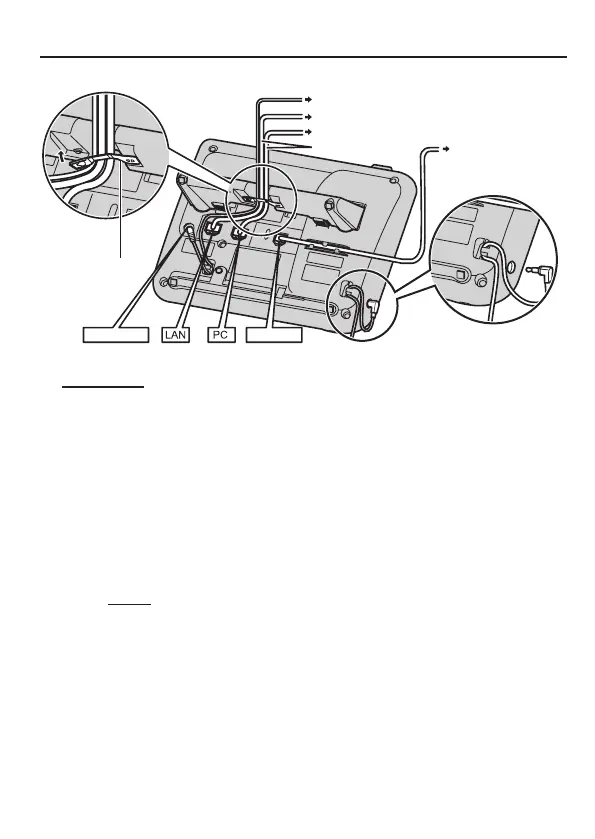

Connections
19
For KX-UT113/KX-UT123:
To a switching hub
To a PC (KX-UT123 only)
To a handset jack
(handset)
Optional AC adaptor
AC adaptor
Headset
Handset
Ethernet cables
Clamp
CAUTION
Optional AC Adaptor
• Use the following Panasonic AC adaptor:
KX-A239AL (PQLV206AL)/KX-A239BX (PQLV206CE)/KX-A239UK
(PQLV206E)/KX-A239X (PQLV206)/KX-A239EJ (PQLV206E)
• The AC adaptor is used as the main disconnect device. Ensure that
the AC outlet is installed near the unit and is easily accessible.
When connecting a headset
• Ensure that the headset cord has slack and is not pulled tight during
use to prevent damage to the connectors.
• Cords used to connect devices to the EHS jack or headset jack must
be less than 3 m in length.
Notice
• The following headsets can be used with this unit. (Not all
operations with the headsets can be guaranteed.)
– Wired headsets
Panasonic KX-TCA400, KX-TCA430, RP-TCA400, and
RP-TCA430
– EHS headsets (KX-UT133/KX-UT136 only)
Selected Plantronics
®
-brand headsets
For up-to-date information about headsets that have been tested
with this unit, refer to the following web sites:
http://panasonic.net/pcc/support/sipphone
