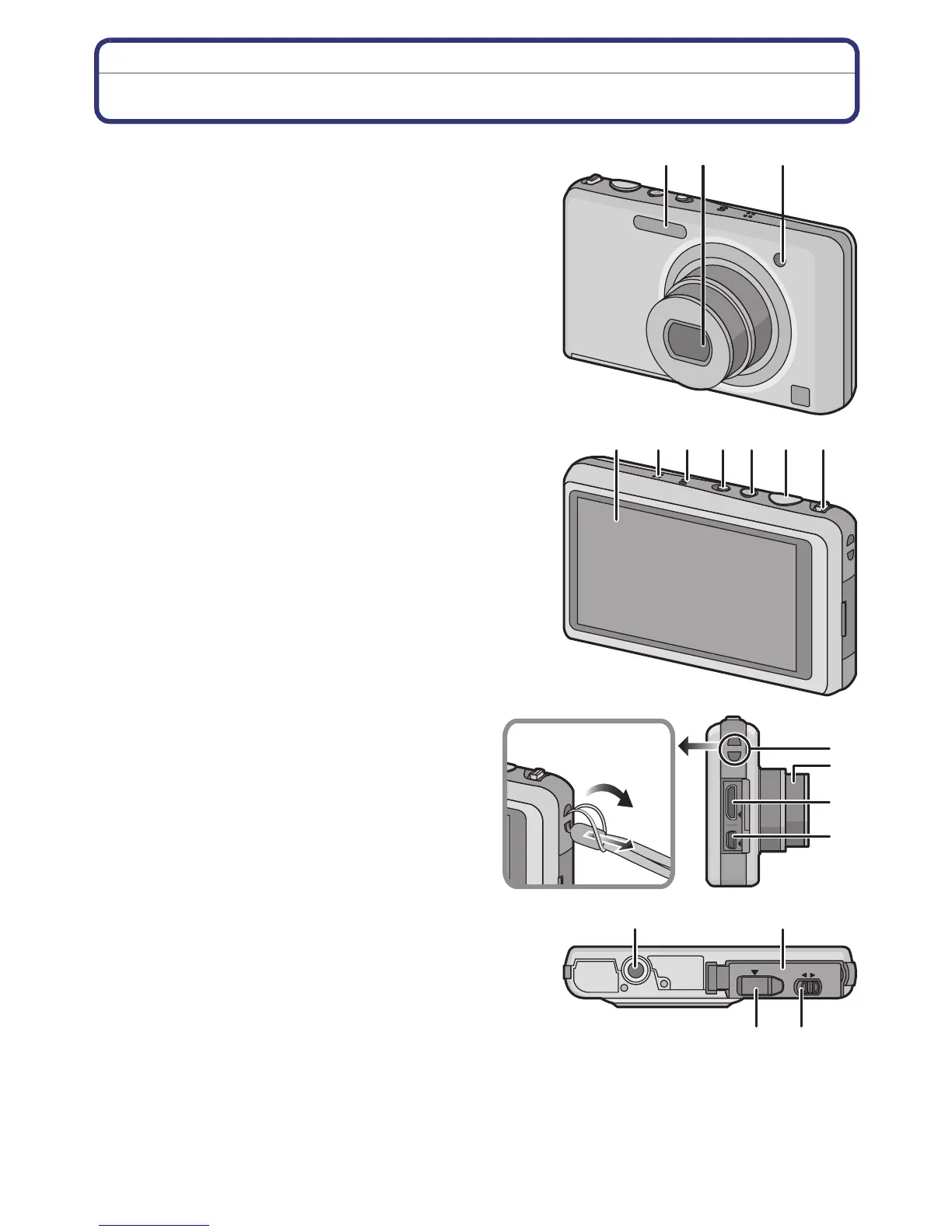

Names of the Components
1Flash (P20)
2 Lens (P4, 139)
3 Self-timer indicator (P74)
AF Assist Lamp (P88)
4 Touch panel/LCD monitor (P7, 46, 135)
5 Speaker (P38)
6 Microphone
7 Camera ON/OFF switch (P16)
8 Motion picture button (P26)
9 Shutter button (P19, 30)
10 Zoom lever (P49)
11 Strap eyelet
•
Be sure to attach the strap when using
the camera to ensure that you will not
drop it.
12 Lens barrel
13 [HDMI] socket (P118, 120)
14 [AV OUT/DIGITAL] socket (P117, 125,
128, 131)
15 Tripod receptacle
16 Card/Battery door (P11)
17 Release lever (P11)
18 DC coupler cover (P12)
•
When using an AC adaptor, ensure that
the Panasonic DC coupler (optional) and
AC adaptor (optional) are used. For
connection details, refer to P12.
