Before Use

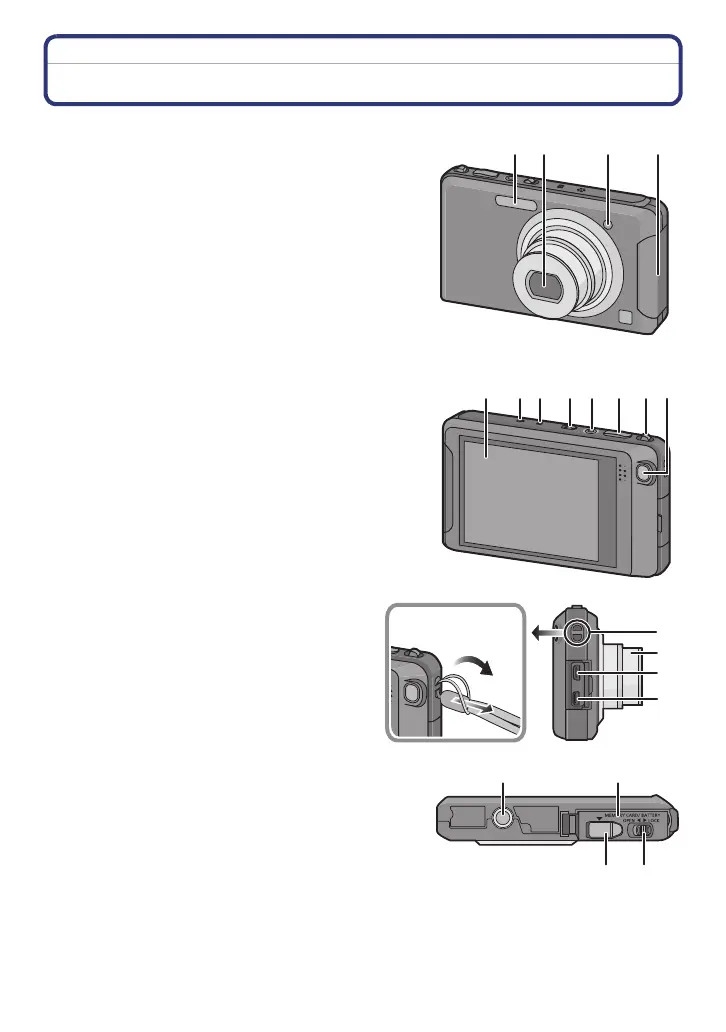

Names and Functions of Main Parts
1Flash (P73)
2 Lens (P5, 164)
3 Self-timer indicator (P76)
AF Assist Lamp (P91)
4Wi-Fi
R
Transmitter (P125)
5 Touch panel/LCD monitor (P8, 49, 161)
6 Speaker (P41)
7 Microphone
8 Camera ON/OFF switch (P17)
9 Motion picture button (P27)
10 Shutter button (P21, 24)
11 Zoom lever (P53)
12 [Wi-Fi] button (P141)
13 Strap eyelet
•
Be sure to attach the strap when using
the camera to ensure that you will not
drop it.
14 Lens barrel
15 [HDMI] socket (P144, 146)
16 [AV OUT/DIGITAL] socket (P144, 151,
154, 157)
17 Tripod receptacle
18 Card/Battery door (P12)
19 Release lever (P12)
20 DC coupler cover (P13)
•
When using an AC adaptor, ensure that
the Panasonic DC coupler (For shop
display purpose only) and AC adaptor
(optional) are used. For connection details,
refer to P13.
1 2 3 4
10 11 1298765
15
16
14


13
17 18
19
20
