Preparations
SQT1120 (ENG)
10
1
4
3
2
13 14
15
16
1
19 20 21 22 23 24 25
5 6
7
8
9
10
11 12
1
Shoulder strap eyelet (→13)
2
Shutter button (→18)
3
Zoom lever (→18)
4
Self-timer indicator /
AF Assist Lamp
5
[ ] (Exposure Compensation) button /
[Fn1] button (→24)
6
Motion picture button (→34)
7
[Fn2] button (→24)
8
Wi-Fi
®
connection lamp
9
Rear dial (→20)
10
Status indicator (→17)
11
Camera [ON/OFF] switch (→17)
12
Mode dial (→19)
Use this to select the recording mode.
13
Flash
14
Stereo microphone
Be careful not to cover the microphone
with your finger. Doing so may make
sound difficult to record.
15
Hot shoe
16
Flash open lever
The flash opens, and recording with the
flash becomes possible.
17
Diopter adjustment dial (→22)
18
[LVF] button (→22) /
[Fn4] button (→24)
19
[MIC] socket
An external microphone (optional) can
record higher quality audio than the
built-in microphone.
20
Speaker
Be careful not to cover the speaker with
your finger. Doing so may make sound
difficult to hear.
21
Side dial (→20)
22
Side button (→21)
23
Side lever (→18)
24
Lens barrel
25
Lens

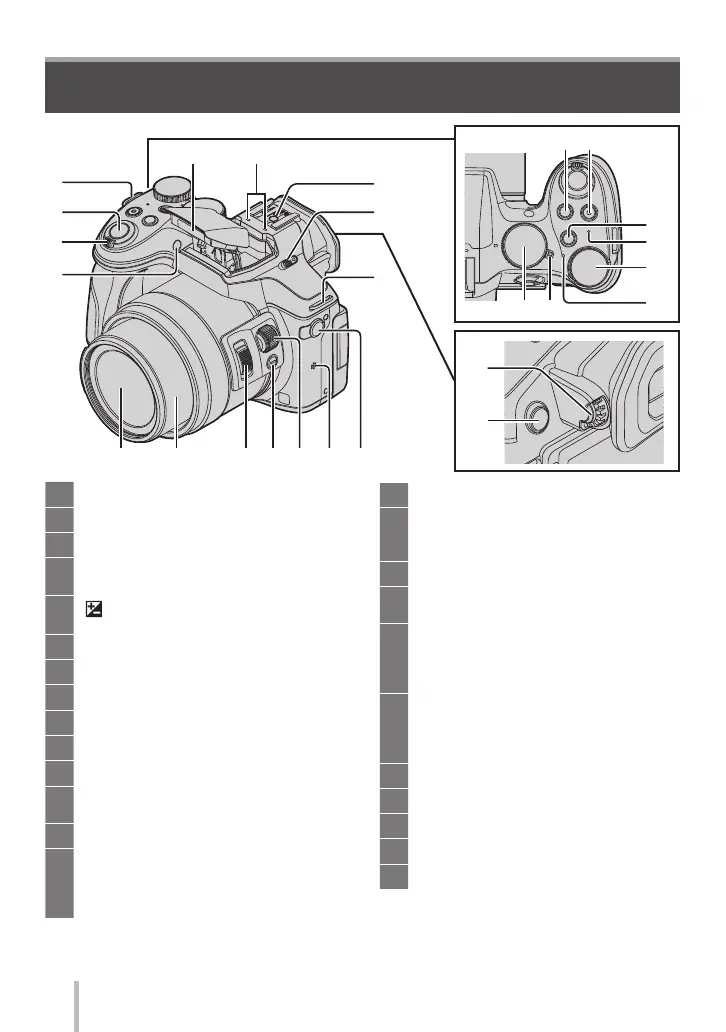

Names and Functions of Main Parts
