Before Use
Names and Functions of Components

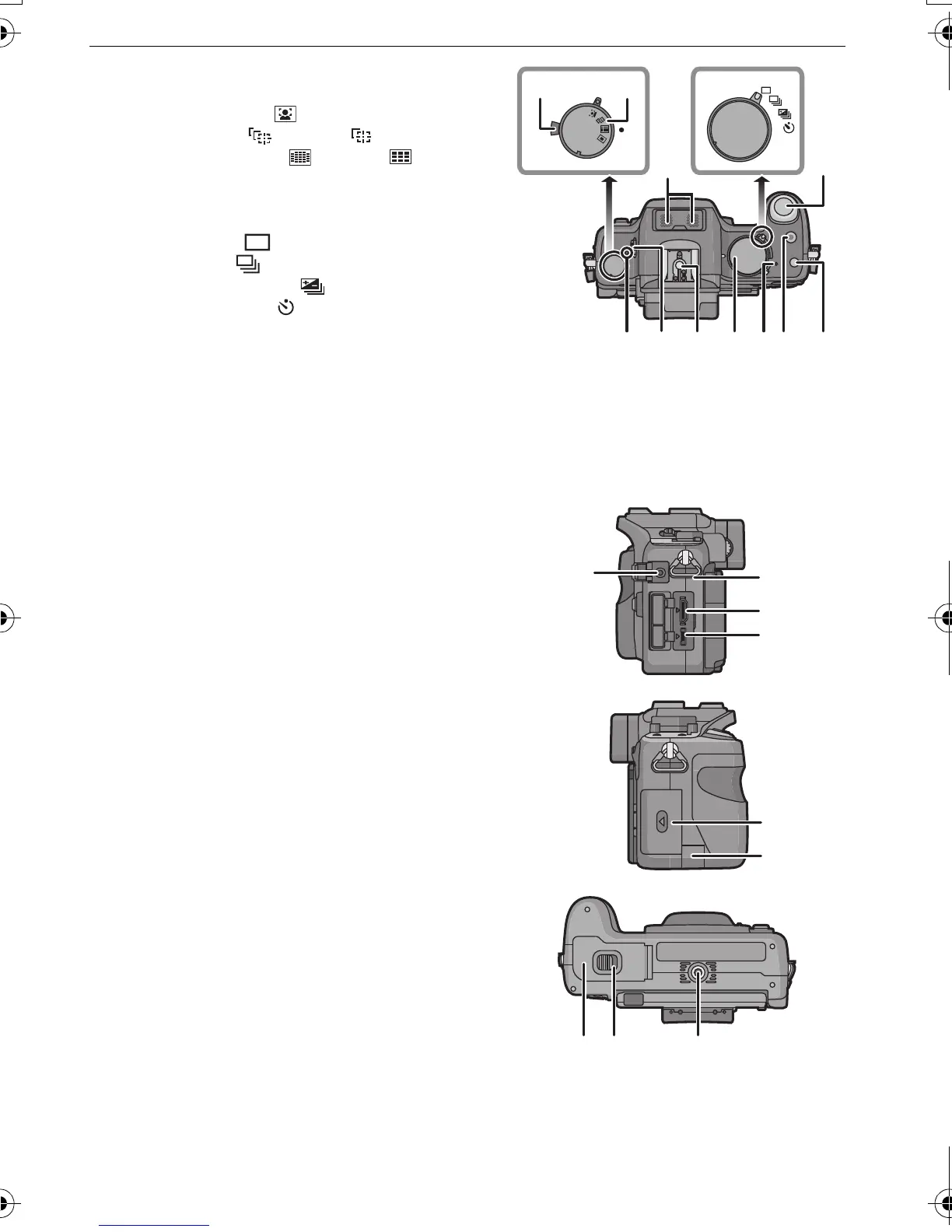

∫ Camera body
1 Flash (P69)
2 Sensor
3 Self-timer indicator (P81)/
AF Assist Lamp (P132)
4 Lens release button (P22)
5 Lens lock pin
6 Mount
7 Lens fitting mark (P21)
8 [LVF/LCD] button (P16)
9 Diopter adjustment dial (P16)
10 Viewfinder (P16, 64, 174)
11 Eye sensor (P16)
12 Playback button (P39, 46)
13 [AF/AE LOCK] button (P87)
14 Camera ON/OFF switch (P31)
15 Rear dial (P18)
16 [DISPLAY] button (P40, 64, 96)
17 Eye Cup (P178)
18 Touch panel/LCD monitor (P16, 39, 64,
174)
19 [Q.MENU] button (P49, 56, 84)
20 Delete button (P52)/
Preview button (P96)
21 [MENU/SET] button (P17, 55)
22 Cursor buttons (P17)
3/ISO (P91)
1/WB (White Balance) (P88)
2/Function 2 button (P18)
4/Function 3 button (P18)
10 12
18 19
89
11 13 14
22
15 16
17 20 21
