Panasonic Lumix DMC-GH4 Basic Owner's Manual

87
Others
(ENG) VQT5H68
Playing Back Pictures on a TV Screen
1
Connect the camera and a TV.
• Check the direction of the terminals and plug in/out straight holding onto the plug.
(It may result in malfunction by the deforming of the terminal if it is plugged in obliquely
or in wrong direction.)
Do not connect devices to incorrect terminals. Doing so may cause malfunction.
2
Turn on the TV and select the input to match the connector in use.
3
Turn the camera on and then press [(].
• Input of the TV will switch automatically and playback screen is displayed when
connected to a VIERA Link compatible TV using an HDMI micro cable with the [VIERA
Link] set to [ON].
• When [System Frequency] is set to a broadcasting system different from that of your region,
images may not be played back correctly.
• Read the operating instructions for the TV.
Preparations: Turn this unit and the TV off.
To connect with an HDMI micro cable
•
Use a “High Speed HDMI micro cable” with the HDMI logo.
Cables that do not comply with the HDMI standards will not work.
“High Speed HDMI micro cable” (Type D–Type A plug, up to 2 m (6.6 feet) long)

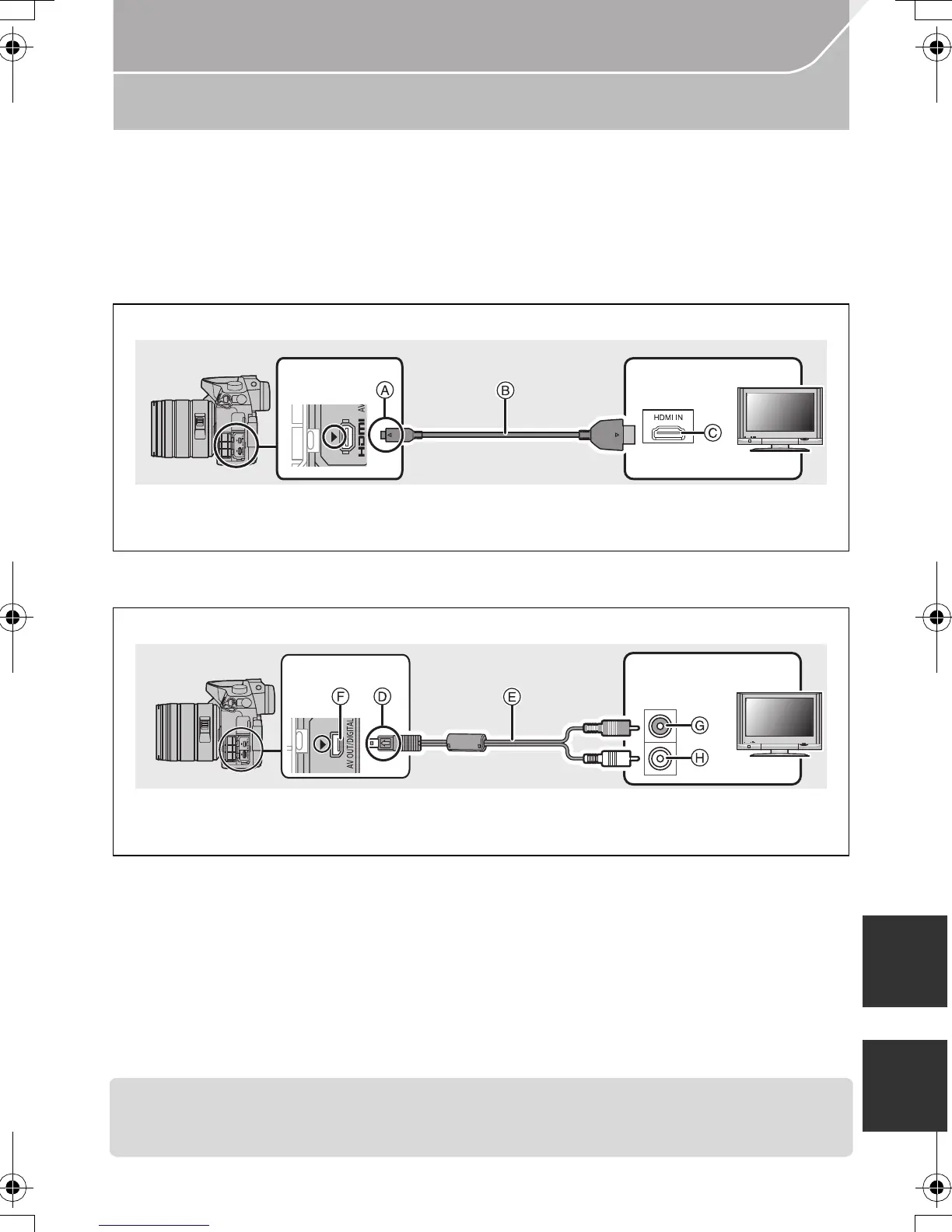

A Align the marks, and insert.
B HDMI micro cable
C HDMI socket
To connect with an AV cable (optional)
•
Always use a genuine Panasonic AV cable (DMW-AVC1: optional).
• When [System Frequency] is set to [24.00 Hz (CINEMA)], you cannot play back images on a
TV connected with an AV cable.
D Align the marks, and insert.
E AV cable (optional)
F [AV OUT/DIGITAL] terminal
• The color of the terminal is gold.
G Yellow: to the video input socket
H White: to the audio input socket
