Preparations

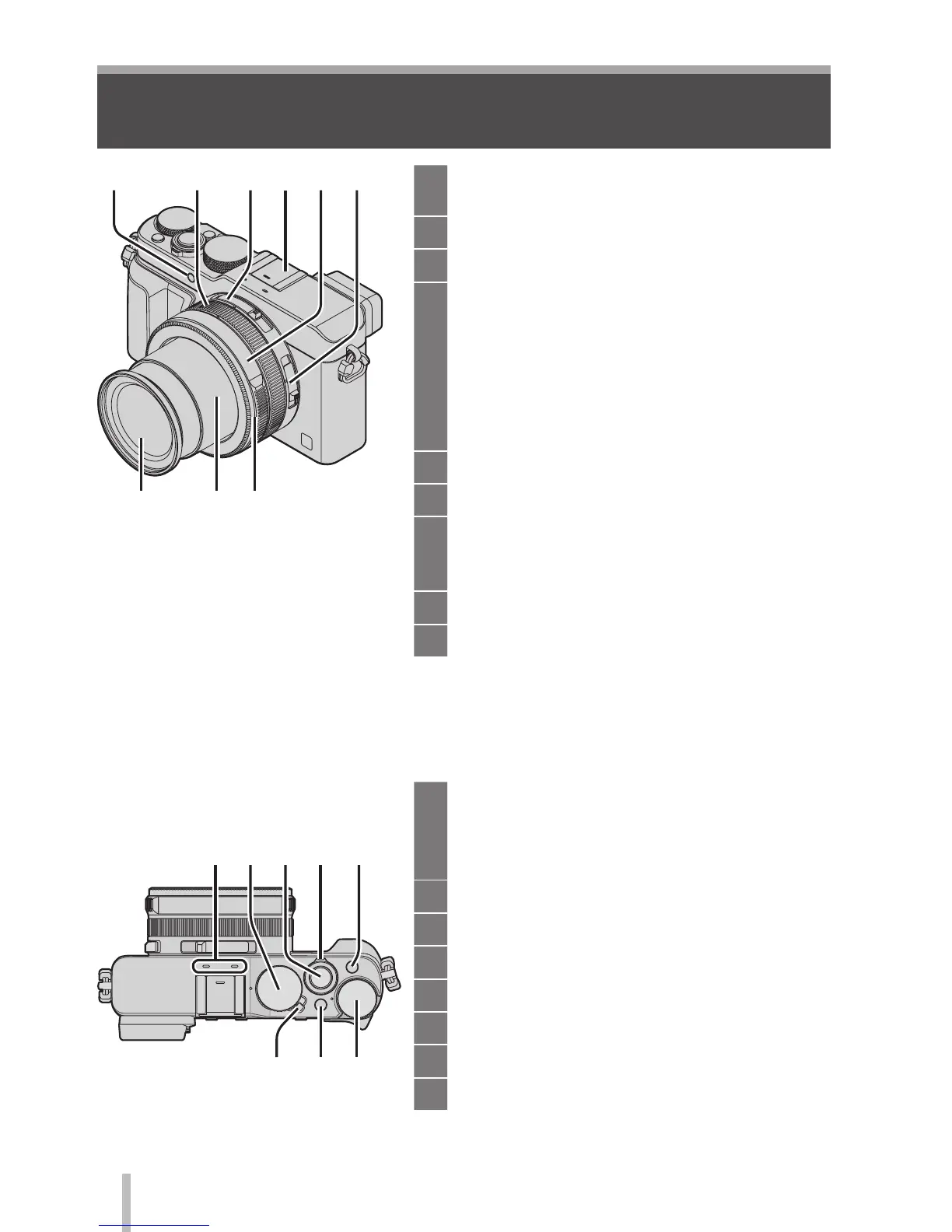

Names and Functions of Main Parts
1
Self-timer indicator (→54) /
AF Assist Lamp
2
Control ring (→22)
3
Aspect ratio selector switch (→43)
4
Hot shoe (Hot shoe cover) (→58)
• The hot shoe cover is already
attached to the hot shoe at the time
of purchase.
• Keep the hot shoe cover out
of reach of children to prevent
swallowing.
5
Aperture ring (→28)
6
Focus selector switch (→45, 46)
7
Lens front ring
To attach the auto lens cap (optional)
(→93), remove the lens front ring.
8
Lens barrel
9
Lens (Filter diameter Φ43 mm)
16
98
10
Stereo microphone
Be careful not to cover the microphone
with your finger. Doing so may make
sound difficult to record.
11
Shutter speed dial (→28)
12
Shutter button
13
Zoom lever (→56)
14
[FILTER] button (→42)
15
Exposure compensation dial (→48)
16
[iA] button (→26)
17
Camera [ON/OFF] switch
(Top)
10 11 12 1413
1617 15
7
2543
