14 VQT2R48 VQT2R48 15

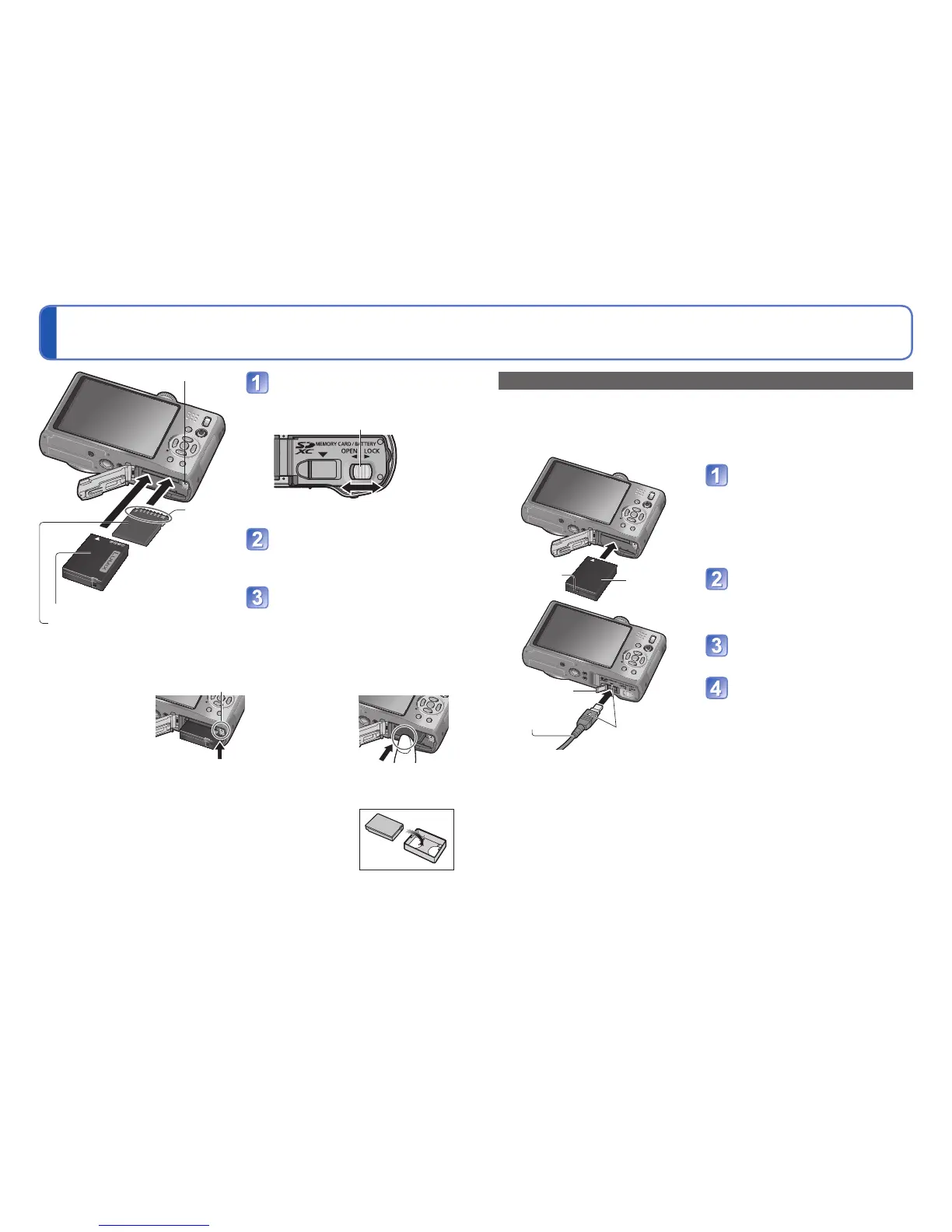

Inserting and removing the card (optional)/
the battery
Set the camera ON/OFF switch to OFF
Slide to the [OPEN] position
and open the lid
[OPEN] [LOCK]
Release lever
Completely insert battery
and card
• Battery: Push in until the lever is locked
• Memory card: Push in until it clicks
Close lid
Slide to the [LOCK] position.
■
To remove
• To remove battery: • To remove card:
move lever in
direction of arrow.
Lever press down in
centre.
●
Always use genuine Panasonic batteries.
●
If you use other batteries, we cannot guarantee the quality of this product.
●
Remove battery from camera after use.
• Store the battery in battery carrying case (supplied).
●
To remove the card or battery, turn the camera off and wait until
the LUMIX indicator on the LCD monitor goes off. (Failure to wait
may cause the camera to malfunction and may damage the card
or recorded data.)
●
Keep the Memory Card out of reach of children to prevent
swallowing.
Charged battery (check orientation)
Card (check orientation: terminals face
LCD)
Do not
touch
terminal
Using the DC coupler (optional) instead of battery
By using the AC adaptor (optional) and DC coupler (optional), you can record and play
back without worrying about the remaining battery charge.
The optional DC coupler can only be used with the designated Panasonic AC adaptor.
DC IN
terminal
DC coupler
DC coupler
cover
Align the marks to
connect
AC adaptor
Insert DC coupler instead of
battery (previous page)
Open DC coupler cover
• If difficult to open, with the card/
battery door open, press the coupler
cover from the inside to open it.
Plug AC adaptor into power
outlet
Connect AC adaptor to DC IN
terminal of DC coupler
●
Always use a genuine Panasonic AC adaptor (optional).
●
Use the AC adaptor and DC coupler specifically for this camera. Using other adaptors
or couplers could cause camera failure.
●
It may not be possible to install camera on a tripod or unipod when the DC coupler is
connected, depending on the type of tripod or unipod.
●
The camera cannot be stood up when the AC adaptor is connected. If you are leaving
the camera on a surface as you work, it is recommended to set it on a soft cloth.
●
When the AC adaptor is connected, always remove the AC adaptor when opening the
card/battery door.
●
Remove the AC adaptor and DC coupler when not in use and close the coupler cover.
●
Also read the AC adaptor and DC coupler operating instructions.
Lever
To Next Page
