Panasonic Lumix S1H

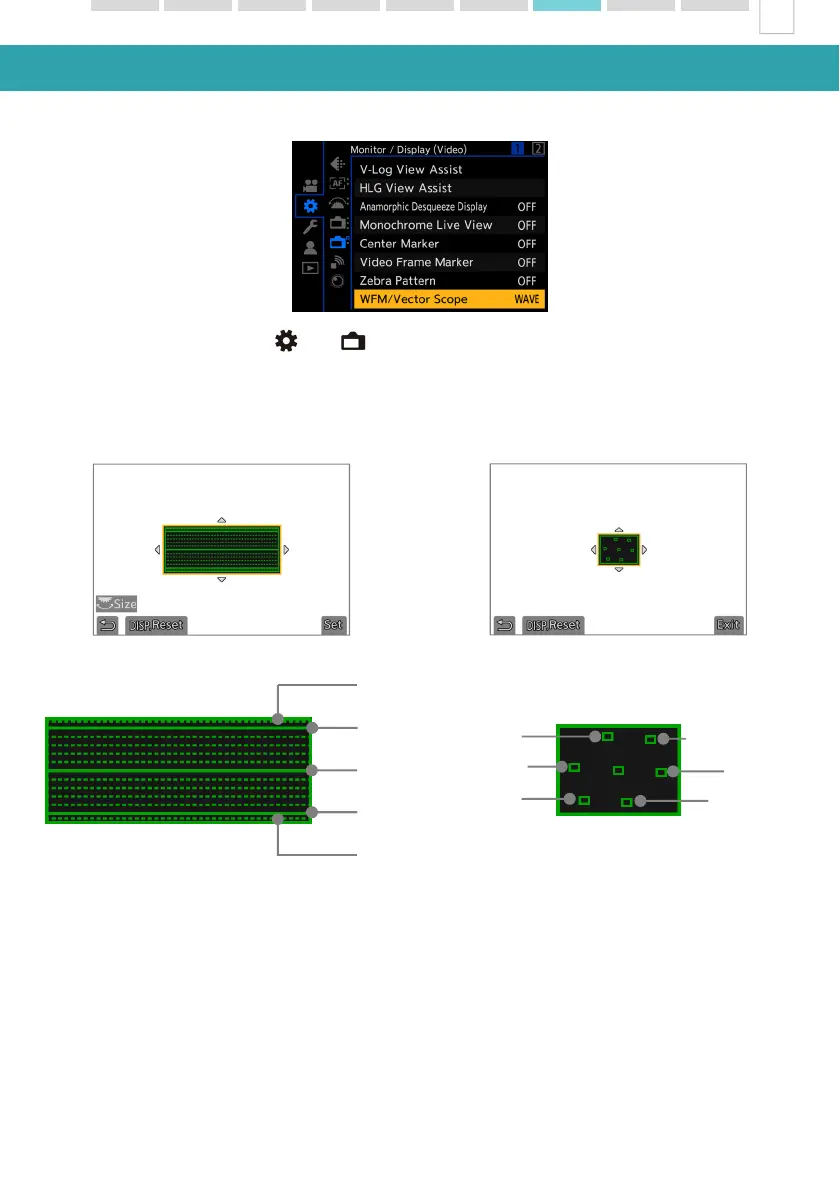

Wave Form Monitor / Vector Scope
81
7. Video Shooting Assist Functions
[ ] > [ ] > [ WFM/Vector Scope ]
Wave Form Monitor
Vector Scope
Variable (4 steps) / Moveable
Moveable
100
50
0
109
dotted line
-4
dotted line
%, IRE (Institute of Radio Engineers)
The waveform displayed on the camera
indicates the luminance as values based on
the conversions below:
• 0% (IRE): Luminance value 16 (8-bit)
• 100% (IRE): Luminance value 235 (8-bit)
R (Red)
YL (Yellow)
G (Green)
MG (Magenta)
B (Blue)
CY (Cyan)
• The waveform and vector scope are not output through HDMI.
• When [ WFM/Vector Scope ] is set, [ Histogram ] does not work.
