Panasonic MFDLNA3SE - 5 Appearance and Part Names; Product View

No. SX-DSV03015 - 6 -
Motor Business Unit, Panasonic Corporation

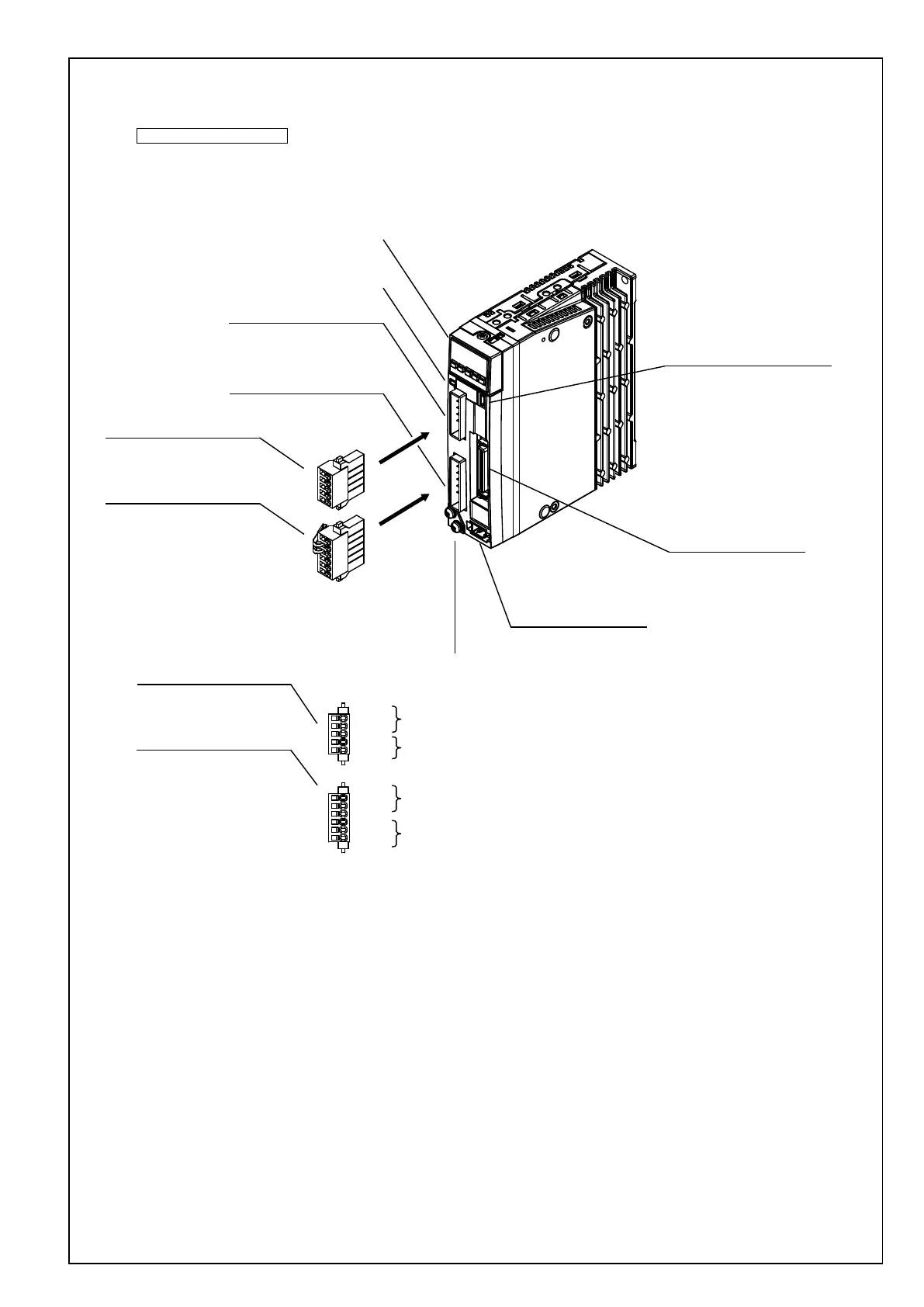

5. Appearance and part names
100 V,200 V size A, B
X1：USB connection
UB-M5BR-S14-4S(LF)(SN) (JST)
(or equivalent)
X4：Parallel I/O connection
DF02R050NA2 (JAE)
(or equivalent)
X6：Encoder connection
3E106-223AKV(3M)
(or equivalent)
XA：Power supply input connection
05JFAT-SAXGGKK-A (JST)
(or equivalent)
XB：Motor connection
06JFAT-SAXGGKK-A (JST)
(or equivalent)
XA： Power supply input
S05B-F32SK-GGXR (JST)
(or equivalent)
XB： Motor output
S06B-F32SK-GGXR (JST)
(or equivalent)
Charge lamp
Front panel
Earth connection screw
XA：Power supply input connection
XB：Motor connection
L1
L2
L3
L1C
L2C
P
N
B
U
V
W
Main power supply
input
Control power supply
input
Regenerative resistor
connection
Motor output
