Panasonic Minas A4 Series - Outline of PANATERM; Setup with the Console; How to Connect

– B29 –– B28 –
4. Parameter

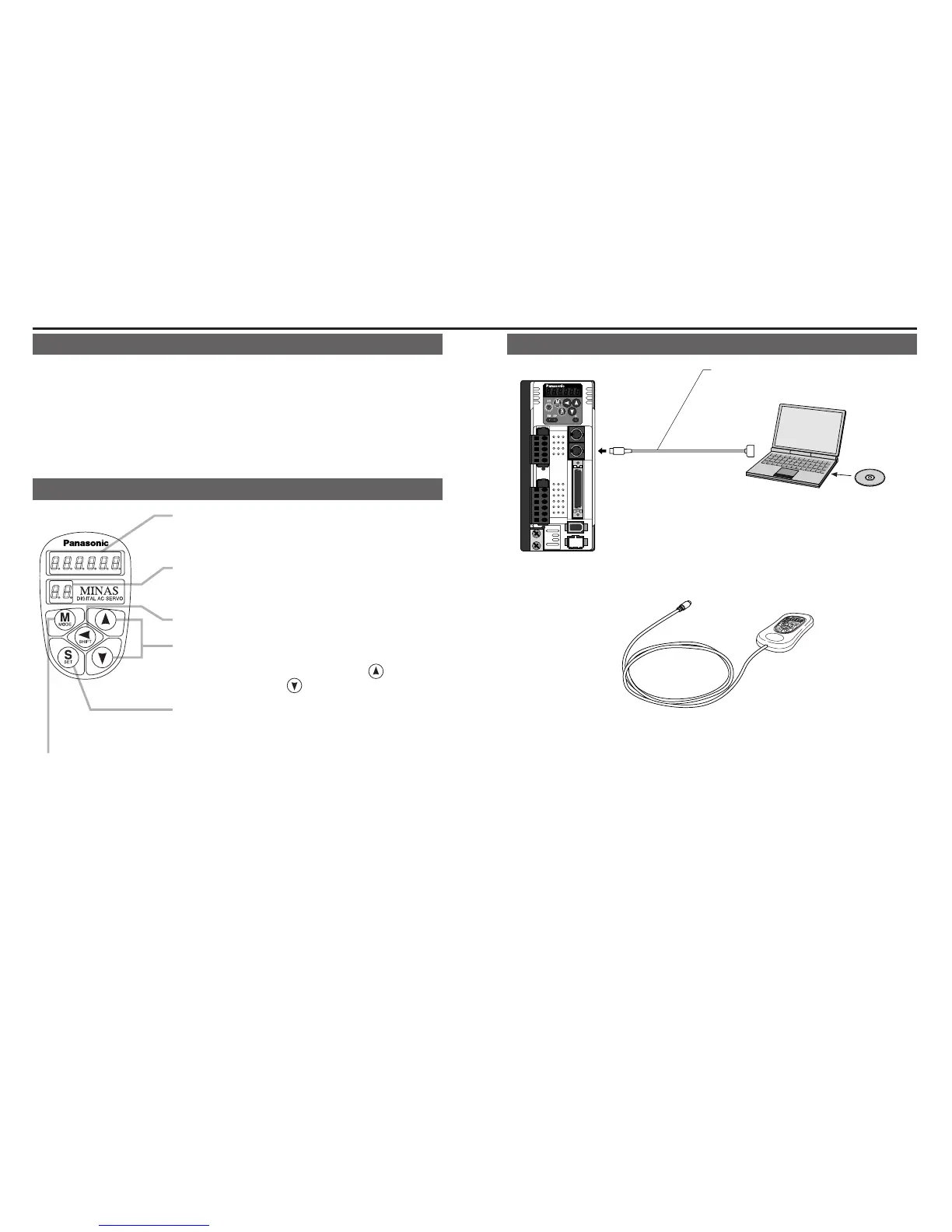

Display LED (6-digit)
All of LED will flash when error occurs, and switch t
o
error display screen.
Displays ID No. (address) of selected driver (in 2 digits).
The value set in Pr00(address) is ID No. Parameter No
.
is displayed (2 digits) at parameter setup mode.
Press this to shift the digit for data change.
Press these to change data or execute selected actio
n
of parameter.
Numerical value increases by pressing , ,
decreases by pressing .
SET Button
Press this to shift each mode which is selected b
y
mode switching button to EXECUTION display.
M
ode Switching Button Press this to switch 6 kinds of mode.
1) Monitor mode 4) Normal auto-gain tuning mode
2) Parameter setup mode 5) Auxiliary function mode
3) EEPROM write mode 6) Copy mode
Outline of PANATERM
®
With the PANATERM
®
, you can execute the followings.
1)Setup and storage of parameters, and writing to the memory (EEPROM).
2)Monitoring of I/O and pulse input and load factor.
3)Display of the present alarm and reference of the error history.
4)Data measurement of the wave-form graphic and bringing of the stored data.
5)Normal auto-gain tuning
6)Frequency characteristic measurement of the machine system.
Setup with the Console
How to Connect
Connect to CN X4
Connect to CN X4
RS232 connection cable (option)
DV0P1960 (for DOS/V machines)
Console
DV0P4420 (option)
Setup disc of setup support softwar
e,
PANATERM
®
• DV0P4460 :
English/Japanese version (option)
<Remarks>
• Connect the console connector to the connector, CN X4 of the driver securely.
• Do not pull the cable to insert/unplug.
