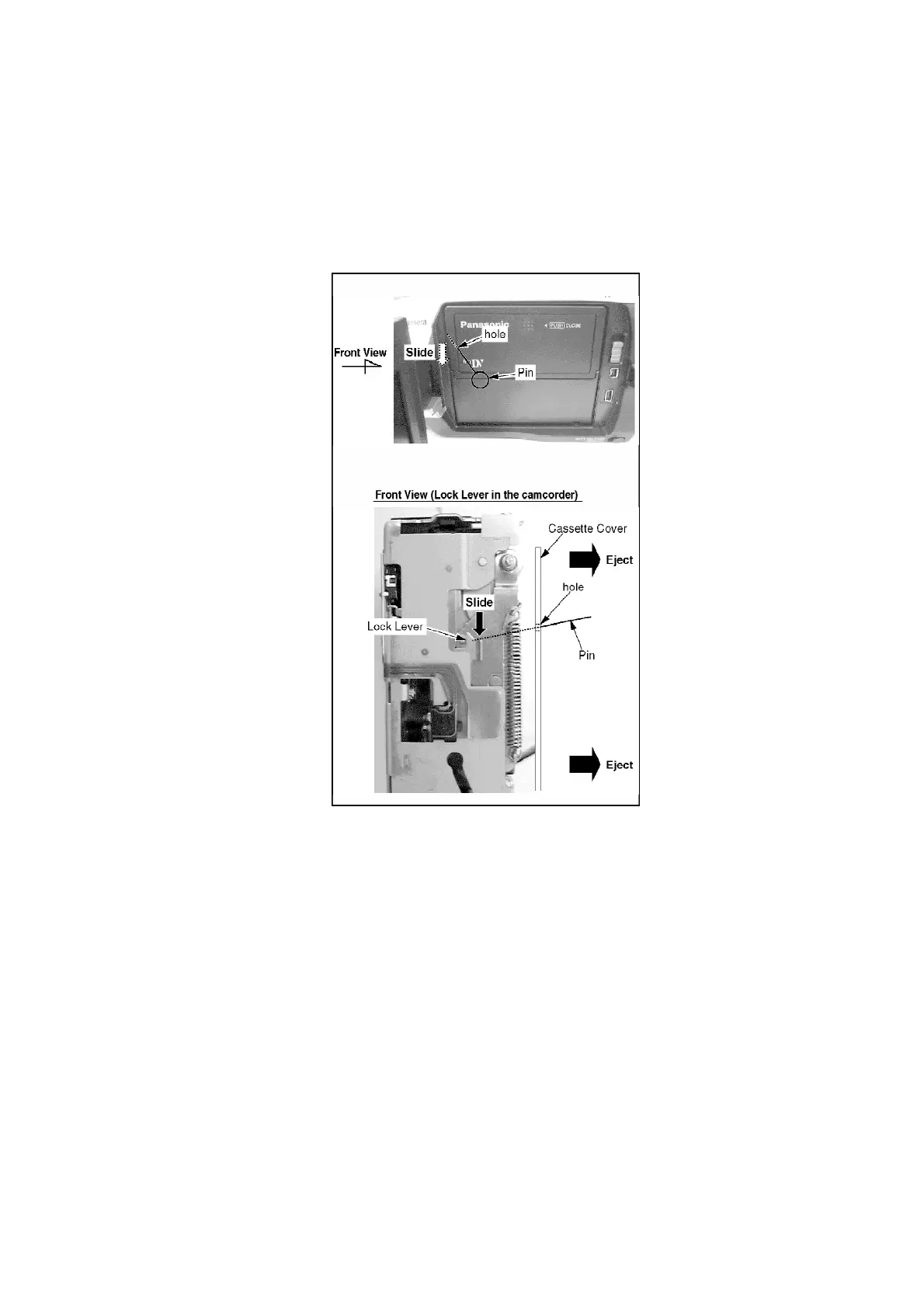

Cassette Cover.
2. Slide the Lock Lever of Mechanism Chassis Ass'y.
3. The Cassette Cover will open. (Eject)
Fig. 5
6.1.6. SIGNAL DESCRIPTION ON MEASURING BOARD FOR ELECTRICAL
ADJUSTMENT (VFK1308E)
A signal check can be performed using the Interface Board.
