6.1.4. METHOD FOR LOADING/UNLOADING OF MECHANISM
CAUTION:
If loading does not start after DC Power Supply is applied, DO NOT
continue to applying DC Power Supply.

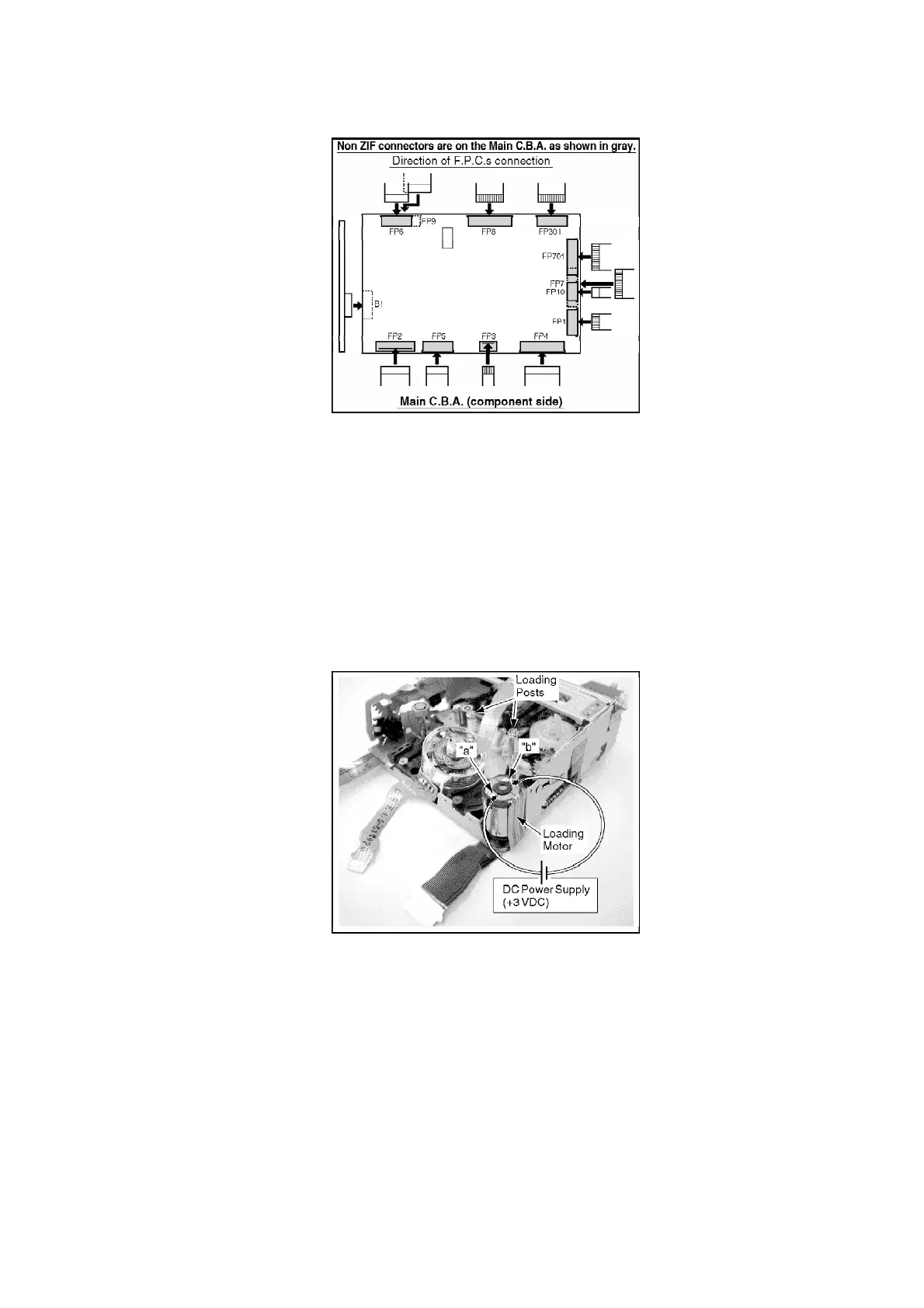

Apply +3 VDC Power Supply to the Loading Motor terminals.
Loading:
DC (-) to Portion "a," DC (+) to Portion "b"
Unloading:
DC (+) to Portion "a," DC (-) to Portion "b"
Fig. 4
6.1.5. METHOD FOR EJECTING WITH POWER OFF
CAUTION:
Make sure that a cassette tape is not in when this method is used,
or a cassette tape will be damaged. When a cassette tape is
jammed, DO NOT eject manually. Refer to "HOW TO REMOVE A
JAMMED TAPE."
1. Insert the Pin or Straightened Paper Clip into the hole on the
13
